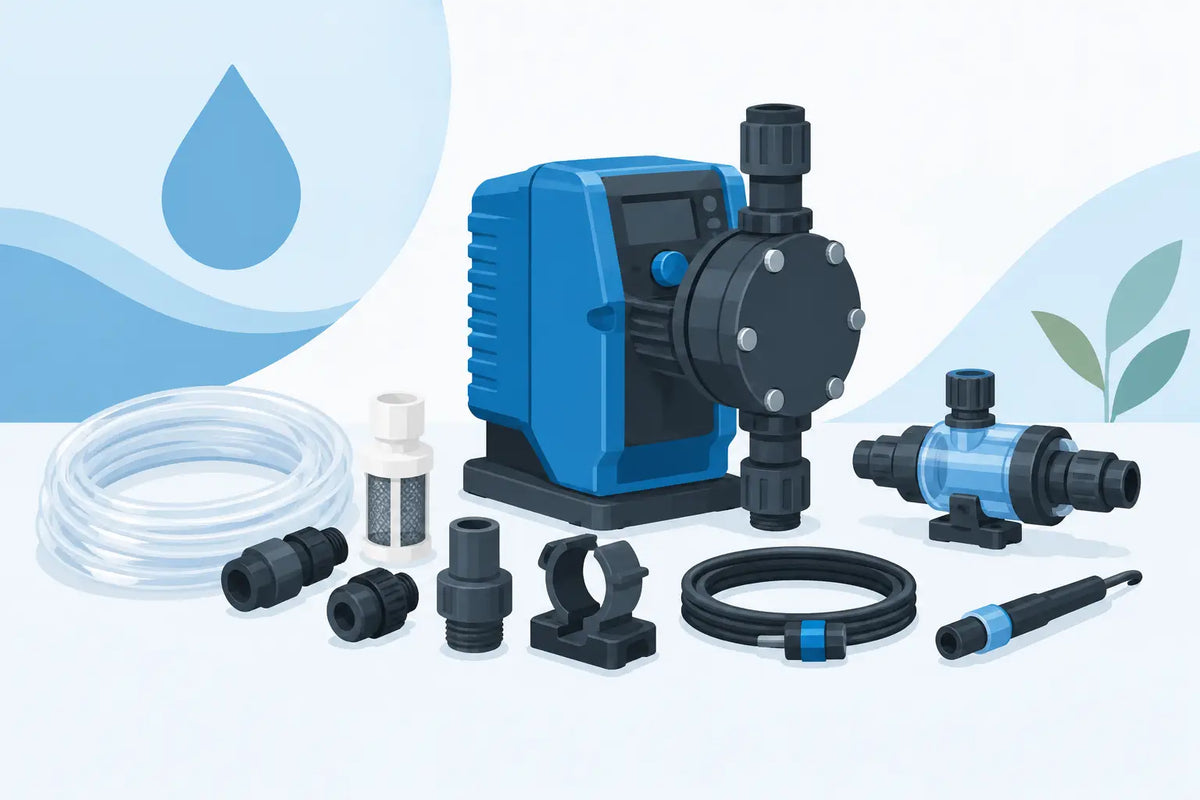

A dosing pump can be correctly sized, set to the right ratio and commissioned with care, yet still deliver inconsistent results if the surrounding hardware is wrong. Dosing pump accessories are not optional add-ons in chemical, fertiliser, medication or water-treatment systems. They control how product enters the pump, how it reaches the process line and how reliably the system can be checked and maintained.
For Australian farms, greenhouses, washdown systems and treatment plants, the right accessory set protects more than equipment. It helps prevent blocked lines, air-locks, inaccurate dosing, chemical leaks and avoidable downtime when inputs are needed most.
Start With the Application, Not the Accessory
The correct selection depends on the dosing method and operating conditions. A water-powered injector on a livestock water line has different requirements from an electric diaphragm pump feeding chlorine into a treatment skid, or a fertigation pump supplying concentrated nutrient to a greenhouse irrigation main.
Before choosing components, establish the chemical being dosed, the required flow or dose rate, operating pressure, pipe size, tank arrangement and expected duty cycle. Also confirm whether the pump draws from an open tank, drum or IBC, and whether the discharge point is under pressure. These details determine the material, connection type and pressure rating required.
Chemical compatibility is particularly critical. Acidic products, alkaline cleaners, chlorine-based disinfectants, liquid fertilisers and animal-health products can each require different wetted materials. PVC, polyethylene, polypropylene, PVDF, stainless steel and elastomers such as EPDM, Viton or Santoprene all have suitable applications, but none is universally suitable. The pump head, seals, tubing, valves and fittings must be considered as one chemical-contact path.
Dosing Pump Accessories for the Suction Side
The suction side is where many accuracy problems begin. A pump that pulls air instead of chemical cannot maintain a stable dose, regardless of its calibration setting.
A foot valve with an integrated strainer is often the first essential component. Positioned at the end of the suction line, it helps hold prime when the pump stops and prevents sediment, crystallised fertiliser or tank debris from entering check valves and diaphragms. The strainer must be cleaned regularly, particularly where products are mixed in bulk tanks or drawn from older drums.
Suction tubing should be selected for chemical compatibility and vacuum performance, not just because it fits the hose tail. Soft tubing can collapse under suction, while unsuitable material can harden, swell or crack after chemical exposure. Keep the suction run as short and straight as practical, and avoid unnecessary joins where air can enter.
A weighted suction assembly is useful where the chemical level changes substantially or the tank is mobile. It keeps the foot valve submerged without allowing it to sit directly in settled material at the bottom of the tank. In applications prone to sediment, position the inlet slightly above the base and allow adequate clearance from tank walls.
Control the Discharge and Injection Point
On the discharge side, the goal is to introduce chemical safely and consistently into a moving process stream. A simple fitting may be adequate for low-pressure applications, but pressurised irrigation, water-treatment and industrial lines usually need a purpose-designed injection fitting or injection quill.
An injection valve provides non-return protection at the point where chemical enters the main line. This prevents process water flowing backwards through the dosing line when the pump stops. It also helps maintain discharge pressure, which is necessary for some metering pumps to operate consistently.
Injection quills extend into the process pipe so chemical is introduced away from the pipe wall. This can improve mixing and reduce the risk of concentrated product attacking fittings or accumulating around the injection point. The suitable quill length, material and connection depend on pipe diameter, pressure and the chemical being used.
Where multiple chemicals are dosed into the same line, separate injection points are usually preferable. Mixing concentrated products before they reach the process stream can create precipitation, gas formation or a dangerous reaction. Placement should allow enough downstream distance for dilution and mixing before the water reaches livestock, crops or equipment.
Manage Pressure, Pulsation and Backflow
Pressure conditions affect both pump performance and component life. If the discharge pressure is too low or unstable, a metering pump may over-deliver, under-deliver or pulse unevenly. If pressure is excessive, tubing, valves and fittings can fail.
A back-pressure valve creates controlled resistance on the discharge line. It is commonly used where a pump doses into a low-pressure line, an open channel or a system with variable pressure. By providing a stable operating pressure, it can improve repeatability and prevent siphoning.
Pulsation dampeners are useful with diaphragm and other positive-displacement pumps where discharge pulses can affect measurement, injection quality or downstream instrumentation. They smooth the flow rather than increasing the pump's capacity. Their benefit is most noticeable on longer dosing lines, at higher stroke rates or where a steady chemical feed is required.
Pressure relief valves provide a controlled path for chemical if the discharge line is blocked or isolated. They are a protection device, not a substitute for correct pipework design. Relief flow should be returned safely to the chemical tank or another contained point, never discharged where it can create an exposure or environmental risk.
Calibration Columns Turn Assumptions Into Measured Output
A pump setting is not the same as an actual delivered dose. Chemical viscosity, line pressure, suction lift, wear, temperature and product concentration can all change real output. A calibration column provides a practical way to verify it.
The column is installed on the suction side and filled to a known volume. The operator runs the pump for a measured time and records the volume used. This confirms the actual flow rate under operating conditions and allows the pump speed or stroke setting to be adjusted accurately.
Calibration should be completed during commissioning, after seal or valve replacement, when changing chemical products and at scheduled intervals for critical applications. In livestock medication and drinking-water treatment, it is also sensible to check dosing after changes to water demand or line configuration.
The result is more than a compliance record. It provides early warning that a foot valve is fouled, a diaphragm is wearing, a suction line has an air leak or process pressure has changed.
Choose Fittings That Match the Whole System
Thread size alone is not enough when selecting fittings. Confirm the thread standard, tubing outside diameter, pipe material, pressure rating and seal arrangement. BSP fittings are common in Australian agricultural and industrial systems, but thread form and gender must still be checked before installation.
Tube connectors, reducing fittings, isolation valves and unions make systems easier to service, but each connection is also a potential leak point. Use fittings that are rated for the chemical and pressure, support pipework so it does not load the pump head, and avoid overtightening plastic threads. Where regular maintenance is expected, unions and isolation valves can reduce downtime significantly.
For outdoor installations, consider UV exposure, heat and physical damage. Protect small-bore tubing from machinery, stock, sharp edges and direct sunlight where practical. A neat installation is easier to inspect and less likely to suffer accidental damage.
Keep Critical Spares on Hand
Consumable parts are part of normal dosing system ownership. Check valves, diaphragms, seals, injection valve components and suction strainers all wear at different rates depending on chemical exposure and operating hours. Waiting for a failed seal before identifying the correct material can stop an otherwise straightforward operation.
Keeping compatible service kits on site is particularly worthwhile for remote farms, high-throughput washdown systems and treatment applications with limited downtime windows. Record the pump model, seal material, accessory sizes and chemical used so replacement parts can be selected without guesswork.
A regular inspection should look for cloudy or brittle tubing, weeping fittings, scale around injection points, restricted strainers and changes in pump sound or output. Small faults are usually easier and less expensive to correct before they affect dosing accuracy.
A Practical Selection Check
When specifying accessories, assess the complete installation rather than adding parts one at a time. Confirm the chemical compatibility of every wetted component, the maximum operating pressure, suction lift, tubing size, injection arrangement and maintenance access. Then consider the consequence of failure. A low-risk fertiliser transfer setup may need basic filtration and reliable fittings, while potable-water disinfection or livestock medication may justify calibration equipment, back-pressure control and readily available spares.
AgriDosing can help match accessories to pump ratio, flow range, chemical compatibility and the conditions at the installation point. The objective is not to add unnecessary hardware. It is to build a dosing line that remains accurate, serviceable and safe through real operating conditions.
The best time to address dosing accessories is before a pump is installed. A few correctly selected components can turn a capable pump into a dependable dosing system that operators can verify, maintain and trust.
