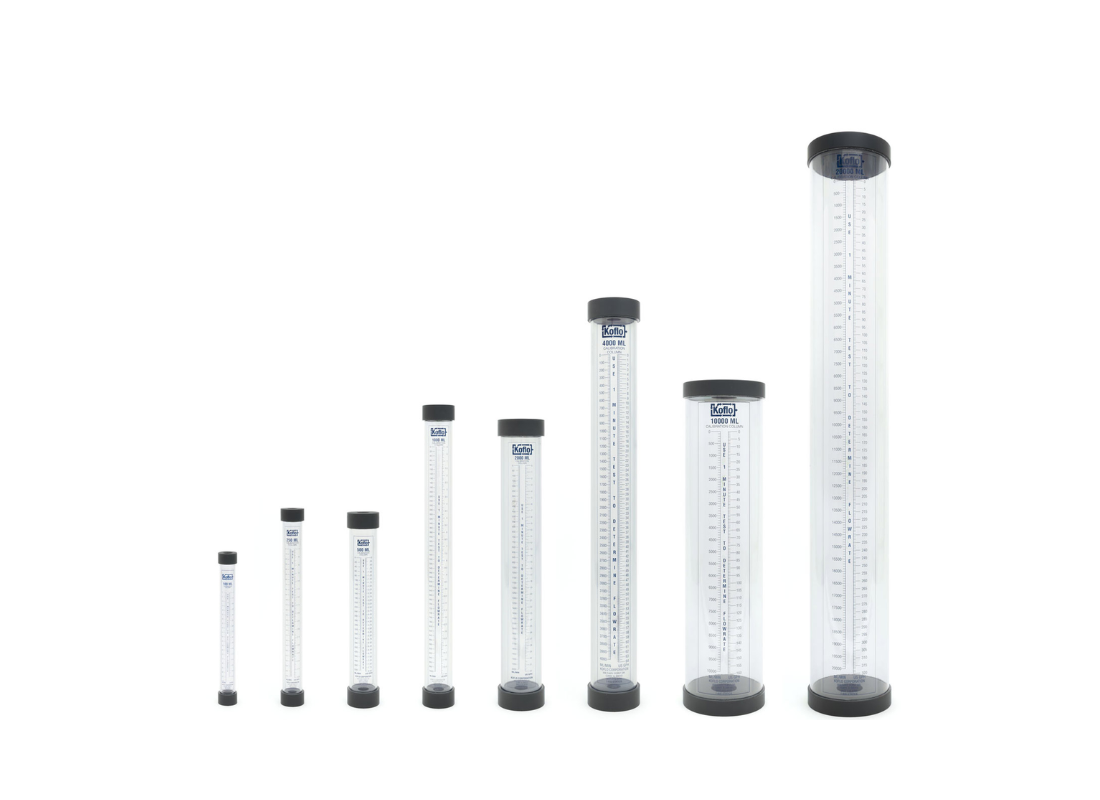

Koflo Clear PVC Dosing Pump Calibration Columns

Koflo Clear PVC Dosing Pump Calibration Columns

Koflo clear PVC calibration columns provide a simple and reliable way to measure and verify the actual flow rate of a chemical dosing pump. Installed on the pump’s suction side, the column allows operators to monitor chemical drawdown during a timed test and accurately adjust the pump output.

Manufactured from industrial-grade clear PVC, this economical fixed-top-cap model is intended for compatible mild and non-corrosive chemicals. Multiple capacities are available to suit different dosing-pump flow rates.

Capacity Maximum test range Fixed-cap model Connection
100 mL 100 mL/min 100 ML 1/2″ FNPT
250 mL 250 mL/min 250 ML 1/2″ FNPT
500 mL 500 mL/min 500 ML 3/4″ FNPT
1,000 mL 1,000 mL/min 1000 ML 3/4″ FNPT
2,000 mL 2,000 mL/min 2000 ML 1″ FNPT
4,000 mL 4,000 mL/min 4000 ML 1″ FNPT
10,000 mL 10,000 mL/min 10000 ML 2″ FNPT
20,000 mL 20,000 mL/min 20000 ML 2″ FNPT
