A pump that is accurate on paper can still be the wrong pump for the chemical, pressure and maintenance capacity on site. When comparing diaphragm vs peristaltic dosing, the practical question is not which technology is universally better. It is which one will deliver the required volume consistently, tolerate the chemical, and remain serviceable in your operating conditions.
Both pump types are positive-displacement dosing technologies. Both can provide controlled chemical injection for applications including fertigation, pH correction, livestock water medication, disinfection and process treatment. Their pumping action, wetted materials and maintenance requirements are very different, however. Those differences become significant when a system runs unattended, handles corrosive products or must dose very small volumes accurately.
How diaphragm dosing pumps work
A diaphragm dosing pump moves liquid by flexing a diaphragm back and forth within a pump head. On the suction stroke, liquid enters through a check valve. On the discharge stroke, the diaphragm pushes liquid through the outlet valve and into the dosing line.
Most chemical metering diaphragm pumps use an electric motor, solenoid or mechanical drive. Stroke length, stroke frequency or both can be adjusted to change the dosing rate. More advanced units can accept a pulse, 4-20 mA or other control signal, allowing the pump to follow water flow, pH measurement or a process controller.
The key advantage is that the chemical is contained behind the diaphragm and within the liquid end. There is no rotating seal in direct contact with the fluid. With the correct pump-head and seal material, diaphragm pumps are well suited to many acids, alkalis, coagulants, disinfectants, liquid fertilisers and water-treatment chemicals.
Diaphragm pumps are generally chosen where discharge pressure matters. They can inject against pressurised irrigation mains, water-treatment lines or process pipelines, provided the pump is correctly sized for the actual operating pressure. They are also a strong option where repeatable metering over long operating periods is required.
Where diaphragm pumps need attention
Check valves are central to diaphragm pump performance. Crystallisation, sediment, gas bubbles, poor suction conditions or debris can stop valves seating correctly. The result may be reduced output, erratic dosing or a pump that appears to run but does not inject chemical.
This does not make diaphragm technology unsuitable for difficult products. It means the installation needs to account for them. A short, adequately sized suction line, a suitable foot valve or strainer, injection check valve, calibration column where accuracy is critical, and routine flushing can make a substantial difference. Viscous products may also require a slower pump speed, larger suction line or a different liquid-end configuration.
How peristaltic dosing pumps work
A peristaltic pump moves liquid by compressing flexible tubing with a roller or shoe. As the rotor turns, the compression point travels along the tube, drawing product in behind it and pushing it forward ahead of it. The chemical contacts only the inside of the tube and, in some designs, the tube fittings.
That simple fluid path is the defining feature of peristaltic dosing. There are no suction or discharge check valves in contact with the chemical, and no diaphragm to separate the drive mechanism from the liquid. This makes peristaltic pumps particularly useful for products that cause conventional valves to foul, such as some polymer solutions, slurries, suspended solids, high-viscosity liquids and crystallising chemicals.
They are also valued for easy cleaning and containment. Replacing a tube is often quicker than dismantling a pump head and valves. For sanitation operations, laboratory-scale treatment systems and smaller process applications, that can reduce downtime and simplify routine servicing.
Peristaltic pumps can provide good volumetric consistency, especially when operating speed is controlled and the tube is in good condition. They can often self-prime well and may tolerate intermittent dry running better than many diaphragm pumps. That is useful where drums are changed regularly or chemical supply levels are not monitored continuously.
Where peristaltic pumps need attention
The tube is a consumable item, not a permanent wetted component. It fatigues with every revolution, and service life depends on speed, pressure, temperature, chemical compatibility and how often the pump runs. A tube that has softened, swollen, cracked or lost elasticity will affect flow and may eventually fail.
Peristaltic pumps are usually less suitable for high, continuous discharge pressures than a purpose-selected diaphragm metering pump. Pressure limits vary by model, tube material and duty cycle, so the pump must be assessed against the real line pressure, including pressure spikes. Long discharge lines, restrictive injection points and blocked fittings can all increase back pressure.
Some peristaltic pumps also produce a pulsing discharge. This is not always a problem, but it can matter when dosing into a low-flow line, feeding an analyser or maintaining a very stable concentration. A pulse dampener, appropriate line sizing or a different pump technology may be required.

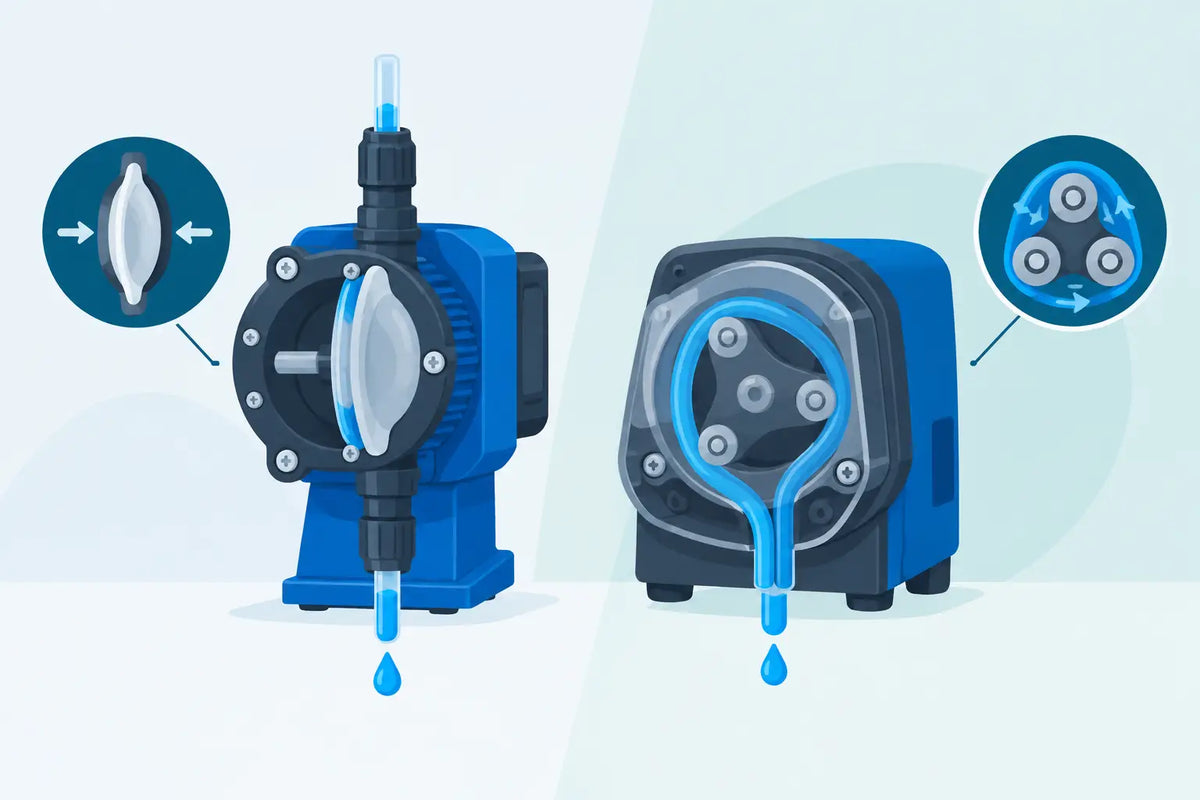

Diaphragm vs peristaltic dosing: the operating differences
For clean, low-viscosity chemicals injected into a pressurised line, a diaphragm metering pump is commonly the more capable long-term choice. It offers pressure capability, broad control options and accurate adjustment across a defined operating range. This suits pH correction, chlorine dosing, nutrient injection and many water-treatment duties.
For viscous, abrasive, gas-forming or solids-bearing products, peristaltic dosing can be the more forgiving option. Its valveless design avoids the common check-valve issues that can affect diaphragm pumps when products settle, crystallise or carry suspended material. It is often a practical fit for polymer dosing, sludge-related treatment chemicals and certain cleaning concentrates.
Chemical compatibility must be considered beyond the pump body. A diaphragm pump may need PVDF, PTFE, EPDM, FKM or another seal and wetted-material combination. A peristaltic pump requires tube material that resists the product while maintaining mechanical life. Sodium hypochlorite, strong acids, caustic products, solvents and oils can each demand different material selections.
Accuracy also depends on the entire system, not only the pump catalogue specification. A diaphragm pump with air trapped in the suction line, worn valves or fluctuating back pressure will not deliver its expected output. A peristaltic pump with an ageing tube will gradually change its flow rate. For either type, commissioning should include measuring actual output at the operating pressure and recalibrating after changes to chemical, tubing, suction conditions or settings.
Selecting the right pump for common applications
In fertigation, the decision often comes down to system pressure and chemical condition. Clear liquid fertilisers injected into a pressurised irrigation main are generally well suited to diaphragm metering pumps or water-powered injectors sized to flow and ratio. If the fertiliser is thick, contains solids or tends to settle, a peristaltic pump may reduce valve-related maintenance, but pressure and tube life need close attention.
For livestock medication, accuracy at low flow is often the priority. Water-powered injectors are frequently preferred where dosage must track water consumption, while electric diaphragm pumps can suit controlled tank or line dosing. Peristaltic pumps can be effective for certain concentrates and small batch applications, particularly where simple tube replacement is valuable. Always confirm that the medicine supplier permits the chosen materials and dosing method.
For water treatment, diaphragm pumps are widely used for chlorine, acid, alkali, coagulant and fluoride applications because they can inject against line pressure and integrate with controllers. Peristaltic pumps are often selected for polymers, sampling, low-pressure dosing and chemicals that foul check valves. The best option depends on chemical strength, pressure, flow range and whether the duty is continuous or intermittent.
In commercial cleaning and sanitation, peristaltic pumps are common where compact equipment, product isolation and quick service are useful. Diaphragm pumps become more attractive where chemicals must be injected into pressurised washdown water or where a controller needs to adjust dose precisely.
Questions to answer before ordering
A pump should be selected from measured site conditions rather than nominal assumptions. Before choosing between technologies, confirm the required dose rate at minimum and maximum demand, the injection-point pressure, and whether the chemical viscosity changes with temperature or storage time.
Also establish the chemical concentration, safety data requirements and all wetted-material compatibility. Consider whether the product releases gas, settles in the tank, crystallises on exposure to air or contains solids. Finally, be realistic about maintenance access. A pump in a remote pump shed should be selected for predictable service intervals and straightforward spare-parts support, not merely the lowest upfront cost.
AgriDosing can help match pump type, flow range, seal material and accessories to the application, including injection valves, calibration equipment, tubing and replacement components. Providing the chemical name, concentration, desired dose, line pressure and available power supply will lead to a more reliable recommendation.
The right choice is usually clear once the chemical behaviour and operating pressure are known. Specify for the hardest normal condition, verify the actual dose during commissioning, and schedule the small maintenance tasks that prevent a dosing issue from becoming a production interruption.
