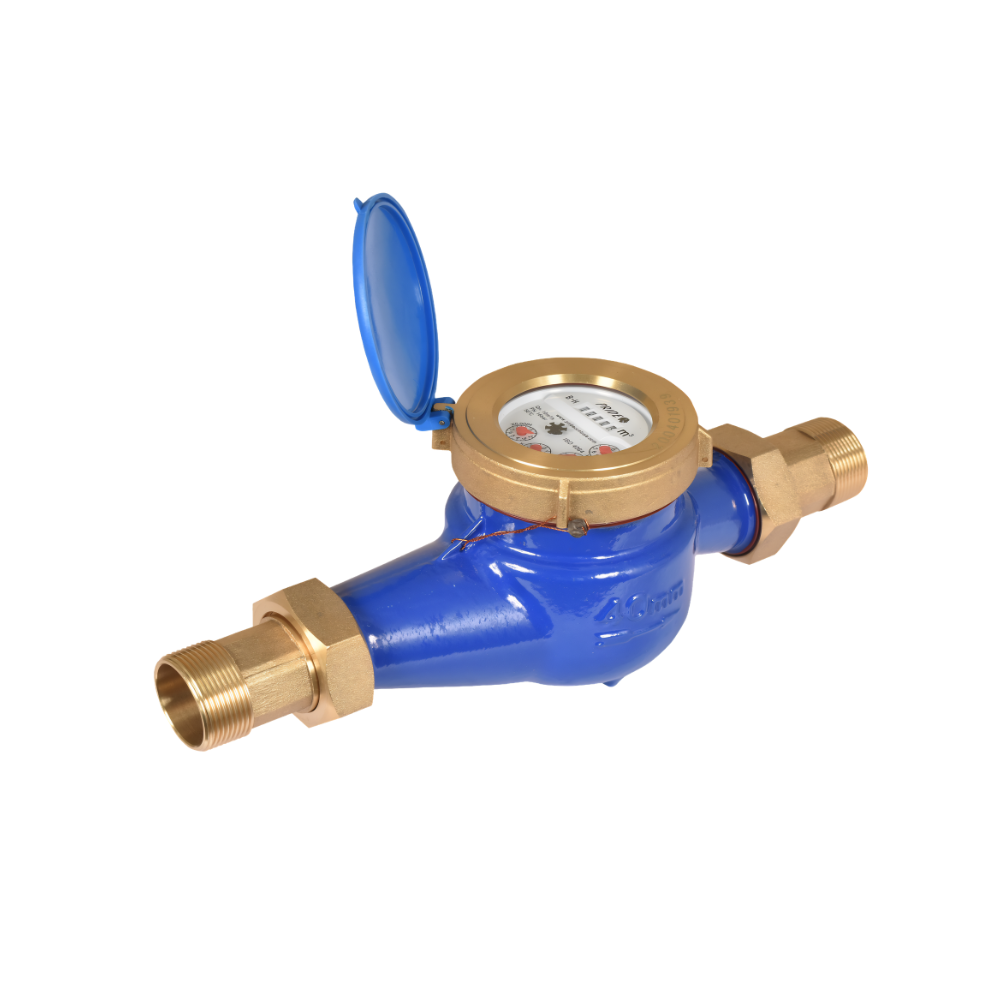

ARAD Multi-Jet 25mm BSP Inline Magnetic Water Meter
ARAD Multi-Jet 25mm BSP Inline Magnetic Water Meter - 25mm Water Meter Standard is backordered and will ship as soon as it is back in stock.
Description
Description
Multi-jet magnetic water meter, 25mm BSP inline connection, high accuracy, corrosion-resistant body, long service life
The ARAD Multi-Jet 25mm Magnetic Water Meter is a robust and high-precision inline flow meter designed for accurate water measurement in residential, agricultural, and industrial applications. Utilizing a proven multi-jet measuring principle, it ensures consistent performance and reliability even in hard water conditions.
Designed with only one moving part—the impeller—in contact with water, the meter minimizes wear and ensures long operational life. The magnetically driven sealed register prevents water ingress and fogging, maintaining clear readability over time.
Manufactured from corrosion-resistant copper alloy, the meter is built for durability in demanding environments. It supports a maximum working pressure of 10 bar and operating temperatures up to 50°C, making it suitable for a wide range of installations.
The 25mm BSP inline connection allows easy integration into pipeline systems. Optional dial configurations and output options provide flexibility for advanced metering and monitoring applications.
Key Features
- Multi-jet measuring principle for high accuracy
- 25mm (1”) BSP inline connection
- Magnetically driven sealed register (anti-fogging)
- Single moving part for reduced wear and long life
- Corrosion-resistant copper alloy body
- Suitable for domestic, agricultural, and industrial use
- Optional pulse/output configurations available
- Reliable performance in hard water conditions
Applications
- Residential water metering
- Agriculture and irrigation systems
- Industrial water monitoring
- Municipal water supply
- Commercial buildings
Technical Specifications
- Model: M25
- Nominal Size: 25 mm (1”)
- Connection Type: BSP threaded
- Maximum Working Pressure: 10 Bar
- Maximum Working Temperature: 50°C
- Meter Body Material: Corrosion-resistant copper alloy
- Optional Body Material: Reinforced composite
- Measurement Principle: Multi-jet magnetic drive
- Register Type: Magnetically coupled sealed register
- Nominal Flow Rate (Q3): 4 m³/h
- Maximum Flow Rate (Q4): 5 m³/h
- Minimum Flow Rate (Q1): 0.080 m³/h
- Accuracy:
±2% (Q2 to Q4)
±5% (Q1 to Q2) - Installation: Horizontal, dial face up
