ARAD Octave Ultrasonic SST 50mm Threaded Battery Operated Digital Water Meter
ARAD Octave Ultrasonic SST 50mm Threaded Battery Operated Digital Water Meter is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
ARAD products are covered by a 12-month manufacturer’s warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired, replaced or credited if a manufacturing defect is confirmed.
CONDITIONS
- Product must be installed, used and maintained as per manufacturer instructions.
- Proof of purchase is required for all warranty claims.
- Customer may be responsible for return postage and assessment costs.
- Written notice of the defect may be required within a reasonable time after discovery.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or improper application
- Tampering, modification or unauthorised repair
- Accidents, vandalism or external damage
- Environmental damage or conditions outside the product’s control
- Damage caused by water impurities, debris, scale or poor water quality
- Incorrect product selection or use for an unsuitable application
REQUIREMENTS
The product must be correctly selected, installed and operated within ARAD’s specified conditions. A suitable upstream filter or strainer is recommended where water quality may contain sand, grit, debris or suspended solids.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
ARAD Octave Ultrasonic SST 50mm Threaded Battery Operated Digital W...
ARAD Octave Ultrasonic SST 50mm Threaded Battery Operated Digital Water Meter is backordered and will ship as soon as it is back in stock.
Description
Description

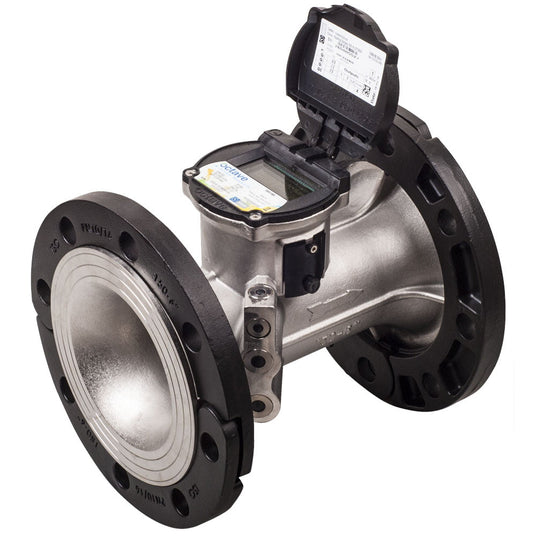

Ultrasonic digital water meter, 50mm Threaded SST body, battery powered, no moving parts, high accuracy, long-life performance
The ARAD Octave Ultrasonic SST 50mm Water Meter is a high-precision digital flow meter designed for advanced water measurement in municipal, industrial, and agricultural applications. Utilizing ultrasonic transit-time technology, it delivers highly accurate readings with no moving parts, ensuring zero mechanical wear and long-term reliability.
Designed for superior performance, the meter provides exceptional sensitivity at low flow rates while maintaining accuracy across a wide measuring range. Its stainless steel (SST) construction ensures durability and resistance in demanding environments, including aggressive water conditions.
Powered by an internal lithium battery with up to 15 years of operational life, the Octave meter eliminates the need for external power sources. The integrated digital display offers clear readings of flow rate, total volume, and system status, with programmable units and data formats.
Engineered for smart water management, the meter supports bi-directional measurement, advanced data logging, and multiple output options including pulse, analog, and communication protocols such as Modbus and M-Bus. The IP68-rated enclosure ensures full protection against water and dust ingress, making it ideal for underground and flooded installations.

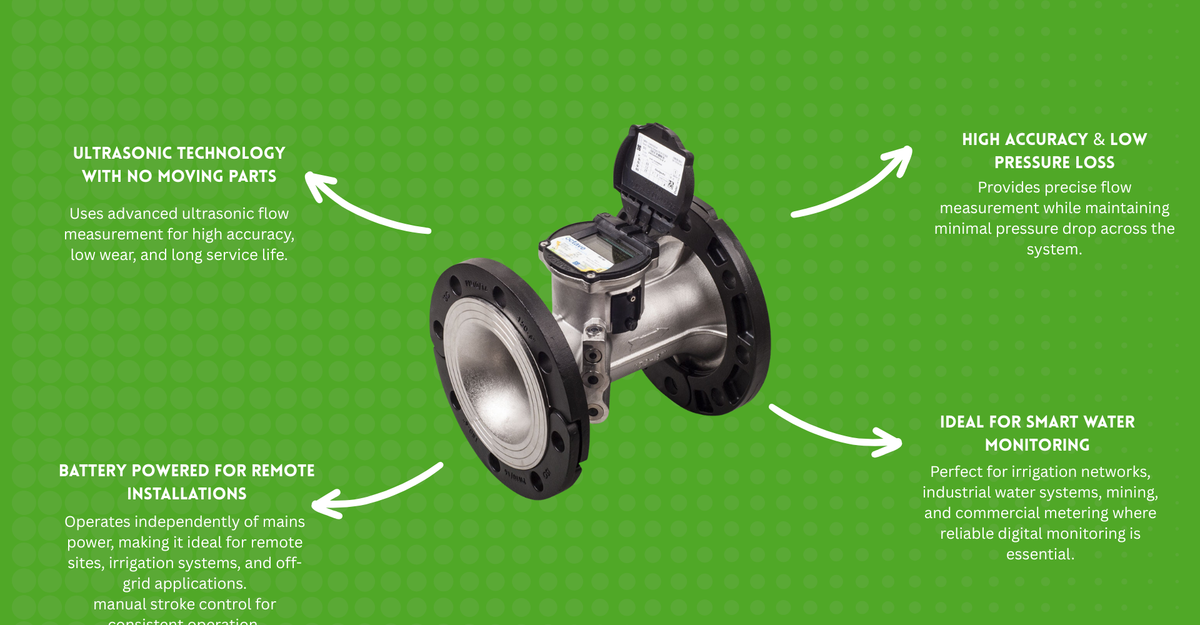

Key Features
- Ultrasonic measurement technology (no moving parts)
- 50mm (2”) threaded SST construction
- Battery powered with up to 15 years life
- High accuracy across wide flow range
- Excellent low flow sensitivity
- Bi-directional flow measurement
- Integrated digital display with programmable units
- Advanced data logging and alarm features
- Multiple outputs: pulse, analog, Modbus, M-Bus
- IP68 waterproof and submersible design
Applications
- Municipal water distribution
- Industrial water systems
- Agriculture and irrigation
- District metering areas (DMA)
- Smart water management systems
Technical Specifications
- Model: Octave SST
- Nominal Size: 50 mm (2”)
- Connection Type: threaded
- Measurement Principle: Ultrasonic (Transit-Time)
- Maximum Working Pressure: 16 Bar
- Maximum Liquid Temperature: 0.1 – 50°C
- Accuracy Class: ISO 4064 Class 2
- Minimum Flow Rate (Q1): 0.08 m³/h
- Transitional Flow Rate (Q2): 0.125 m³/h
- Nominal Flow Rate (Q3): 40 m³/h
- Maximum Flow Rate (Q4): 50 m³/h
- Starting Flow: 0.025 m³/h
- R Value: 500
- Power Supply: Internal Lithium Battery
- Battery Life: Up to 15 years
- Display: Integrated digital LCD
- Protection Class: IP68
- Outputs: Pulse, Analog (4–20 mA), Digital, Modbus, M-Bus
- Operating Temperature: -25°C to +55°C
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
ARAD Octave Battery Powered Digital Ultrasonic Water Meters
The ARAD Octave Series is a range of battery-powered digital ultrasonic water meters designed for highly accurate water measurement in agricultural, commercial, and industrial applications. Using advanced ultrasonic technology with no moving internal parts, the Octave provides exceptional measurement accuracy, low pressure loss, and long-term reliability even in demanding water conditions.
The Octave range is ideal for irrigation systems, water distribution networks, mining, industrial water monitoring, and remote metering applications where precision, durability, and data capability are critical. With a fully electronic design, digital display, and battery-powered operation, the Octave Series delivers advanced water monitoring without the maintenance associated with traditional mechanical meters.
Octave – Ultrasonic Water Meter
OCTAVE – Revolutionary, precise and super reliable ultrasonic bulk water meter.
With superior hydraulic and batteries that last up to 15 years, the Octave is today’s best choice for bulk meters.
- Dual beam ultrasonic technology for precise and ultra reliable metering
- No moving parts
- Excellent long-term stability and reliability
- Battery powered -up to 15 years life expectancy
- Rugged mechanical design – Submersible (IP68)
- Extremely sensitive and accurate in low flows
- Bi-directional – including bi-directional outputs (digital and analog)
- Flexible data formats including flow directions, flow rates and volumes
- AMR and cellular networks ready with alerts and statistics features
- Miltiline LCD
- Programmable Display (units and outputs resolution)
- EMI / RFI Protection
