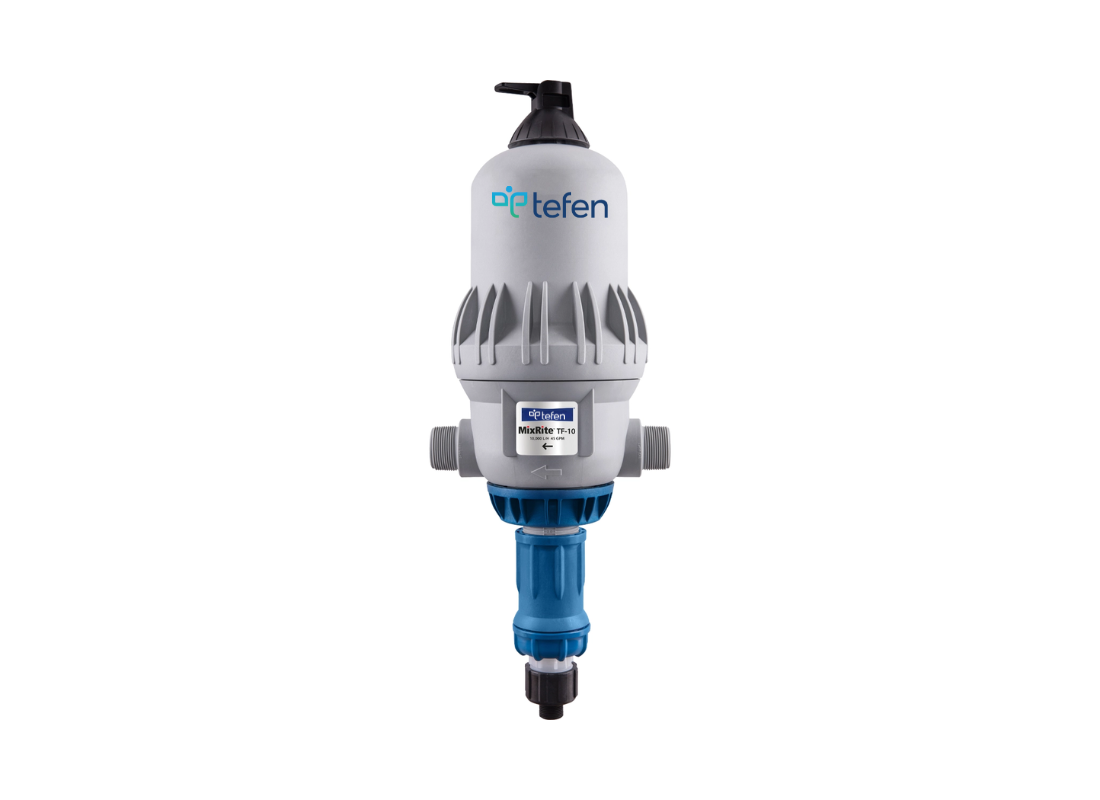

Tefen MixRite TF10 Standard 0.2–2% Water Powered Dosing Pump
Tefen MixRite TF10 Standard 0.2–2% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Tefen MixRite TF10 Standard 0.2–2% Water Powered Dosing Pump
Tefen MixRite TF10 Standard 0.2–2% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
The Tefen MixRite TF10 Standard Water Powered Dosing Pump is a high-capacity, non-electric proportional injector designed to deliver precise chemical dosing directly into water lines. It operates using water pressure, ensuring consistent and accurate injection regardless of fluctuations in flow rate or pressure.
Built for durability and performance, the TF10 model is ideal for larger systems requiring reliable dosing across a wide range of industrial and agricultural applications.
Key Features
- Water-powered operation – no electricity required
- Proportional dosing based on water flow rate
- High accuracy and repeatability
- Easy installation, operation, and maintenance
- Durable construction for chemical resistance
- Consistent performance under varying pressure conditions
Applications
- Irrigation
- Chlorine
- Livestock
Why Choose This Product?
The TF10 offers high flow capacity and precise dosing performance, making it suitable for demanding environments. Its non-electric operation ensures reliability while minimizing maintenance and operational complexity.
Specifications
- Model Code: TF10
- Flow Range: 0.1 - 10 m³/h
- Dosing Ratio: 0.2 - 2%
- Pressure Range: 1 - 8 Bar
- pH Range: 5-9
- Connection Size: 50mm (1 1/2") BSP
- Seal Type: NBR Buna (Standard)
- Body Material: Polypropylene
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

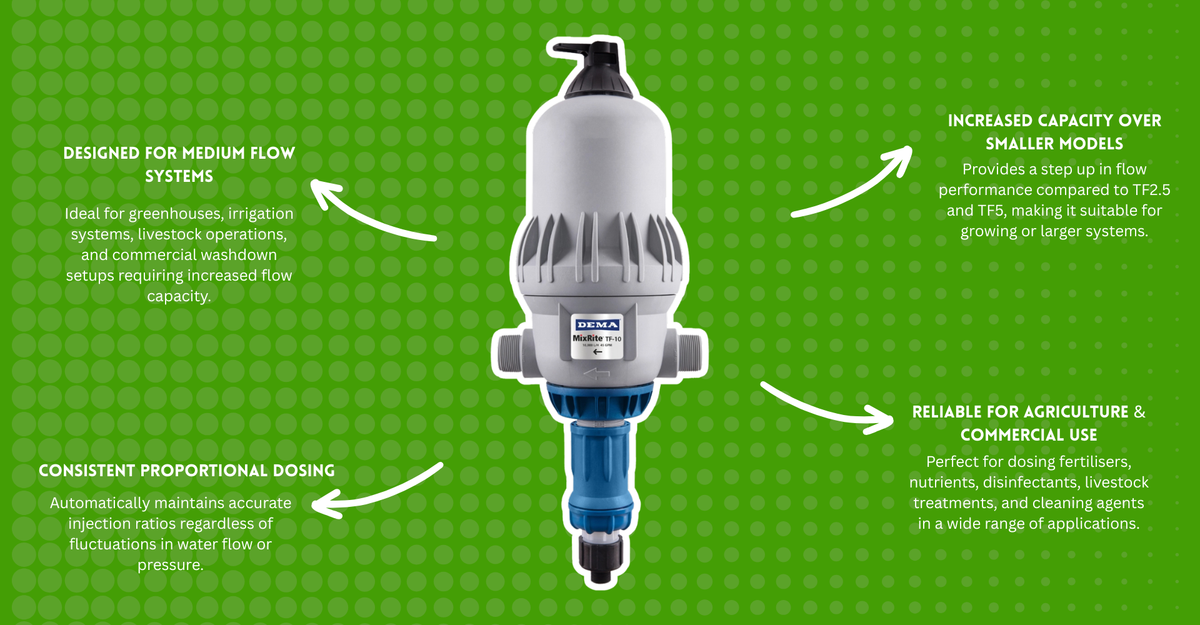

MixRite TF10 Water-Powered Dosing Pump
The MixRite TF10 is a water-powered dosing pump designed for medium flow applications, delivering reliable and accurate chemical injection across a wide range of agricultural and commercial systems. Powered entirely by water flow, the TF10 automatically draws and mixes liquid concentrate into the water line at a consistent proportional rate, with no electricity required.
The TF10 is well suited to larger greenhouse systems, irrigation networks, livestock facilities, washdown stations, and light industrial dosing applications where higher flow capacity is needed compared to smaller models. It offers a strong balance between performance, durability, and ease of installation, making it a popular choice for expanding systems.
Compare the Mixrite TF10 range
Compare the full Mixrite TF10 range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||
|---|---|---|---|
| By | |||
| By | Mixrite | Mixrite | Mixrite |
| Model Code | |||
| Model Code | |||
| Price | |||
| Price |
Regular price
$4,385.00 AUD
Unit price
|
Regular price
$3,835.00 AUD
Unit price
|
Regular price
$4,340.00 AUD
Unit price
|
| Flow Range | |||
| Flow Range | |||
| Dosing Ratio | |||
| Dosing Ratio | |||
| Pressure Range | |||
| Pressure Range | |||
| Seal Type | |||
| Seal Type | |||
| pH Range | |||
| pH Range | |||
| Connection Size | |||
| Connection Size | |||
| Body Material | |||
| Body Material | |||
How a Mixrite Works
A MixRite operates using the flow and pressure of water to power an internal hydraulic motor, eliminating the need for electricity. As water enters the unit, it drives a piston mechanism that creates suction, drawing liquid concentrate from a chemical container. This concentrate is then injected and mixed directly into the water line at a consistent, pre-set ratio.
The dosing ratio is adjusted manually using the control dial on the unit, allowing the user to fine-tune how much product is injected. As water flow increases or decreases, the MixRite automatically maintains the same proportional mix, ensuring accurate and reliable dosing at all times. This makes it ideal for applications such as fertigation, livestock medication, sanitation, and water treatment where consistency is critical.
