Mixtron MX150-VF 0.5–4% Water Powered Dosing Pump
Mixtron MX150-VF 0.5–4% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Mixtron MX150-VF 0.5–4% Water Powered Dosing Pump
Mixtron MX150-VF 0.5–4% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Description
Description
Water-powered dosing pump, 0.5–4% dosing ratio, up to 1,500 l/hr flow, high chemical resistance materials, no electricity required

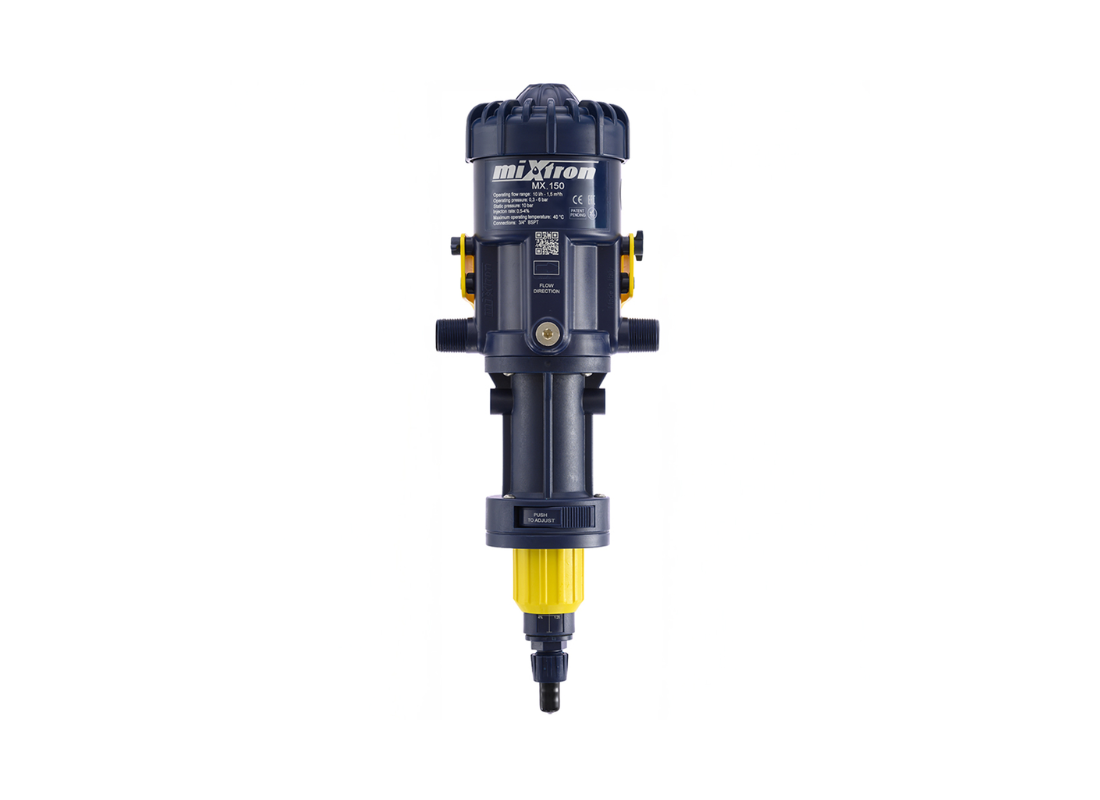

The Mixtron MX150-VF is a water-powered dosing pump designed for accurate proportional chemical injection without the need for electrical power. Using water flow as its driving force, it offers a reliable and efficient dosing solution for industrial, agricultural, and water treatment applications.
With an adjustable dosing ratio from 0.5% to 4% (1:200 to 1:25), this model is ideal for medium to high concentration chemical dosing. It supports a maximum water flow rate of up to 1,500 L/h, ensuring stable and consistent performance across varying operating conditions.
Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump provides excellent resistance to chemicals and wear. The VF Viton (Acidic) seals ensure compatibility with acidic solutions, offering long-lasting durability.
Designed for consistent performance, the MX150-VF delivers dosing accuracy of ±5% and repeatability of ±3%, ensuring reliable and precise chemical injection with minimal maintenance.
Key Features
- Water-powered operation (no electricity required)
- Adjustable dosing ratio: 0.5% – 4%
- Max flow rate: 1,500 L/h
- VF Viton (Acidic) seals for acidic compatibility
- High chemical resistance materials (POM, PP, HDPE, PA12)
- Accurate proportional dosing (±5% accuracy)
- Compact and durable design
- 3/4” BSPT connection
Applications
- Water treatment systems
- Acid dosing applications
- Cleaning and sanitation
- Agriculture & fertigation
- Car wash systems
- Industrial processing
Technical Specifications
- Model: MX150-VF
- Dosing Ratio: 0.5% – 4% (1:200 – 1:25)
- Max Flow Rate: 1,500 L/hr
- Min Flow Rate: 10 L/hr
- Operating Pressure: 0.3 – 6 Bar
- Max Static Pressure: 10 Bar
- Operating Temperature: 5 – 40°C
- Seal Material: VF Viton (Acidic)
- Plastic Materials: POM, PP, HDPE, PA12
- Metal Components: AISI 316, Duplex
- Connection Size: 3/4” BSPT
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Mixtron MX150 Water Powered Dosing Pumps
The Mixtron MX150 is a versatile range of water powered dosing pumps built for accurate and reliable injection of fertilisers, chemicals, and additives into small to medium flow water systems. Stepping up from entry-level models, the MX150 delivers increased flow capacity while maintaining the same no-electricity, proportional dosing performance Mixtron is known for worldwide.
Designed for irrigation systems, greenhouses, hydroponics, horticulture, and light agricultural applications, the MX150 offers a dependable dosing solution where higher flow demands are required without the complexity of electronic controls. Each pump automatically adjusts concentrate injection in proportion to water flow, ensuring consistent dosing ratios are maintained across varying system conditions. Manufactured in Italy and trusted by growers globally, the Mixtron MX150 range combines durability, simplicity, and cost-effective performance in a compact, easy-to-install design.
Compare the MX150 Series Range
Compare the full Mixtron MX150 range to find the right water powered dosing pump for your required dosing ratio, flow rate, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Mixtron | Mixtron | Mixtron | Mixtron | Mixtron |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$965.00 AUD
Unit price
|
Regular price
$1,025.00 AUD
Unit price
|
Regular price
$1,360.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,040.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How a Mixtron Water Powered Dosing Pump Works
A Mixtron water powered dosing pump operates using the energy of flowing water to drive a proportional injection mechanism — no electricity, no external power source required.
As water flows through the pump body, it drives an internal piston that simultaneously draws liquid concentrate from a connected supply tank. The concentrate is then injected directly into the water stream in a fixed ratio relative to water flow — so the more water that flows, the more concentrate is dosed, always maintaining the same ratio.
The dosing ratio is set manually by adjusting the control dial on the pump body, allowing the user to select the desired concentration from within the pump's rated range. Once set, the ratio remains consistent regardless of fluctuations in water pressure or flow, making it a reliable hands-free solution for fertiliser injection, chemical dosing, and nutrient delivery across small to medium flow systems.
