Tefen MixRite TF5 Chlorine 0.2–2% Water Powered Dosing Pump
Tefen MixRite TF5 Chlorine 0.2–2% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Tefen MixRite TF5 Chlorine 0.2–2% Water Powered Dosing Pump
Tefen MixRite TF5 Chlorine 0.2–2% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description

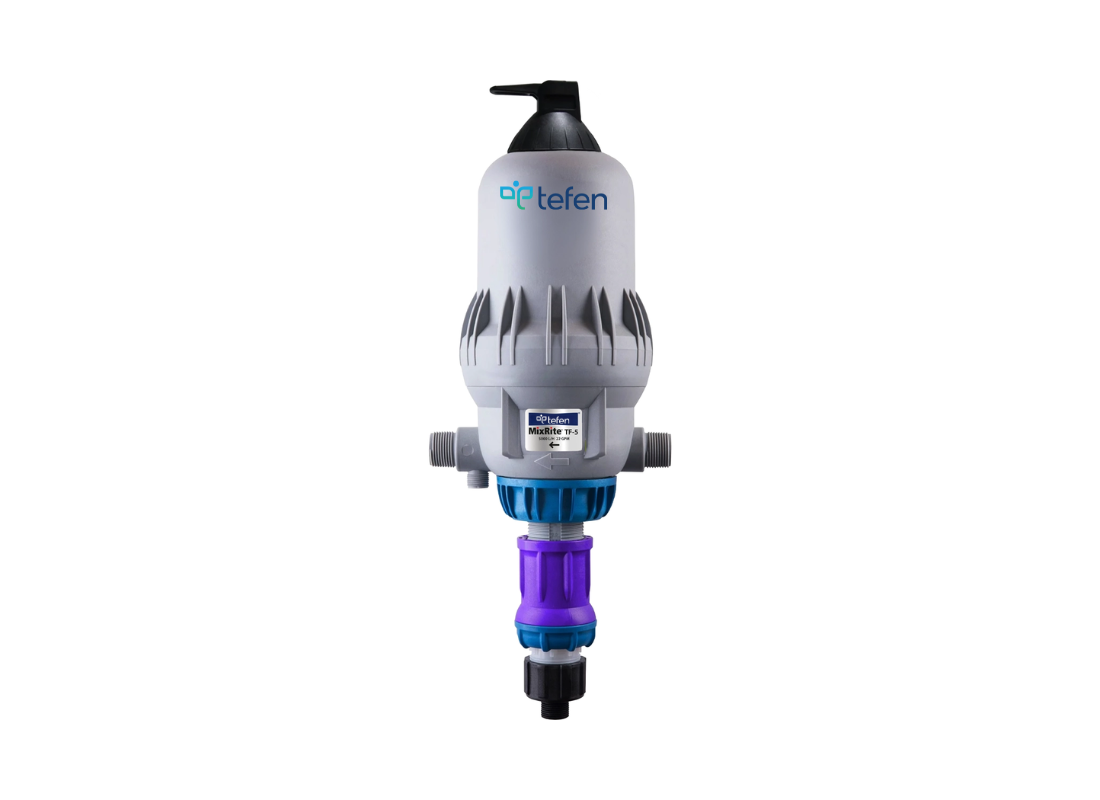

The Tefen MixRite TF5 Chlorine Water Powered Dosing Pump is a non-electric proportional injector designed for accurate chlorine dosing in water treatment systems. It operates using water pressure, ensuring consistent and precise chemical injection regardless of flow or pressure variations.
Built with chemical-resistant components, this model is suitable for handling chlorine and other aggressive chemicals while maintaining reliable performance in demanding environments.
Key Features
- Water-powered operation – no electricity required
- Proportional dosing based on water flow rate
- High accuracy and repeatability
- Designed for chlorine and chemical dosing
- Durable construction for chemical resistance
- Consistent performance under varying pressure conditions
Applications
- Irrigation
- Chlorine
- Livestock
Why Choose This Product?
The TF5 Chlorine model is specifically designed for applications requiring safe and reliable chlorine injection. It ensures efficient dosing performance while maintaining durability in chemically aggressive environments.
Specifications
- Model Code: TF5
- Flow Range: 100 - 5000 L/h
- Dosing Ratio: 0.2 - 2%
- Pressure Range: 1 - 8 Bar
- pH Range: 1 - 7
- Connection Size: 32mm (1") BSP
- Seal Type: VF Viton (Acidic)
- Body Material: Polypropylene
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
MixRite TF5 Water-Powered Dosing Pump
The MixRite TF5 is a water-powered dosing pump designed for low to medium flow applications, offering reliable and consistent chemical injection without the need for electricity. Powered entirely by water flow, the TF5 automatically draws liquid concentrate and mixes it proportionally into the water line, ensuring accurate dosing across a wide range of uses.
The TF5 is commonly used in greenhouses, nurseries, small irrigation systems, livestock water medication, and washdown applications where dependable performance and ease of use are essential. It provides a step up in capacity from smaller entry-level units while maintaining a compact and easy-to-install design.
Compare the Mixrite TF5 range
Compare the full Mixrite TF5 range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||
|---|---|---|---|
| By | |||
| By | Mixrite | Mixrite | Mixrite |
| Model Code | |||
| Model Code | |||
| Price | |||
| Price |
Regular price
$4,150.00 AUD
Unit price
|
Regular price
$3,055.00 AUD
Unit price
|
Regular price
$3,910.00 AUD
Unit price
|
| Flow Range | |||
| Flow Range | |||
| Dosing Ratio | |||
| Dosing Ratio | |||
| Pressure Range | |||
| Pressure Range | |||
| Seal Type | |||
| Seal Type | |||
| pH Range | |||
| pH Range | |||
| Connection Size | |||
| Connection Size | |||
| Body Material | |||
| Body Material | |||
How a Mixrite Works
A MixRite operates using the flow and pressure of water to power an internal hydraulic motor, eliminating the need for electricity. As water enters the unit, it drives a piston mechanism that creates suction, drawing liquid concentrate from a chemical container. This concentrate is then injected and mixed directly into the water line at a consistent, pre-set ratio.
The dosing ratio is adjusted manually using the control dial on the unit, allowing the user to fine-tune how much product is injected. As water flow increases or decreases, the MixRite automatically maintains the same proportional mix, ensuring accurate and reliable dosing at all times. This makes it ideal for applications such as fertigation, livestock medication, sanitation, and water treatment where consistency is critical.
