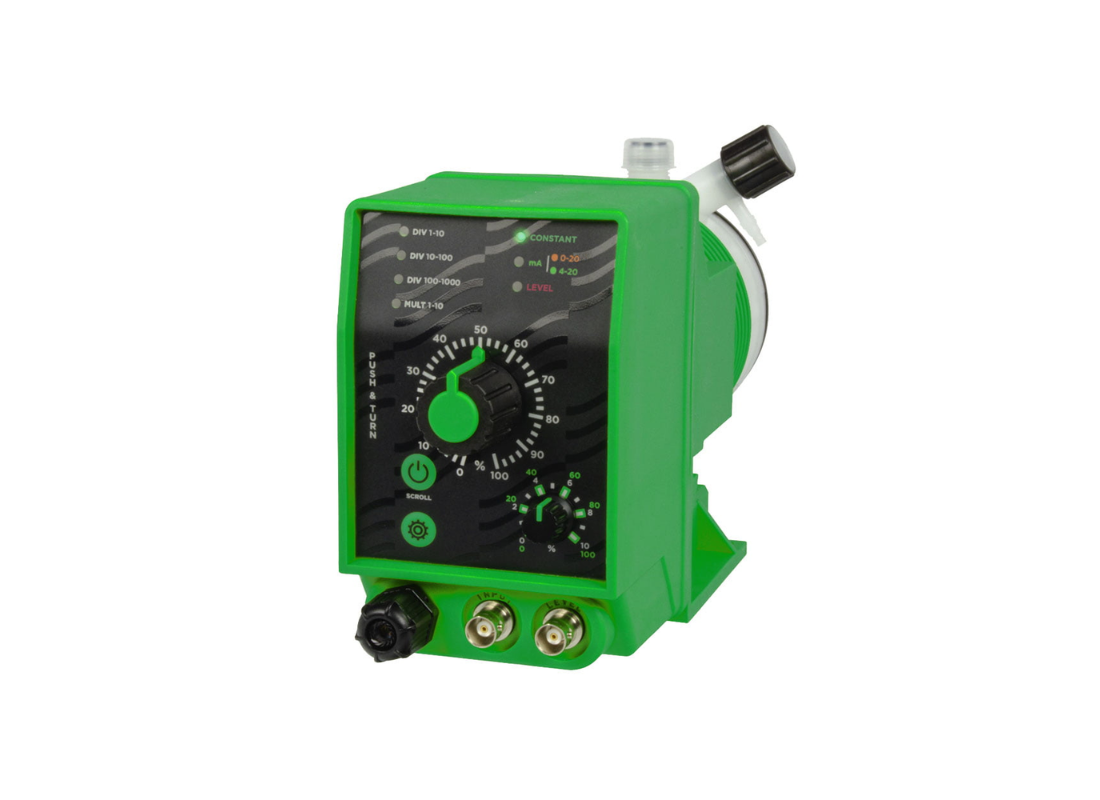

EMEC KPLUS 05-10-EPDM Standard Foot Mounted Electronic Chemical Dosing Pump
EMEC KPLUS 05-10-EPDM Standard Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC KPLUS 05-10-EPDM Standard Foot Mounted Electronic Chemical Dos...
EMEC KPLUS 05-10-EPDM Standard Foot Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, foot mount, 10 l/hr @ 5 bar, PVDF pump head, analog control, includes installation kit
The EMEC KPLUS 05-10-EPDM is a solenoid-driven electronic dosing pump from the K Series, designed for accurate and reliable chemical dosing in industrial and water treatment applications. Its standard foot-mounted design ensures stable installation and consistent performance in continuous-duty environments.
With a dosing capacity of up to 10 L/h at 5 bar, this model is ideal for moderate flow and pressure dosing systems. The PVDF pump head offers excellent resistance to a wide range of chemicals, while EPDM (Alkaline) seals ensure compatibility with alkaline and water-based solutions, delivering long-term durability.
The K PLUS analog control system enables flexible dosing adjustment, including constant dosing, multiplier/divider modes, and mA signal input compatibility. This allows precise and adaptable dosing control tailored to system requirements.
Built with a high-strength PTFE diaphragm and a robust solenoid-driven mechanism, the pump ensures consistent dosing accuracy, minimal maintenance, and extended service life.
Key Features
- Analog adjustable dosing control
- 10 L/h flow capacity at 5 bar
- PVDF pump head for high chemical resistance
- EPDM (Alkaline) seals for alkaline compatibility
- Solenoid-driven dosing mechanism
- Mechanical stroke adjustment (0–100%)
- Manual or self-venting options
- Standard foot-mounted design
Applications
- Water treatment & disinfection
- Alkaline chemical dosing systems
- pH correction systems
- Cooling towers
- Industrial processing
- Wastewater treatment
Technical Specifications
- Model: KPLUS 05-10-EPDM
- Max Flow Rate: 10 L/hr
- Max Pressure: 5 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Analog (K PLUS)
- Pump Head Material: PVDF
- Seal Material: EPDM (Alkaline)
- Diaphragm: PTFE
- Mounting: Foot mounted
- Venting: Manual or Self (optional)
- Power Supply: 12–24 VDC / 24 VAC / 115 VAC / 230 VAC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC K PLUS Series Standard Foot Mount Chemical Dosing Pumps
The EMEC K PLUS Series is a range of standard solenoid-driven dosing pumps with a foot-mounted design, built for reliable and consistent chemical injection in fixed installations. Designed for mounting on tanks, frames, or dosing skids, the K PLUS range offers a practical and durable solution for everyday dosing applications where simplicity and dependability are key.
The K PLUS Series is commonly used in water treatment, irrigation systems, pools, sanitation, and general industrial dosing where stable and accurate chemical injection is required. With straightforward analogue control, adjustable output, and robust construction, it provides a cost-effective option for users who need reliable performance without advanced control features.
Compare the K PLUS Series Range
Compare the full EMEC K PLUS range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$1,450.00 AUD
Unit price
|
Regular price
$1,450.00 AUD
Unit price
|
Regular price
$1,450.00 AUD
Unit price
|
Regular price
$1,450.00 AUD
Unit price
|
Regular price
$1,450.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
