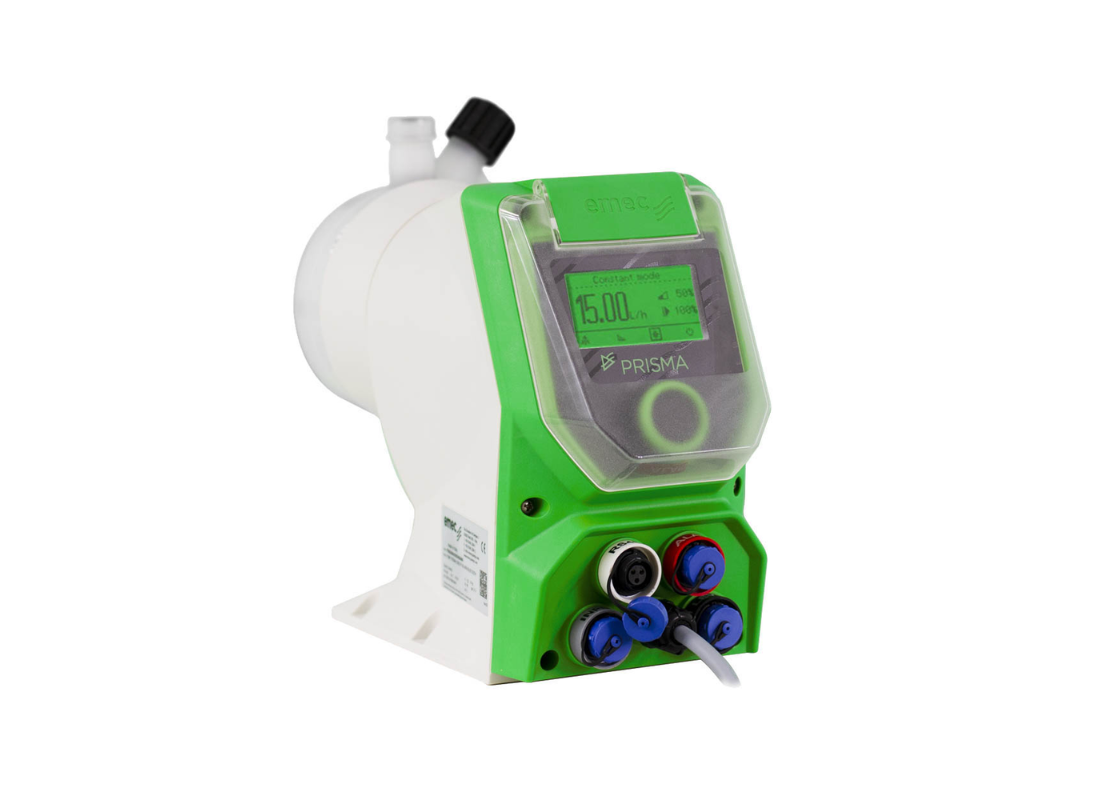

EMEC PRISMA 20-05-VF Digital Stepper Motor Chemical Dosing Pump
EMEC PRISMA 20-05-VF Digital Stepper Motor Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Description
Description
Stepper motor dosing pump, 5 l/hr @ 20 bar, PVDF pump head, digital control, PTFE diaphragm, VF Viton seals
The EMEC PRISMA 20-05-VF is a high-precision digital stepper motor chemical dosing pump engineered for reliable and accurate chemical injection in high-pressure industrial and water treatment applications. Utilizing advanced microprocessor-controlled stepper motor technology, the PRISMA series delivers smooth low-pulsation dosing with exceptional repeatability and precise flow regulation.
Delivering a dosing capacity of 5 L/h at 20 bar, this model is ideal for high-pressure chemical dosing systems requiring stable and highly accurate metering performance. The PVDF pump head provides superior resistance to aggressive chemicals, while VF Viton seals ensure excellent compatibility with acidic and corrosive media.
The intelligent digital control system features a large color display with encoder navigation for easy setup, monitoring, and parameter adjustment. Multiple operating modes including constant dosing, proportional dosing, ppm mode, percentage mode, weekly timer, and external input control provide flexible and highly accurate dosing management.
Its advanced turndown ratio of 1:4800 and integrated Slow Mode functionality ensure highly homogeneous dosing performance with minimal pulsation, even in demanding industrial environments and viscous chemical applications.
Key Features
- Digital stepper motor dosing technology
- 5 L/h flow capacity at 20 bar
- PVDF pump head for aggressive chemical resistance
- VF Viton seals for acidic chemical compatibility
- Color display with encoder navigation
- Turndown ratio up to 1:4800
- Slow Mode functionality for enhanced dosing precision
- PTFE diaphragm for extended durability
- Bluetooth connectivity for remote control
- RS485 / Modbus RTU communication support
- Low pulsation and accurate dosing control
- IP65 protection rating
Applications
- Water treatment systems
- Chemical dosing systems
- Industrial processing
- Acid dosing applications
- Cooling towers
- Sanitation systems
- Disinfection systems
- pH correction
- Industrial chemical injection
Technical Specifications
- Model: PRISMA 20-05-VF
- Max Flow Rate: 5 L/hr
- Max Pressure: 20 Bar
- Pump Type: Stepper motor diaphragm dosing pump
- Control Type: Digital
- Pump Head Material: PVDF
- Seal Material: VF Viton (Acidic)
- Diaphragm Material: PTFE
- Turndown Ratio: 1:4800
- Slow Mode: 100% to 1%
- Communication: RS485 / Modbus RTU / Bluetooth
- Power Supply: 110 - 240 VAC, 50/60 Hz | 9 - 36 VDC
- Protection Rating: IP65
- Pump Housing: PP reinforced with glass fiber
- Operating Temperature: 1 - 45°C
- Environment Temperature: 10 - 45°C
- Energy Consumption: 30W
- Repeatability: ±1%
