EMEC VMF 03-10-VF Digital Wall Mounted Electronic Chemical Dosing Pump
EMEC VMF 03-10-VF Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC VMF 03-10-VF Digital Wall Mounted Electronic Chemical Dosing Pump
EMEC VMF 03-10-VF Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, wall mount, 10 l/hr @ 3 bar, PVDF pump head, multifunction digital control, includes installation kit

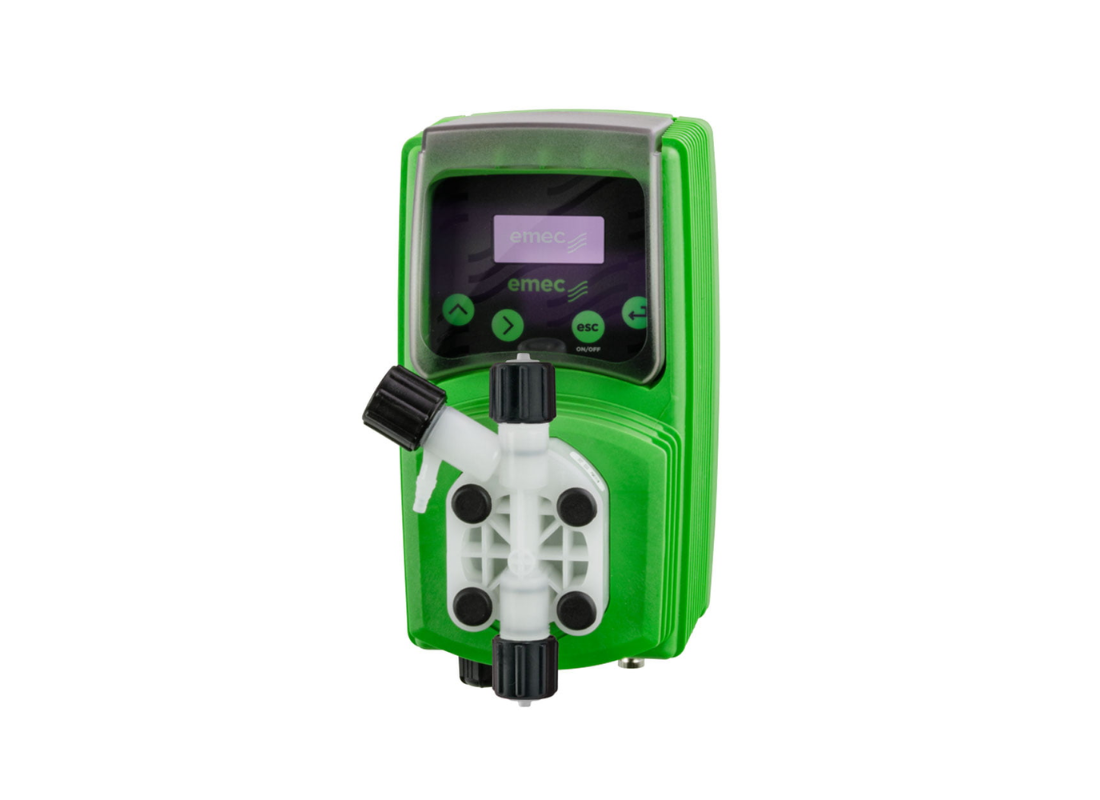

The EMEC VMF 03-10-VF is a digital multifunction dosing pump from the V Series, designed for precise and reliable chemical dosing in water treatment, industrial processes, and sanitation systems. It is ideal for applications requiring moderate flow rates with stable pressure and accurate dosing control.
Featuring a PVDF pump head, this model offers excellent resistance to aggressive and corrosive chemicals. The VF Viton (Acidic) seal configuration ensures compatibility with acidic media, providing durability and long-term reliability in demanding environments.
The integrated digital controller enables multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This allows for precise adjustment of dosing rates to match varying system requirements.
Built with a high-strength PTFE diaphragm and a solenoid-driven mechanism, the VMF series ensures consistent performance, long service life, and minimal maintenance. Its compact wall-mounted design allows for easy installation and seamless integration into dosing systems.
Key Features
- Digital multifunction dosing control
- PVDF pump head for superior chemical resistance
- VF Viton (Acidic) seals for aggressive chemicals
- Adjustable and programmable dosing modes
- High-strength PTFE diaphragm
- Reliable solenoid-driven operation
- Compact wall-mounted design
- Manual or optional self-venting configurations
Applications
- Water treatment & disinfection
- Chemical dosing systems
- Industrial process dosing
- Cooling towers
- Agriculture & fertigation
- Swimming pools & sanitation
Technical Specifications
- Model: VMF 03-10-VF
- Max Flow Rate: 10 L/hr
- Max Pressure: 3 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Digital multifunction
- Pump Head Material: PVDF
- Seal Material: VF Viton (Acidic)
- Diaphragm: PTFE
- Mounting: Wall mounted
- Venting: Manual (Self-venting optional)
- Power Supply: 100–240V AC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC VMF Series Digital Chemical Dosing Pumps
The EMEC VMF Series is a range of digital solenoid-driven dosing pumps designed for accurate and user-friendly chemical injection in a wide range of applications. Featuring a clear digital interface, the VMF allows precise adjustment of dosing output, making it ideal for users who require more control than manual models without the complexity of fully advanced systems.
The VMF Series is commonly used in water treatment, irrigation dosing, pools, sanitation systems, and light industrial applications where reliable and consistent dosing is essential. With digital control of stroke speed and simple operation, the VMF range provides a practical balance between precision, ease of use, and affordability.
Compare the VMF Series Range
Compare the full EMEC VMF range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$1,595.00 AUD
Unit price
|
Regular price
$1,595.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
