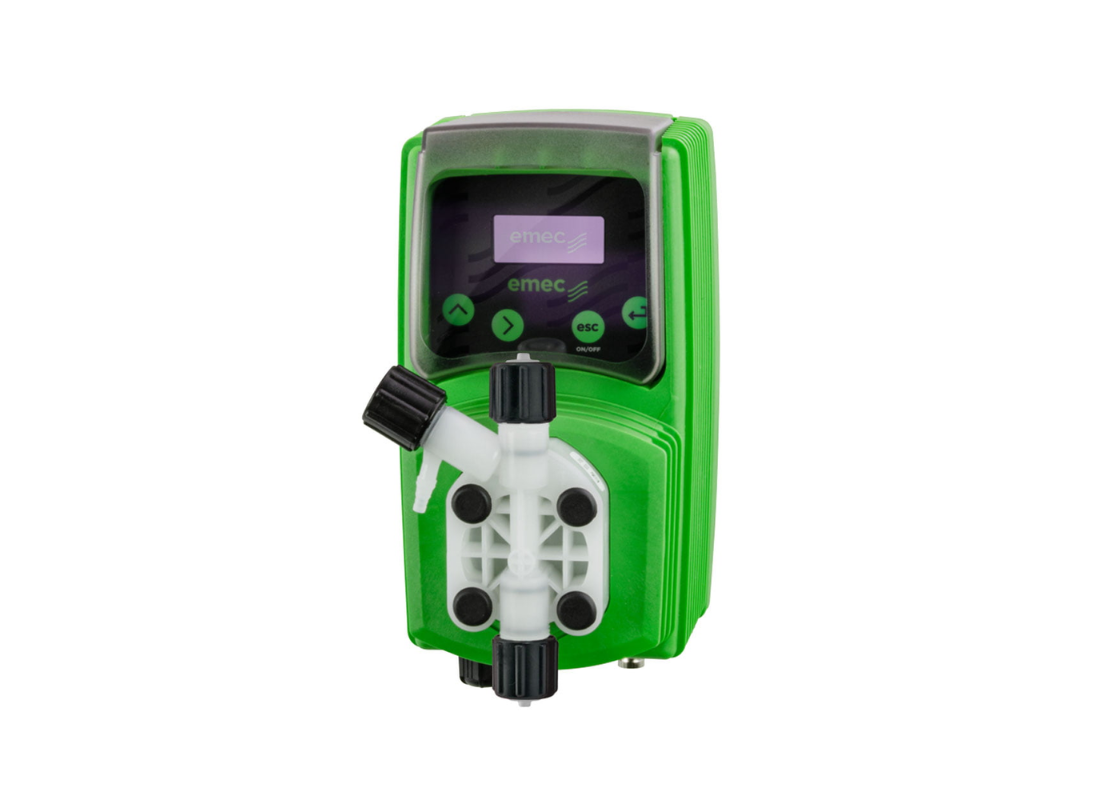

EMEC VMF 02-15-VF Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 15 l/hr @ 2 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 02-15-VF is a digital multifunction dosing pump from the V Series, designed for precise chemical dosing in water treatment, industrial processing, and sanitation systems. It delivers accurate low-flow dosing with higher pressure capability, making it ideal for applications requiring controlled injection into pressurized lines.

Built with a PVDF pump head, this model offers excellent chemical resistance, making it suitable for aggressive chemicals such as acids and disinfectants. The VF Viton (Acidic) seal configuration ensures durability and compatibility with harsh chemical environments.

The integrated digital multifunction controller allows flexible dosing modes including constant, proportional, pulse-based, and timed dosing. This enables precise adjustment based on system demand, ensuring consistent and reliable chemical injection.

Equipped with a high-strength PTFE diaphragm and solenoid-driven mechanism, the VMF series ensures long service life, minimal maintenance, and dependable operation. Its compact wall-mounted design allows easy installation across a wide range of dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for high chemical resistance

• VF Viton (Acidic) seals for aggressive applications

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Wall-mounted compact design

• Manual or optional self-venting configurations

Applications

• Water treatment & disinfection

• Chlorine and chemical dosing

• Industrial process dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 02-15-VF

• Max Flow Rate: 15 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: VF Viton (Acidic)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
