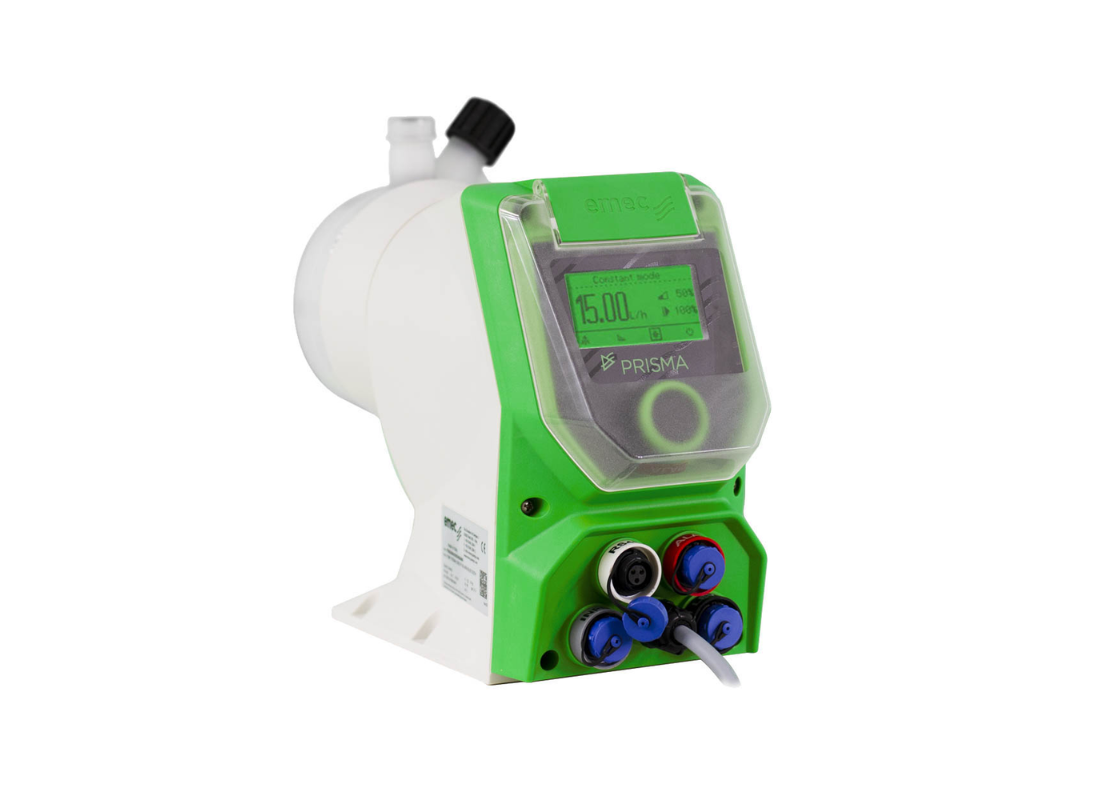

EMEC PRISMA 04-50-VF SS Digital Stepper Motor Chemical Dosing Pump

Stepper motor dosing pump, 50 l/hr @ 4 bar, stainless steel pump head, digital control, PTFE diaphragm, VF Viton seals

The EMEC PRISMA 04-50-VF SS is a high-precision digital stepper motor chemical dosing pump designed for accurate and reliable dosing in demanding industrial applications. Utilizing advanced microprocessor-controlled stepper motor technology, the PRISMA series delivers smooth low-pulsation chemical injection with exceptional repeatability and precise flow control.

Delivering a dosing capacity of 50 L/h at 4 bar, this model is ideal for industrial chemical dosing systems requiring robust mechanical durability and precise process control. The stainless steel AISI 316 pump head provides excellent strength and corrosion resistance for industrial chemical handling, while VF Viton seals ensure reliable compatibility with acidic and aggressive chemical media.

The intelligent digital control system features a large color display with encoder navigation for easy setup, monitoring, and dosing adjustment. Multiple operating modes including constant dosing, proportional dosing, ppm mode, percentage mode, weekly timer, and external input control provide flexible and highly accurate chemical management.

Its advanced turndown ratio of 1:4800 and integrated Slow Mode functionality ensure highly homogeneous dosing performance and precise chemical distribution even in demanding operating conditions.

Key Features

• Digital stepper motor dosing technology
• 50 L/h flow capacity at 4 bar
• AISI 316 stainless steel pump head
• VF Viton seals for acidic chemical compatibility
• Color display with encoder navigation
• Turndown ratio up to 1:4800
• Slow Mode functionality for enhanced dosing precision
• PTFE diaphragm for extended durability
• Bluetooth connectivity for remote control
• RS485 / Modbus RTU communication support
• Low pulsation and accurate dosing control
• IP65 protection rating

Applications

• Industrial chemical dosing
• Water treatment systems
• Acid dosing applications
• Chemical processing
• Industrial processing systems
• Cooling towers
• Sanitation systems
• Disinfection systems
• pH correction

Technical Specifications

• Model: PRISMA 04-50-VF SS
• Max Flow Rate: 50 L/hr
• Max Pressure: 4 Bar
• Pump Type: Stepper motor diaphragm dosing pump
• Control Type: Digital
• Pump Head Material: Stainless Steel AISI 316
• Seal Material: VF Viton (Acidic)
• Diaphragm Material: PTFE
• Turndown Ratio: 1:4800
• Slow Mode: 100% to 1%
• Communication: RS485 / Modbus RTU / Bluetooth
• Power Supply: 110 - 240 VAC, 50/60 Hz | 9 - 36 VDC
• Protection Rating: IP65
• Pump Housing: PP reinforced with glass fiber
• Operating Temperature: 1 - 45°C
• Environment Temperature: 10 - 45°C
• Energy Consumption: 30W
• Repeatability: ±1%
