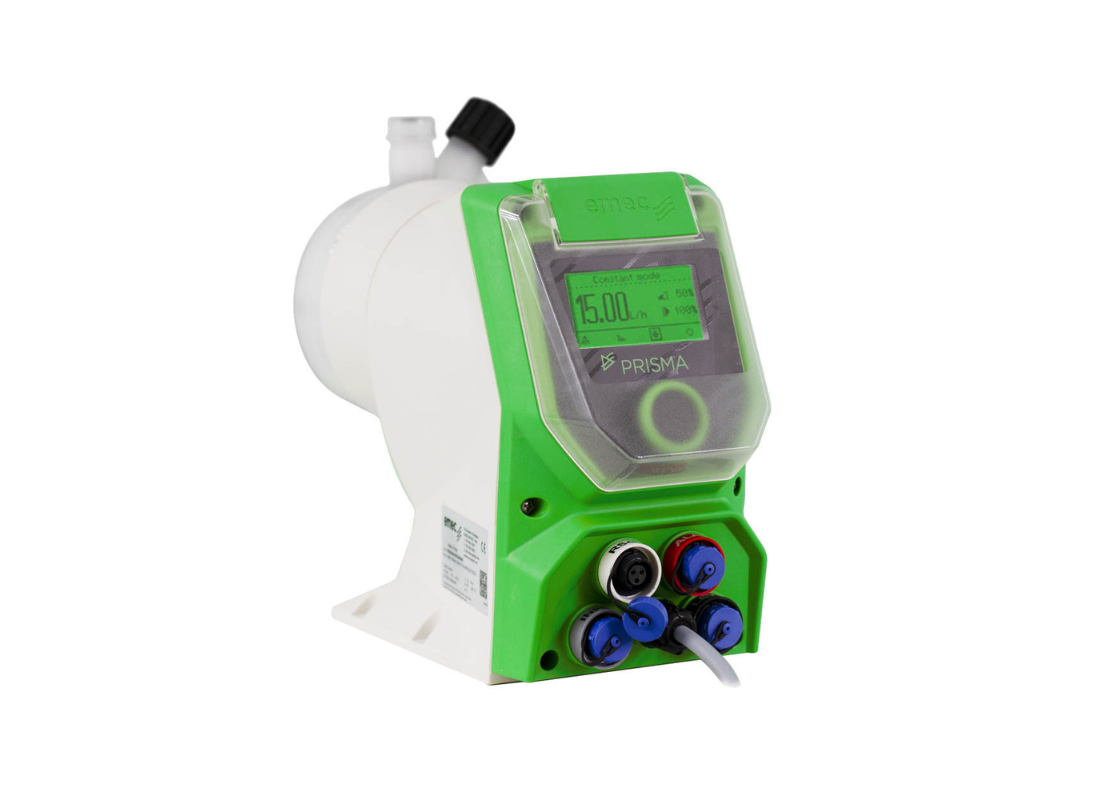

EMEC PRISMA 05-28-EPDM Digital Stepper Motor Chemical Dosing Pump

Stepper motor dosing pump, 28 l/hr @ 5 bar, PVDF pump head, digital control, PTFE diaphragm, EPDM seals

The EMEC PRISMA 05-28-EPDM is a high-precision digital stepper motor chemical dosing pump designed for reliable and accurate dosing in industrial and water treatment applications. Utilizing advanced microprocessor-controlled stepper motor technology, the PRISMA series delivers smooth low-pulsation dosing with exceptional repeatability and precise flow regulation.

Delivering a dosing capacity of 28 L/h at 5 bar, this model is ideal for medium-pressure alkaline chemical dosing and industrial water treatment systems requiring stable and highly accurate dosing performance. The PVDF pump head provides excellent resistance to aggressive chemicals, while EPDM seals ensure reliable compatibility with alkaline media and water treatment chemicals.

The intelligent digital control system features a large color display with encoder navigation for easy setup, monitoring, and parameter adjustment. Multiple operating modes including constant dosing, proportional dosing, ppm mode, percentage mode, weekly timer, and external input control provide flexible and highly accurate dosing management.

Its advanced turndown ratio of 1:4800 and integrated Slow Mode functionality ensure homogeneous dosing performance with minimal pulsation, even under demanding operating conditions.

Key Features

• Digital stepper motor dosing technology
• 28 L/h flow capacity at 5 bar
• PVDF pump head for chemical resistance
• EPDM seals for alkaline chemical compatibility
• Color display with encoder navigation
• Turndown ratio up to 1:4800
• Slow Mode functionality for enhanced dosing precision
• PTFE diaphragm for extended durability
• Bluetooth connectivity for remote control
• RS485 / Modbus RTU communication support
• Low pulsation and accurate dosing control
• IP65 protection rating

Applications

• Water treatment systems
• Alkaline chemical dosing
• Cooling towers
• Industrial processing
• Chemical injection systems
• Sanitation systems
• Disinfection systems
• pH correction
• Industrial water management

Technical Specifications

• Model: PRISMA 05-28-EPDM
• Max Flow Rate: 28 L/hr
• Max Pressure: 5 Bar
• Pump Type: Stepper motor diaphragm dosing pump
• Control Type: Digital
• Pump Head Material: PVDF
• Seal Material: EPDM
• Diaphragm Material: PTFE
• Turndown Ratio: 1:4800
• Slow Mode: 100% to 1%
• Communication: RS485 / Modbus RTU / Bluetooth
• Power Supply: 110 - 240 VAC, 50/60 Hz | 9 - 36 VDC
• Protection Rating: IP65
• Pump Housing: PP reinforced with glass fiber
• Operating Temperature: 1 - 45°C
• Environment Temperature: 10 - 45°C
• Energy Consumption: 30W
• Repeatability: ±1%
