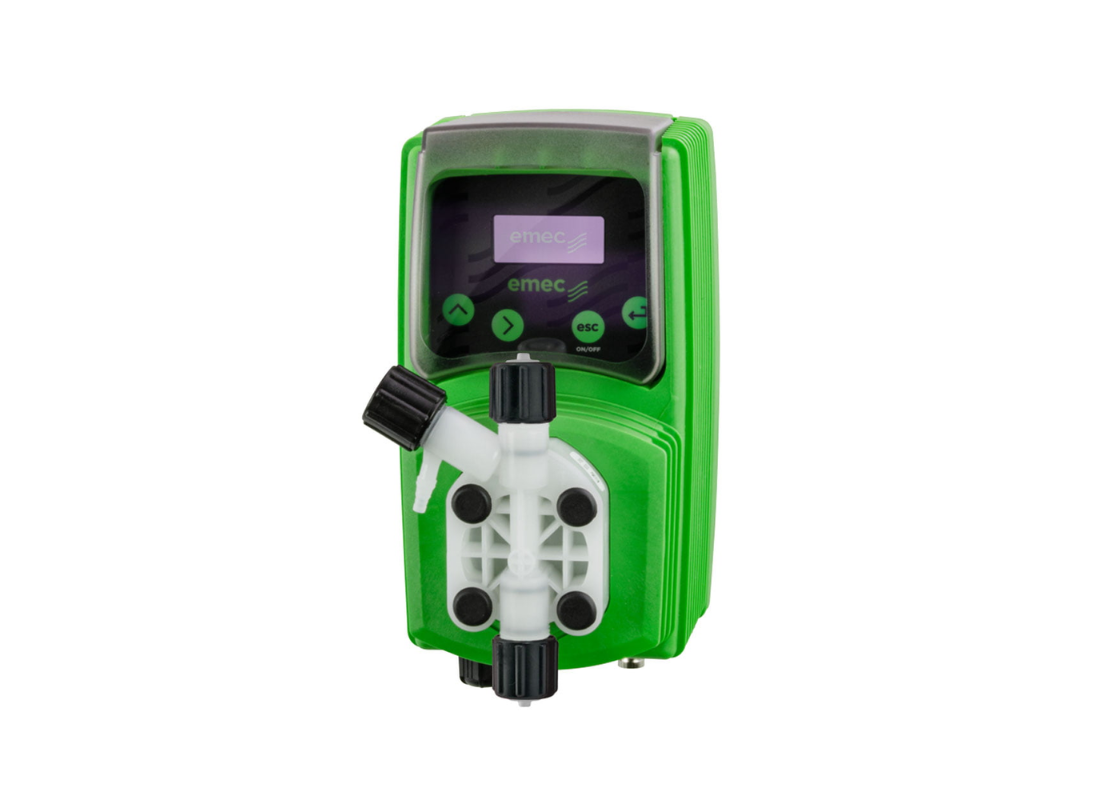

EMEC VMF 02-15-EPDM Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 15 l/hr @ 2 bar, PVDF pump head, multifunction digital control, includes installation kit

The EMEC VMF 02-15-EPDM is a digital multifunction dosing pump from the V Series, designed for precise and reliable chemical dosing in water treatment, industrial processes, and sanitation systems. It is ideal for applications requiring higher flow rates at moderate pressure with accurate and consistent dosing performance.

Featuring a PVDF pump head, this model offers excellent chemical resistance, making it suitable for a wide range of dosing chemicals. The EPDM seal configuration is particularly suited for alkaline and water-based chemicals, ensuring durability and long-term compatibility.

The integrated digital controller supports multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This provides flexibility and precise control over dosing operations, allowing the pump to adapt to varying system requirements.

Built with a high-strength PTFE diaphragm and solenoid-driven mechanism, the VMF series ensures long service life, minimal maintenance, and dependable operation. Its wall-mounted design allows easy installation and integration into dosing systems.

Key Features

• Digital multifunction dosing control

• PVDF pump head for strong chemical resistance

• EPDM seals suitable for alkaline and water-based chemicals

• Adjustable and programmable dosing modes

• High-strength PTFE diaphragm for durability

• Reliable solenoid-driven operation

• Compact wall-mounted design

• Manual or optional self-venting configurations

Applications

• Water treatment & disinfection

• Chemical dosing systems

• Cooling towers

• Agriculture & fertigation

• Industrial process dosing

• Swimming pools & sanitation

Technical Specifications

• Model: VMF 02-15-EPDM

• Max Flow Rate: 15 L/hr

• Max Pressure: 2 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF

• Seal Material: EPDM (Alkaline)

• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Manual (Self-venting optional)

• Power Supply: 100–240V AC

• Protection Rating: IP65
