EMEC VMF 07-06-EPDM 12VDC Digital Wall Mounted Electronic Chemical Dosing Pump
EMEC VMF 07-06-EPDM 12VDC Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC VMF 07-06-EPDM 12VDC Digital Wall Mounted Electronic Chemical ...
EMEC VMF 07-06-EPDM 12VDC Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description

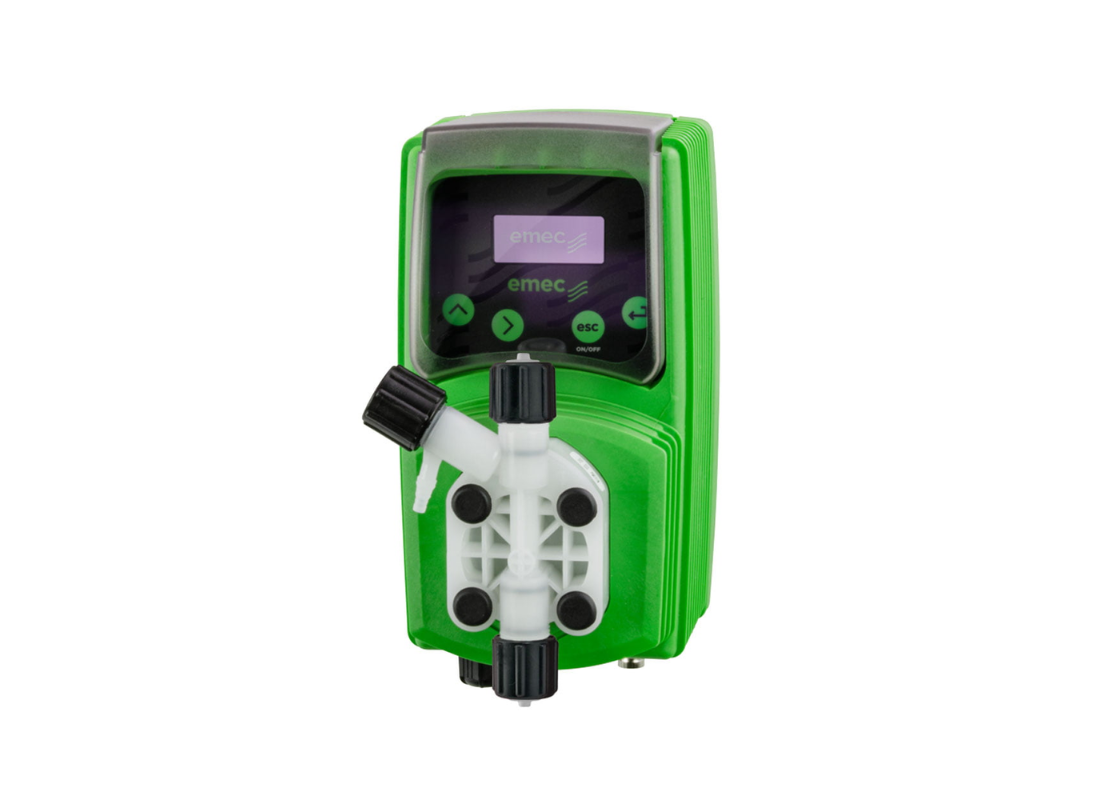

Metering pump, wall mount, 6 l/hr @ 7 bar, PVDF pump head, 12VDC digital multifunction control, includes installation kit
The EMEC VMF 07-06-EPDM 12VDC is a digital multifunction dosing pump from the V Series, designed for precise chemical injection in applications requiring low-voltage DC power supply. It is ideal for remote installations, solar-powered systems, and mobile setups where 12VDC operation is essential.
The PVDF pump head ensures excellent chemical resistance, while the EPDM (Alkaline) seals make it particularly suitable for alkaline and water-based chemicals. The high-strength PTFE diaphragm provides long service life and consistent dosing accuracy.
The integrated digital control system allows for multiple dosing modes including constant, proportional, pulse-based, and timed dosing. This ensures flexibility and precise adjustment to meet varying system requirements.
Its compact wall-mounted design and robust IP65-rated enclosure allow easy installation and reliable operation in demanding environments.
Key Features
- 12VDC low-voltage operation (ideal for remote/solar systems)
- Digital multifunction dosing control
- PVDF pump head for superior chemical resistance
- EPDM (Alkaline) seals for alkaline applications
- Adjustable dosing modes (constant, proportional, pulse, timer)
- High-strength PTFE diaphragm
- Solenoid-driven precision dosing
- Compact wall-mounted design
- Manual or optional self-venting
- IP65 protection for industrial environments
Applications
- Water treatment & disinfection
- Remote dosing systems (solar / off-grid)
- Agriculture & fertigation
- Cooling towers
- Industrial chemical dosing
- Swimming pools & sanitation
Technical Specifications
- Model: VMF 07-06-EPDM 12VDC
- Max Flow Rate: 6 L/hr
- Max Pressure: 7 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Digital multifunction
- Power Supply: 12VDC
- Pump Head Material: PVDF
- Seal Material: EPDM (Alkaline)
- Diaphragm: PTFE
- Mounting: Wall mounted
- Venting: Manual (Self-venting optional)
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC VMF Series Digital Chemical Dosing Pumps
The EMEC VMF Series is a range of digital solenoid-driven dosing pumps designed for accurate and user-friendly chemical injection in a wide range of applications. Featuring a clear digital interface, the VMF allows precise adjustment of dosing output, making it ideal for users who require more control than manual models without the complexity of fully advanced systems.
The VMF Series is commonly used in water treatment, irrigation dosing, pools, sanitation systems, and light industrial applications where reliable and consistent dosing is essential. With digital control of stroke speed and simple operation, the VMF range provides a practical balance between precision, ease of use, and affordability.
Compare the VMF Series Range
Compare the full EMEC VMF range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | EMEC | EMEC | EMEC | EMEC | EMEC |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$1,595.00 AUD
Unit price
|
Regular price
$1,595.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||

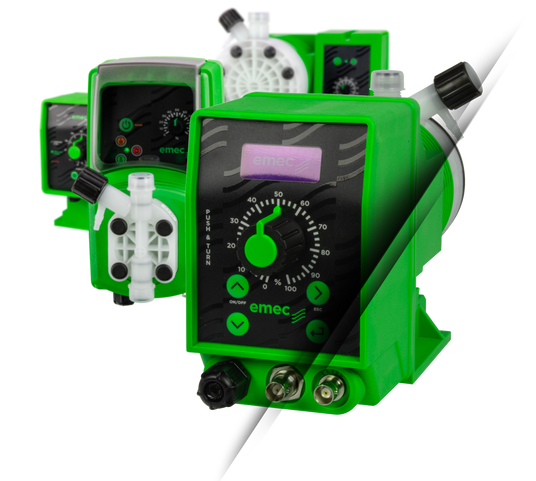

How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
