Product Overview
Multi-jet magnetic water meter, 15mm BSP inline connection, high accuracy, corrosion-resistant body, long service life

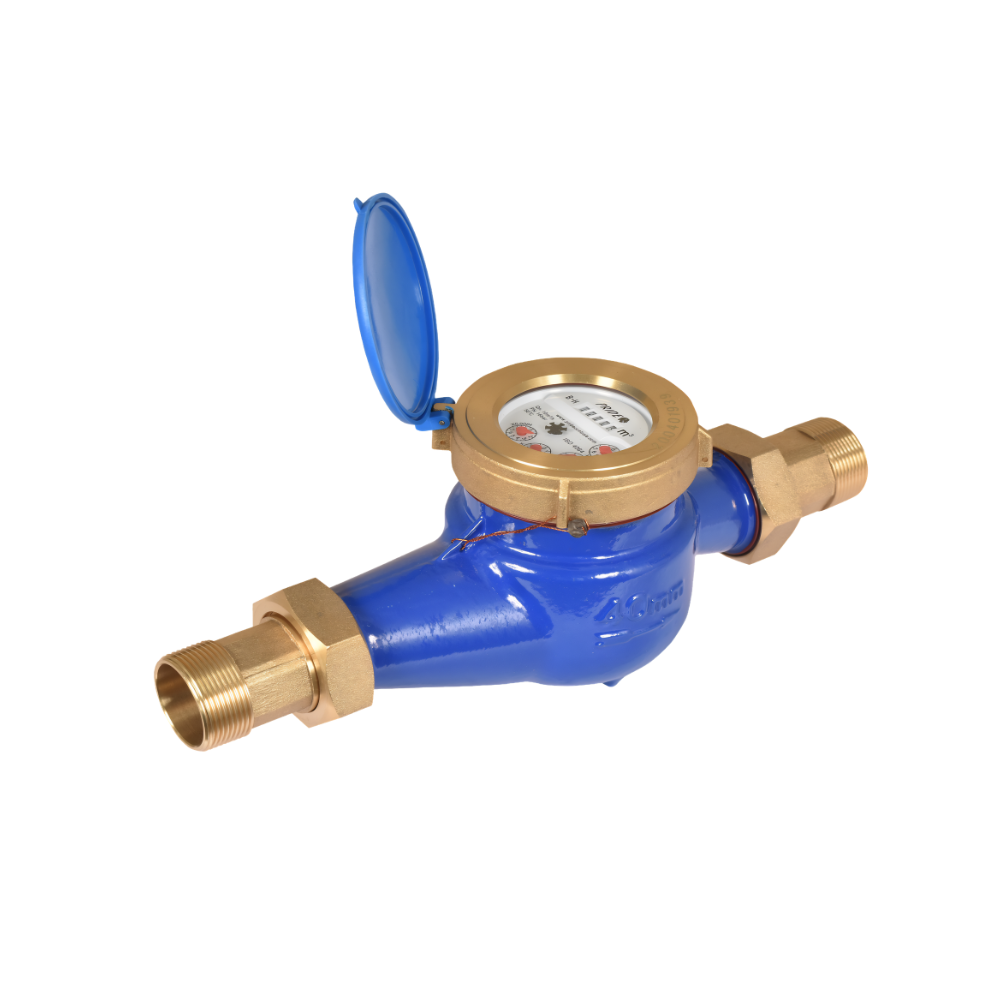

The ARAD Multi-Jet 15mm Magnetic Water Meter is a high-performance inline flow meter designed for accurate water measurement in residential, agricultural, and industrial applications. Utilizing a multi-jet measuring principle, it delivers excellent reliability and consistent performance even in challenging water conditions.
Engineered with only one moving part—the impeller—in contact with water, the meter ensures minimal wear and extended operational life. The magnetically driven sealed register prevents water ingress, eliminating fogging and ensuring clear, long-term readability.
Constructed from corrosion-resistant copper alloy, the meter is built to withstand demanding environments. Its robust design supports a maximum working pressure of 10 bar and temperatures up to 50°C, making it suitable for a wide range of water supply systems.
The 15mm BSP inline connection allows easy installation in standard pipeline systems. Optional advanced outputs and dial configurations provide flexibility for various monitoring and metering requirements.
Key Features
- Multi-jet measuring principle for high accuracy
- 15mm (1/2”) BSP inline connection
- Magnetically driven sealed register (anti-fogging)
- Single moving part for reduced wear and long life
- Corrosion-resistant copper alloy body
- Suitable for domestic, agricultural, and industrial use
- Optional pulse/output configurations available
- Reliable performance in hard water conditions
Technical Specifications
- Model: M15
- Nominal Size: 15 mm (1/2”)
- Connection Type: BSP threaded
- Maximum Working Pressure: 10 Bar
- Maximum Working Temperature: 50°C
- Meter Body Material: Corrosion-resistant copper alloy
- Optional Body Material: Reinforced composite
- Measurement Principle: Multi-jet magnetic drive
- Register Type: Magnetically coupled sealed register
- Nominal Flow Rate (Q3): 1.6 m³/h
- Maximum Flow Rate (Q4): 2.0 m³/h
- Minimum Flow Rate (Q1): 0.032 m³/h
- Accuracy:
±2% (Q2 to Q4)
±5% (Q1 to Q2) - Installation: Horizontal, dial face up
Applications
Frequently Asked Questions
What is the ARAD MultiJet MS water meter used for?
The ARAD MultiJet MS is designed for domestic, agricultural and industrial water metering applications. It is suitable where a mechanical water meter is required for reliable flow measurement in 40mm or 50mm pipework.
What is the maximum working pressure?
The maximum working pressure is 10 bar.
What is the maximum working temperature?
The maximum working temperature is 50°C.
What is the meter body made from?
The standard body is made from a corrosion-proof copper alloy. A cast iron body is also available upon request.
Does the ARAD MultiJet MS need straight pipe before and after the meter?
No. One of the key features of the MultiJet MS is that it eliminates the previous requirement for straight pipe sections of 10D upstream and 5D downstream.
How should the meter be installed?
The meter should be installed in a horizontal position with the dial facing up. The pipeline should also be flushed before installation, and the meter should remain constantly full of water.
Is the ARAD MultiJet MS accurate?
Yes. The data sheet lists accuracy of ±2% between Q4 and Q2 and ±5% between Q2 and Q1.
Is the ARAD MultiJet MS suitable for irrigation?
Yes. The meter is suitable for agriculture and irrigation applications where accurate mechanical water measurement is required, provided it is installed correctly and remains full of water during operation.
Specifications
Maintenance Kits & Spare Parts
Compatible spare parts for this pump
Contact us for spare parts and maintenance kits.
