Product Comparison Guide
Compare the Dosatron range by series, flow rate, dosing ratio, seal compatibility, and application type to find the right water-powered dosing pump for your system.
How to Choose Section
-
Step 1
Identify Your Application: Fertigation, Livestock Medication, Washdown & Cleaning, Greenhouse & Hydroponics, Water Treatment, Industrial Dosing
-
Step 2
Check Your Flow Rate: Match the pump to the water flow in your system
-
Step 3
Select Your Dosing Ratio: Choose the injection range required, such as 0.03%–0.3%, 0.2%–2%, 1%–5%, or 3%–10%
-
Step 4
Select Your Dosing Ratio: Choose the injection range required, such as 0.03%–0.3%, 0.2%–2%, 1%–5%, or 3%–10%
Quick Comparison Matrix
Technical specs at a glance for rapid engineering assessment.
| Series | Typical Use | Flow Range | Dosing Ratio | Best For | Connection |
|---|---|---|---|---|---|
| D07 Series | Small systems | Low flow | Very low to medium | Greenhouses, small irrigation, livestock | 20mm |
| D3 Series | Versatile general use | Medium flow | Low to high depending on model | Farming, washdown, general dosing | 25mm |
| D8 Series | Higher flow general use | Medium flow | Broad range | Irrigation, washdown, livestock | 32mm |
| D20 Series | Commercial use | High flow | Broad range | Larger fertigation systems | 40mm |
| D30 Series | Heavy-duty systems | Very High flow | Selected ratios | Large-scale water treatment | 50mm |
| D45 Series | Industrial/high capacity | Very high flow | Selected ratios | High-volume dosing | 63mm |
| D90 Series | Extreme flow | Very high flow | Selected ratios | Very large systems | 90mm |
Compare by What Matters Most
Which Range is Right for Me?
-

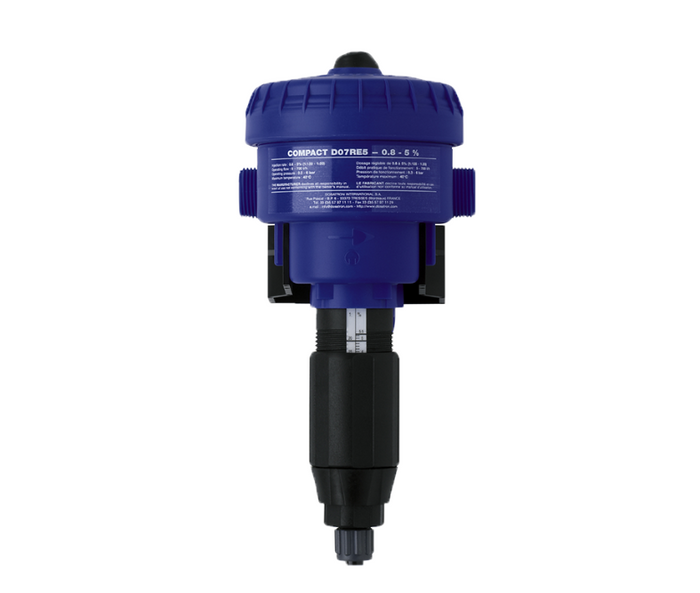

D07 Series
Best for compact, low-flow systems where precision dosing is critical
-

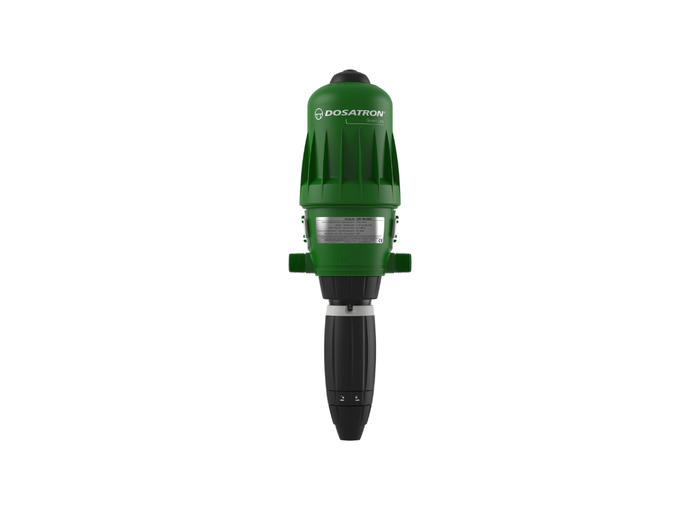

D3 Series
A versatile choice for general agricultural, livestock, and washdown applications
-

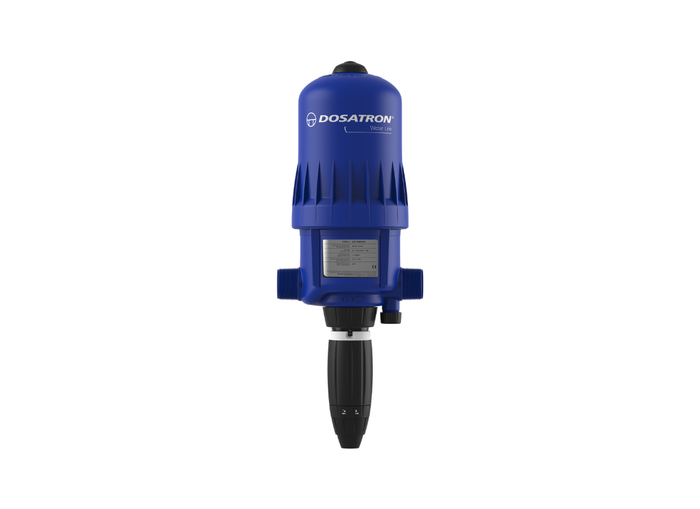

D8 Series
Ideal when more flow capacity is needed while maintaining reliable dosing accuracy
-

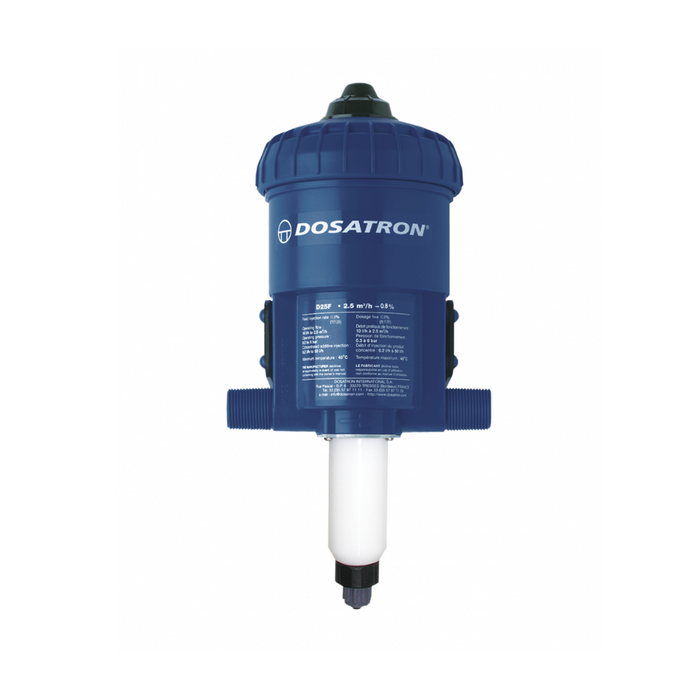

D20 / D25 Series
Best for larger irrigation and commercial fertigation systems
-

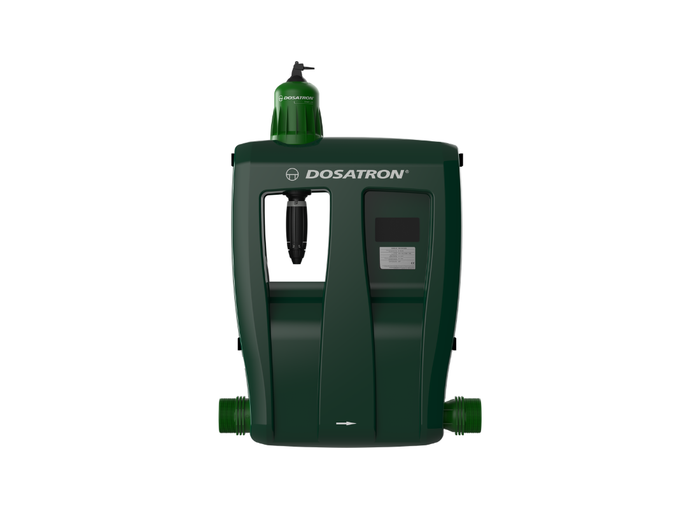

D30 / D45 / D90 Series
Designed for high-volume and industrial-scale dosing applications
Not Sure Where to Start?
Still Not Sure Which Pump You Need?
Choosing the correct dosing pump depends on your flow rate, chemical type, dosing ratio, and application. If you need help, our team can point you toward the most suitable Dosatron model for your system.
