Dositec DOSTEC® AC2-10D Advanced Control Diaphragm Chemical Dosing Pump
Dositec DOSTEC® AC2-10D Advanced Control Diaphragm Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
DOSmart products are covered by a 12-month manufacturer’s warranty from the date of purchase for manufacturing or material defects only.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
Conditions
- Product must be installed, operated and maintained as per manufacturer instructions.
- Proof of purchase is required for all warranty claims.
- Product must be cleaned, drained and safe to handle before return.
- Customer may be responsible for return postage and assessment costs.
- Warranty repairs do not extend the original warranty period unless stated by the manufacturer.
Not Covered
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or failure to follow manufacturer instructions
- Electrical damage, incorrect wiring or unstable power supply
- Overpressure, blocked discharge line or incorrectly sized pipework
- Chemical incompatibility or incorrect chemical use
- Normal wear and tear or consumable parts
- Damage caused by water impurities, debris, scale or poor water quality
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Dositec DOSTEC® AC2-10D Advanced Control Diaphragm Chemical Dosing ...
Dositec DOSTEC® AC2-10D Advanced Control Diaphragm Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
The Dositec AC2-10D is an advanced control diaphragm chemical dosing pump designed for accurate and automated liquid chemical injection in fertigation, water treatment, agriculture and industrial dosing systems.
With an injection range of 6.5–9.5 L/h and pressure capability up to 1500 kPa / 15 bar, the DTEC-AC2-10D is ideal for low-flow applications where chemical compatibility, accuracy and reliable dosing control are important. The diaphragm dosing head provides separation between the chemical and drive mechanism, making it a suitable option for many chemical dosing applications where a diaphragm style pump is preferred over piston dosing.

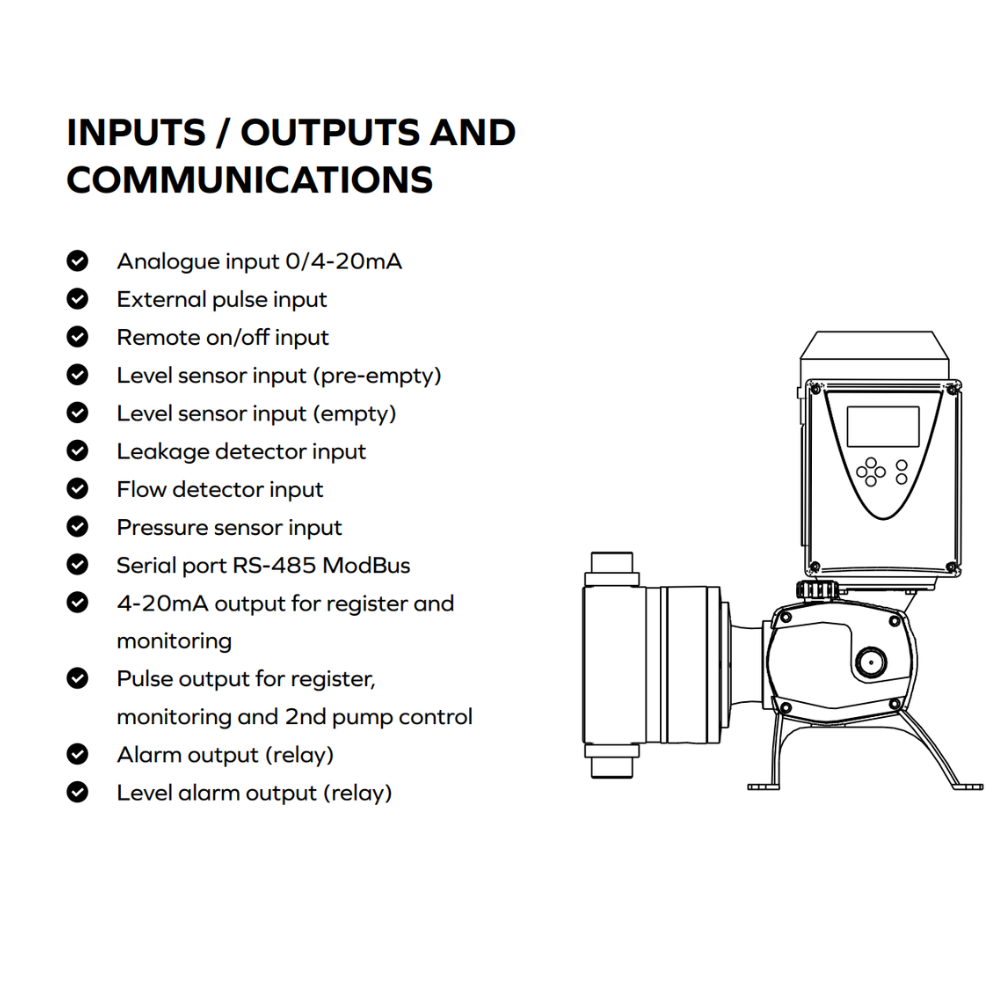

The Dostec AC Advanced Control range supports multiple control options, including manual flow control, proportional pulse control, analogue 0/4–20 mA control, batch dosing and ModBus supervisory control. This allows the pump to be integrated into automated fertigation systems, water treatment plants, flow meter-controlled dosing systems and industrial chemical injection setups.

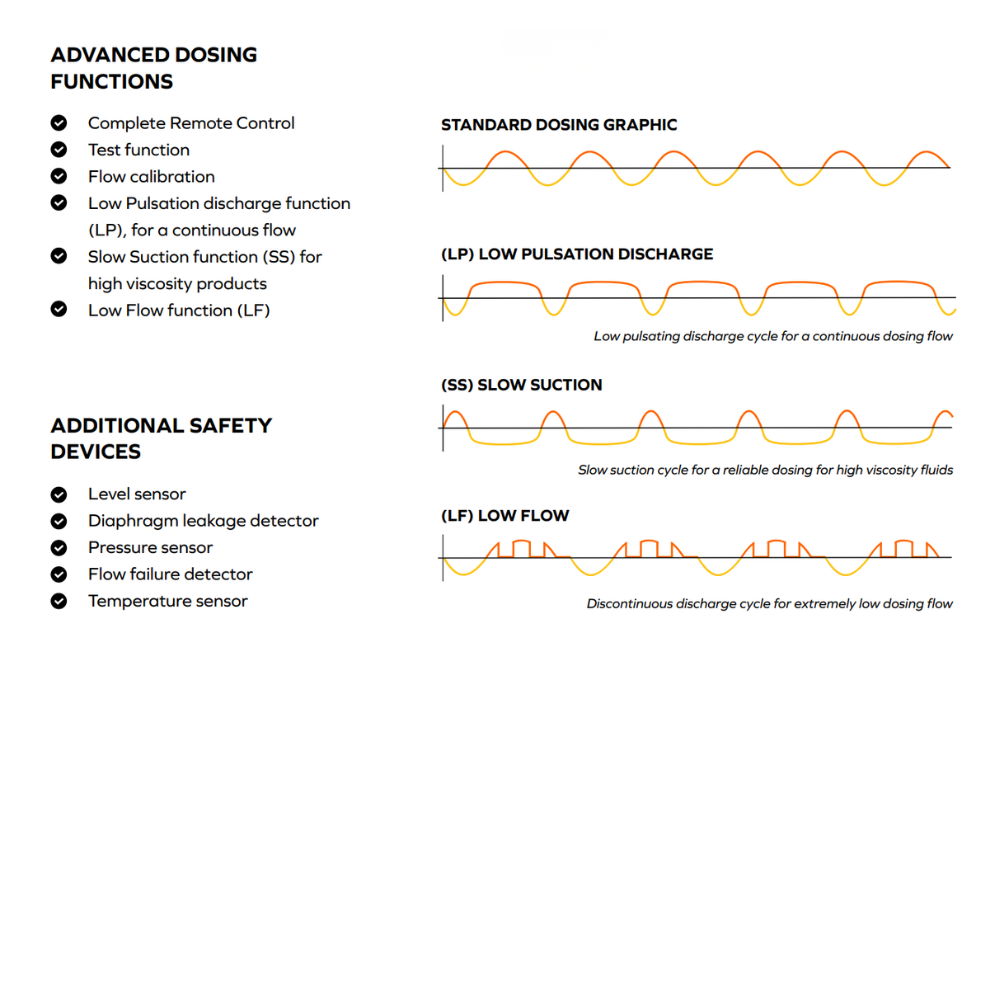

Advanced dosing functions such as low pulsation discharge, slow suction and low flow operation help improve dosing performance across different chemical types and operating conditions. The Dostec AC range can also support additional safety inputs such as level sensor, pressure sensor, flow failure detector, temperature sensor and diaphragm leakage detection.
The DTEC-AC2-10D is a strong choice where accurate, automated low-flow diaphragm dosing is required at higher operating pressures.
Key Features
- Injection range: 6.5–9.5 L/h
- Maximum pressure: 1500 kPa / 15 bar
- Diaphragm dosing pump design
- Advanced control system for automated chemical dosing
- Manual, proportional, analogue, batch and ModBus control modes
- 0/4–20 mA analogue input
- External pulse input for proportional dosing
- Remote on/off input
- Low pulsation discharge function for smoother dosing flow
- Slow suction function for high-viscosity fluids
- Low flow function for very low injection rates
- Suitable for fertigation, water treatment, chemical dosing, industrial processes and agriculture
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

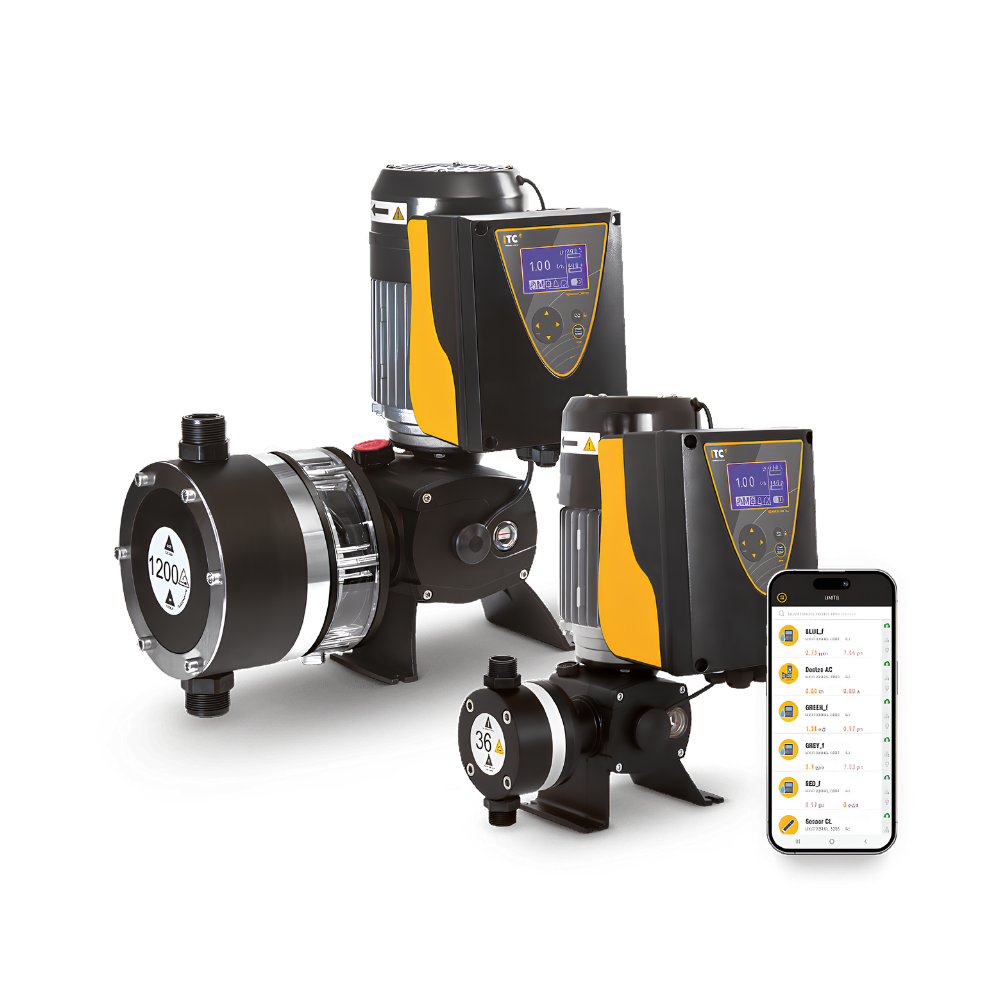

Dositec DOSTEC® AC Motor Driven Chemical Dosing Pumps

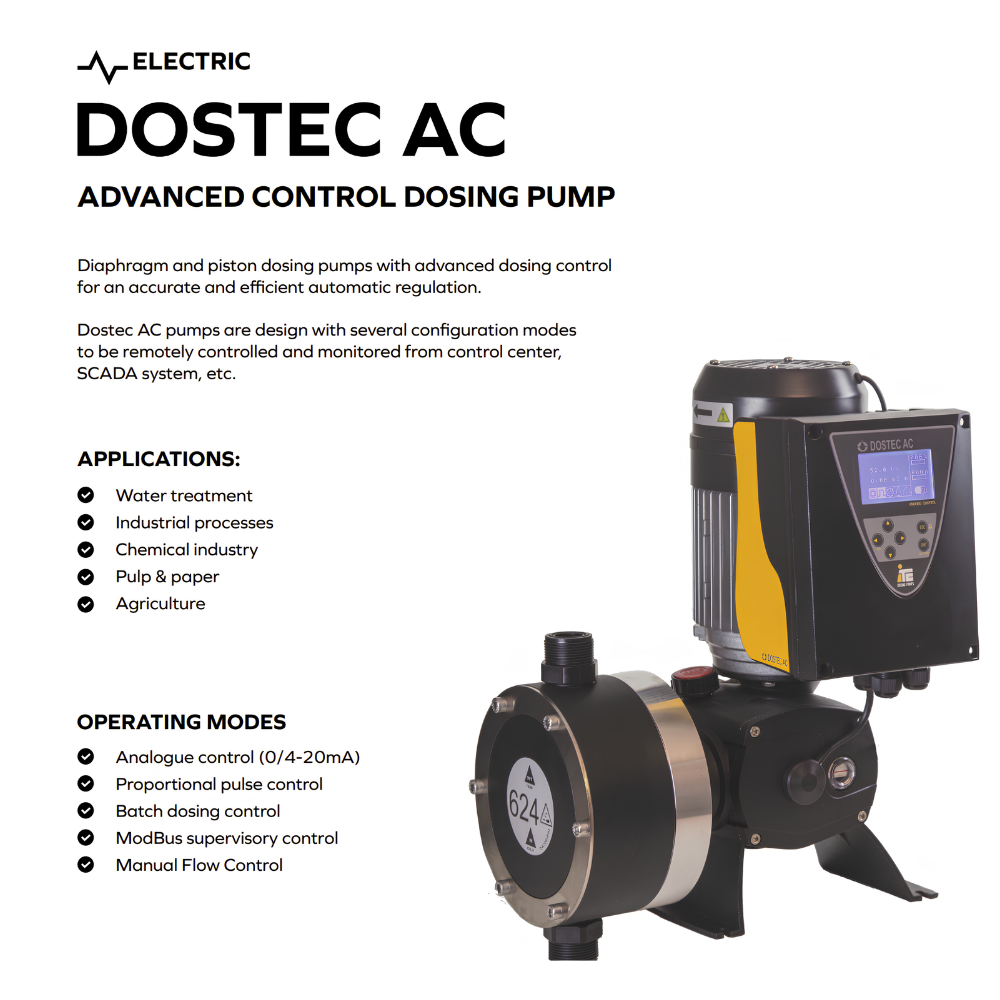

The Dositec DOSTEC® AC Series is a range of motor-driven diaphragm and piston dosing pumps designed for precise and continuous chemical injection in demanding agricultural, industrial, and water treatment applications. Powered by AC voltage, the DOSTEC® AC range is built for higher flow dosing systems where reliability, durability, and stable performance are critical.
These pumps are commonly used in fertigation systems, industrial process dosing, water treatment plants, sanitation systems, and chemical transfer applications where larger dosing volumes and continuous operation are required. With robust construction, adjustable flow control, and dependable motor-driven performance, the DOSTEC® AC Series provides a professional solution for medium to high-capacity chemical dosing installations.

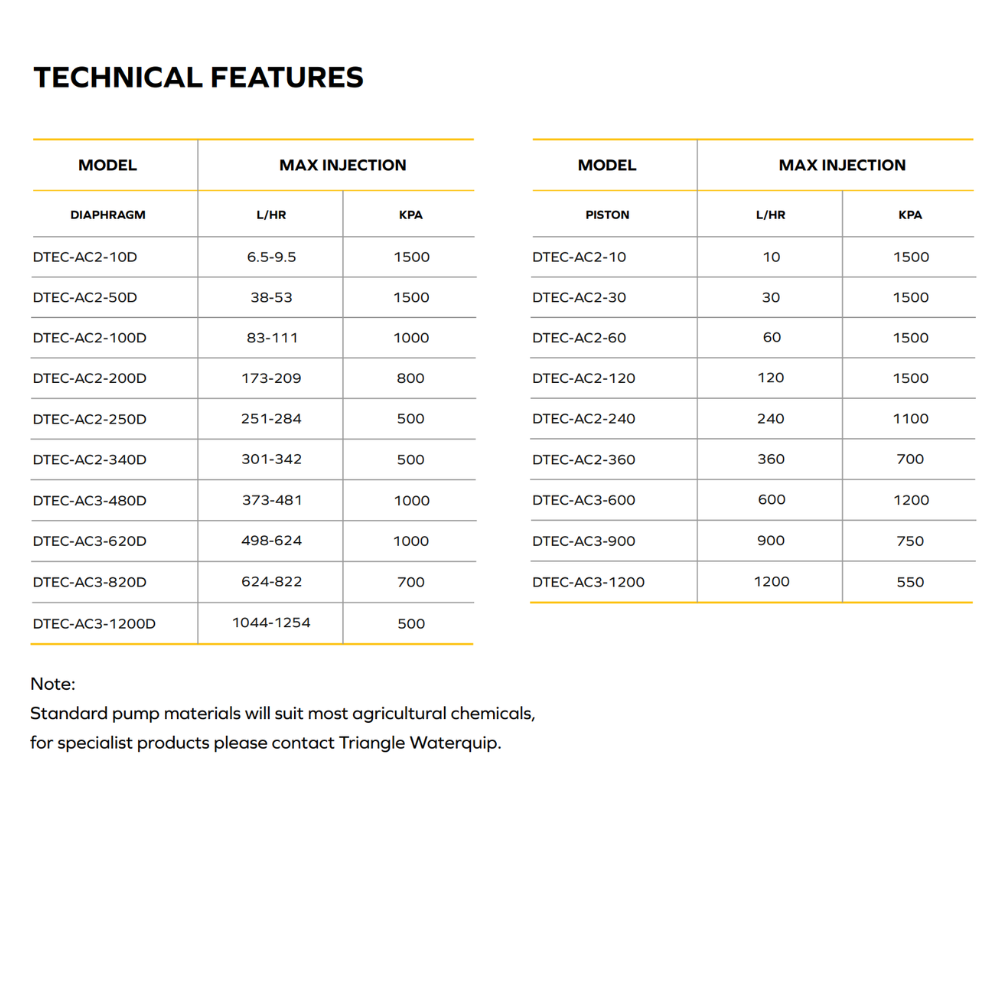

Compare the DOSTEC® AC Series Range
Compare the full DOSTEC® AC range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Dositec | Dositec | Dositec | Dositec | Dositec |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$6,510.00 AUD
Unit price
|
Regular price
$6,560.00 AUD
Unit price
|
Regular price
$6,900.00 AUD
Unit price
|
Regular price
$6,940.00 AUD
Unit price
|
Regular price
$7,175.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
