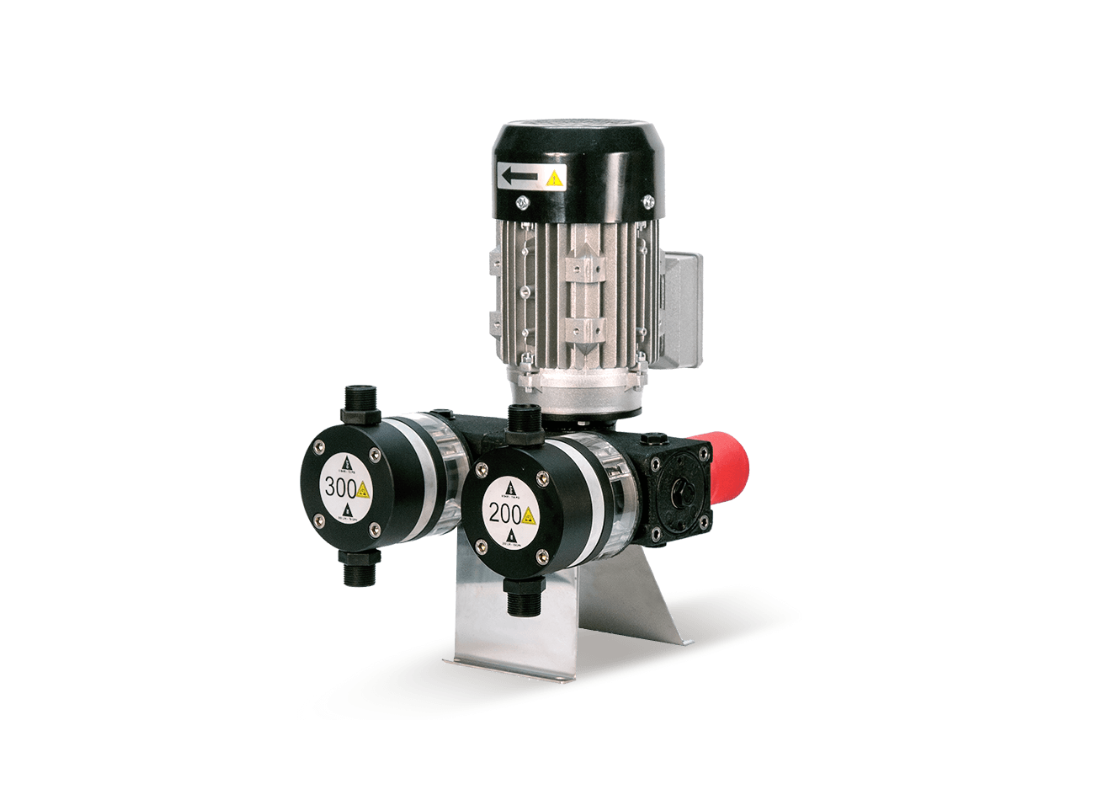

Dositec MULTIFERTIC® 50 Modular Piston Fertiliser Injection Pump

The Dositec MULTIFERTIC® 50 Modular Piston Fertiliser Injection Pump is designed to inject liquid fertilisers, water-soluble nutrients and compatible chemicals into irrigation and industrial dosing systems with exceptional accuracy and reliability. Its modular design allows the pump to be configured with up to four injection modules, providing a flexible and expandable solution for growing dosing requirements.

The electrically driven piston mechanism delivers precise and repeatable chemical injection while maintaining high operating pressures for demanding applications. The modular construction enables additional dosing modules to be added as system capacity increases, making the MULTIFERTIC® 50 ideal for fertigation, agricultural irrigation, horticulture, greenhouses and industrial chemical dosing systems.

With an injection capacity of up to 50 litres per hour and a maximum working pressure of 15 bar (217 PSI), the MULTIFERTIC® 50 is engineered for continuous-duty performance. Available in PP, PVDF and AISI 316 wetted material configurations with FPM seals, it offers excellent chemical compatibility, durability and long service life across a wide range of applications.

Key Features

• Modular piston fertiliser injection pump
• Injection flow up to 50 L/h
• Maximum operating pressure of 15 bar (217 PSI)
• Expandable design supporting up to four injection modules
• Accurate piston dosing technology
• Electric motor driven for continuous operation
• Available in PP, PVDF and AISI 316 material options
• FPM seals for excellent chemical resistance
• Suitable for liquid fertilisers and compatible chemicals
• 3/4-inch suction and discharge connections
• Designed for fertigation, irrigation and industrial dosing applications

Important Operating Note

The MULTIFERTIC® system is designed as a modular dosing platform that can be configured with one, two, three or four injection modules depending on the required injection capacity. Always select the appropriate wetted material to suit the chemical being dosed and ensure maximum service life.
