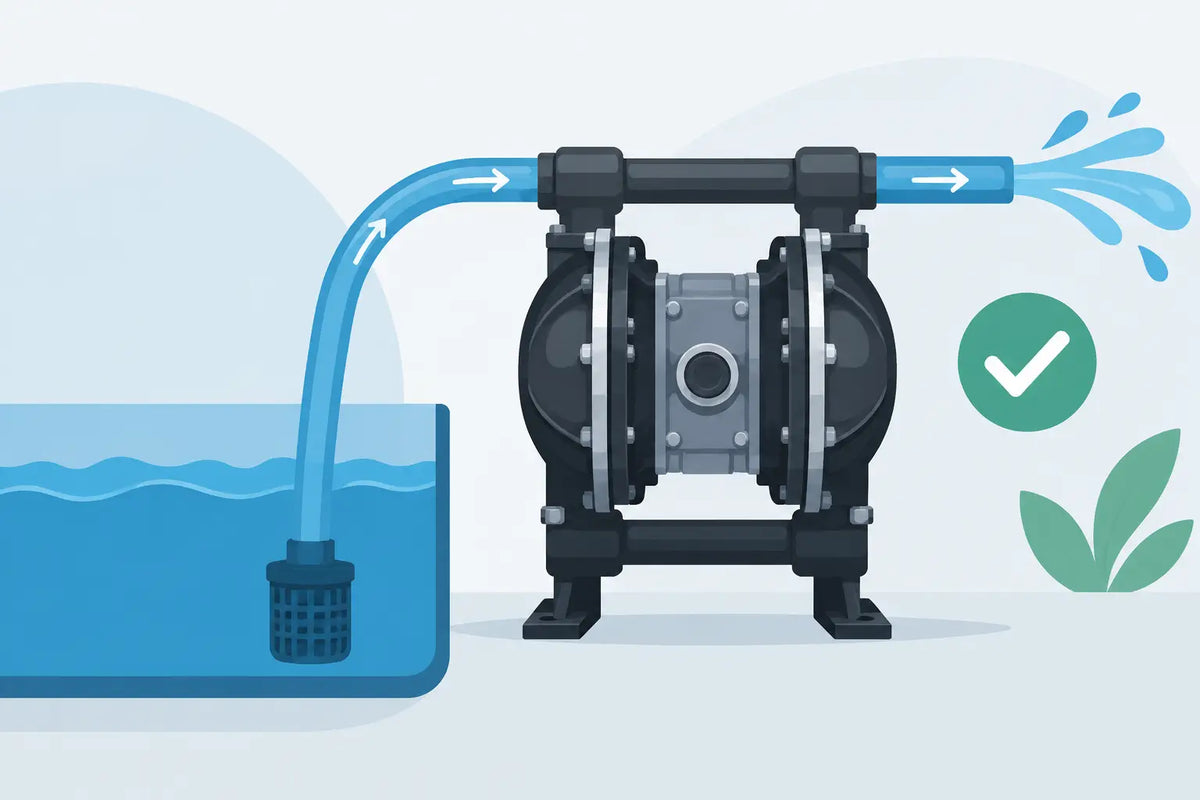

A pump that will not pick up chemical from a drum can stop an entire treatment, fertigation or washdown process. So, are diaphragm pumps self priming? Many are, but the useful answer is more specific: a diaphragm pump can usually evacuate air from its suction line and draw liquid into the pump, provided its design, installation and chemical conditions are suitable.
That does not mean every diaphragm pump will achieve the same suction lift, prime equally well when dry, or recover from an empty tank without attention. For dosing, transfer and injection work, the difference matters. A pump may be technically self-priming yet still give inconsistent output if the suction line is too long, an inlet strainer is blocked, a foot valve leaks or the diaphragm and valve materials are not suited to the chemical.
What self priming means for a diaphragm pump
A self-priming pump can remove air from the suction pipe and pump casing sufficiently to create a pressure difference that draws liquid from the supply tank. Unlike a centrifugal pump, which commonly needs its casing filled with liquid before starting, many diaphragm pump designs can start with air in the suction line.
The flexible diaphragm moves back and forth to create a low-pressure chamber on the suction stroke and a pressurised chamber on the discharge stroke. Check valves control the direction of flow. As the pump cycles, it can displace air before liquid reaches the pump head.
For practical operators, self priming means the pump can often be mounted above the liquid level and still lift product from a drum, IBC or tank. It is particularly useful where tanks are changed regularly, chemical containers run empty, or equipment is mounted on a skid, wall or mobile unit.
However, self priming is not a guarantee of unrestricted dry operation. The published suction lift and dry-prime capability for the exact pump should guide the installation, not the general category name.
Which diaphragm pumps are self priming?
Several pump types use diaphragms, and their priming behaviour differs. This is where specifications matter more than assumptions.
Metering diaphragm pumps
Solenoid-driven and motor-driven diaphragm metering pumps are commonly used for controlled chemical dosing in water treatment, livestock systems, irrigation and sanitation. Many are self-priming to a stated suction lift, particularly when fitted with suitable non-return valves and a correctly sized suction line.
Their core purpose is accurate, repeatable dosing rather than moving large volumes. A metering pump may self-prime effectively at a low discharge pressure, but priming performance can reduce as discharge pressure rises. Thick products, gas-forming chemicals and a restrictive injection point can also make the process slower or more difficult.
Some metering pumps benefit from a manual priming valve or a priming function that allows the operator to circulate chemical back to the tank. This is not a design weakness. It provides a controlled way to remove air quickly and establish flow when commissioning, changing chemical drums or restarting after maintenance.
Air-operated double diaphragm pumps
Air-operated double diaphragm pumps, often called AODD pumps, are generally well known for self-priming capability. Their alternating diaphragms can move air and liquid effectively, making them suitable for chemical transfer, decanting and viscous fluids.
Actual suction lift varies by pump size, air supply, diaphragm material, fluid viscosity and whether the pump is wet or dry. A pump can usually lift further once its internal chambers are wetted than it can from a completely dry start. For this reason, manufacturers may publish separate wet and dry suction lift figures.
AODD pumps are often a strong option where a process requires chemical transfer rather than precision proportional dosing. They can handle a broad range of products, but they deliver a pulsating flow and require clean, adequate compressed air. Those trade-offs may make them less suitable than a purpose-built dosing pump for injection applications.
Water-powered dosing injectors
Water-powered injectors also use diaphragm or piston-based mechanisms, depending on the model. Their operating principle differs from an electrically driven transfer pump: water flow powers the unit and draws concentrate from a supply container at a set ratio.
Many injector systems can self-prime from the concentrate container, subject to the specified suction height and chemical viscosity. A water-powered injector should be selected around the operating flow range, pressure and required dosing ratio. If water flow is below the unit's minimum operating requirement, reliable concentrate pickup may not occur even when the suction installation is otherwise correct.
Why a self-priming pump can still fail to prime
Most apparent priming faults are installation or application faults. Air leaks are the most common cause. A suction connection can look dry yet leak air without leaking chemical, especially when it sits above the tank level. Because the pump is trying to create a vacuum on the inlet side, even a minor leak can prevent it from lifting product.
Suction restrictions are another frequent issue. A collapsed hose, blocked strainer, undersized tube or heavily contaminated foot valve increases inlet resistance. The pump may cycle normally but move little or no liquid. Keep suction lines as short and direct as practical, avoid unnecessary elbows, and use hose rated to withstand vacuum.
Viscosity changes the calculation. Cold molasses-based supplements, concentrated fertilisers, polymers and some detergents can be substantially harder to lift than water. A pump that primes water from a given height may not prime a viscous liquid from the same height. Lowering the pump, using larger suction hose or choosing a pump designed for the product can solve the issue.
Vapour pressure also matters. Volatile products and warm liquids can release vapour in the suction line, reducing the pump's ability to establish a stable liquid column. This is especially relevant in Australian conditions where chemical tanks and pipework can be exposed to high ambient temperatures.
Finally, worn check valves, damaged diaphragms and incompatible seal materials can compromise priming and dosing accuracy. Swollen, brittle or softened components may prevent the valves from sealing correctly. Chemical compatibility should be checked for diaphragms, O-rings, valve balls, seats and suction tubing, not just the pump body.
Installation practices that improve priming reliability
Positioning the pump below the liquid level is the most reliable way to improve inlet conditions. This creates a flooded suction arrangement, where liquid naturally reaches the pump inlet. It reduces priming time and is preferred for demanding chemicals, long duty cycles and critical treatment systems.
Where the pump must sit above the tank, keep within the manufacturer's maximum suction lift and allow a sensible margin. The quoted maximum is a test limit, not always the best design point for a farm or processing site where temperatures, fluid level and hose condition vary.
Use a foot valve when required to hold liquid in the suction line after shutdown. It can reduce re-priming time, though it must be clean and chemically compatible. A non-return valve that is too stiff for the pump's suction performance can create its own restriction, so it should suit the pump and application.
For metering pumps, a properly installed injection valve on the discharge side is equally important. It helps prevent backflow and can provide the back pressure needed for consistent metering. If the discharge line drains back after each stop, air may enter the pump head and affect restart performance.
During commissioning, fill or wet the suction line if the manufacturer recommends it, open the priming valve where fitted, and run at the appropriate speed or stroke setting until liquid flows free of bubbles. Do not leave a chemical pump running dry for extended periods unless its documentation specifically permits it.
Self priming does not replace correct pump selection
A self-priming claim should be one part of selection, alongside flow rate, pressure, dosing ratio, chemical compatibility and control requirements. For example, a livestock medication system may need a water-powered injector matched to drinking-water flow. A bore-water treatment system may require a metering pump capable of dosing against line pressure. A wash bay may need a transfer pump that can safely handle detergent concentrate from drums.
The product's seal and diaphragm materials deserve the same attention as its priming specification. EPDM, Viton, PTFE and other materials each have strengths and limitations with acids, alkalis, oxidisers, oils and solvents. Selecting the wrong elastomer may initially look like a priming fault, then become a leakage or failure issue later.
At AgriDosing, the best starting point is the actual operating condition: chemical type and concentration, available water or air supply, flow required, discharge pressure, tank position and suction height. These details turn a broad question about self priming into a pump selection that performs reliably in service.
Common questions about diaphragm pump priming
Can a diaphragm pump run dry?
Some diaphragm pumps tolerate short dry-running periods better than centrifugal pumps, particularly air-operated designs. That does not mean continuous dry running is advisable. It can increase wear, waste operating time and create heat or diaphragm stress depending on the design. Follow the pump manufacturer's limits.
How high can a diaphragm pump lift liquid?
There is no universal figure. The achievable lift depends on the pump design, whether it starts wet or dry, fluid properties, altitude, temperature and suction-line losses. Check the published suction lift for the exact model, then design below that limit rather than at it.
Does a foot valve make a pump self priming?
No. The pump must have the ability to move air and create suction. A foot valve simply helps retain liquid in the line after the pump stops, which can make the next start faster and more reliable.
A diaphragm pump's ability to self-prime is valuable, but it works best when treated as part of the whole system. Give the pump a clean, airtight suction path, select materials for the chemical, and leave enough margin for real site conditions. That approach protects dose accuracy and avoids the avoidable downtime of a pump that cycles but will not pick up product.
