A venturi versus dosing pump decision often looks simple at the start: both can draw a chemical or nutrient concentrate into a water line. The difference appears once flow changes, pressure drops, a tank level falls, or the dose must remain accurate across a full day of operation. For fertigation, livestock medication, sanitation and water treatment, that difference can affect product use, treatment outcomes and downtime.
A venturi can be a practical, low-cost method of injection in the right hydraulic conditions. A purpose-selected dosing pump or water-powered injector offers more controlled and repeatable dosing where operational consistency matters. The best choice depends on the application, not just the initial purchase price.

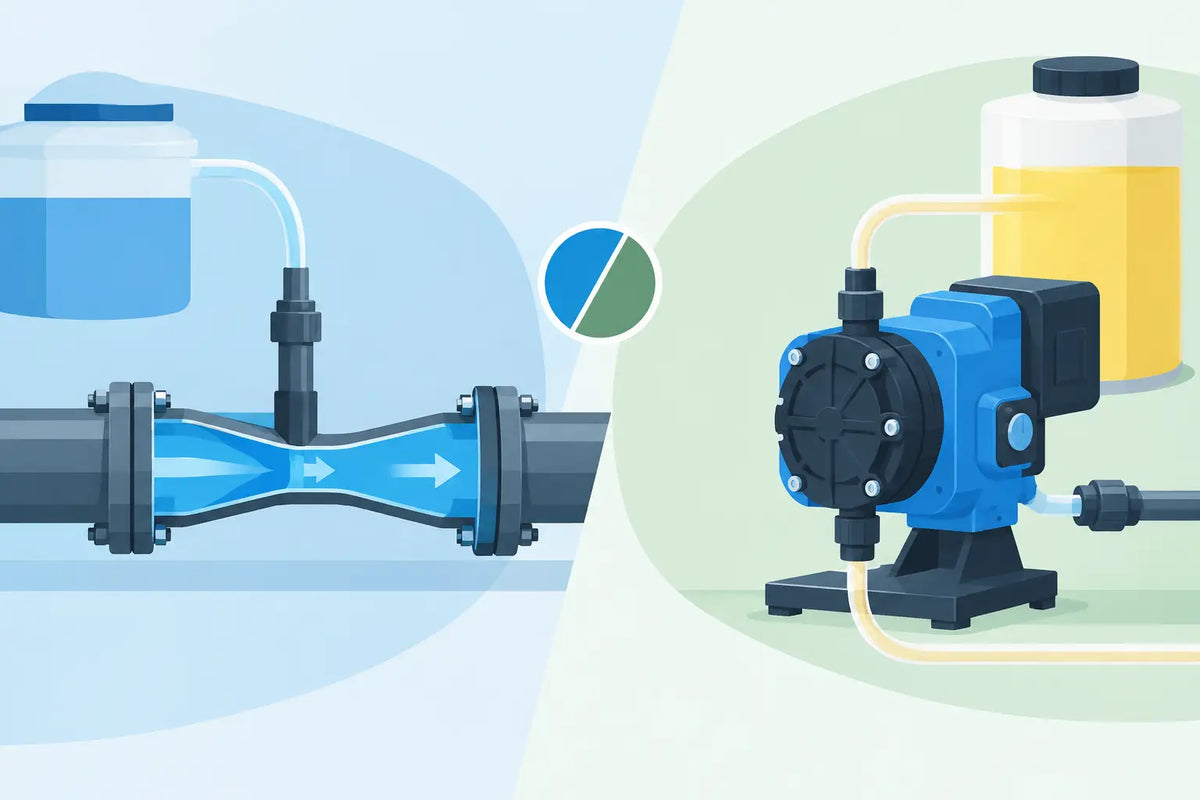

Venturi versus dosing pump: the operating difference
A venturi injector uses a restriction in the water path to create a pressure differential. As water accelerates through the venturi throat, it creates suction that draws concentrate from a supply tank. The concentrate is then carried with the water flow downstream.
This is a simple mechanical principle, which is why venturis are common on small irrigation systems and basic chemical injection setups. They have no motor, no diaphragm and few moving parts. However, suction is only available when the pressure difference across the injector is sufficient. In practice, this often means installing the venturi on a bypass loop with a valve arrangement that deliberately creates pressure loss.
A dosing pump measures and injects concentrate at a defined rate. The exact mechanism varies by pump type. An electric diaphragm or peristaltic pump doses by timed strokes or speed control. A water-powered proportional injector uses water flow to drive its internal mechanism, drawing and injecting concentrate in proportion to the volume of water passing through it.
That distinction matters. A dosing pump is generally selected for a stated output, such as litres per hour, while a proportional injector is selected by flow range and dosing ratio. Both provide a more deliberate dose than a venturi, but they suit different control strategies.
Accuracy is not the same as chemical injection
A venturi can inject product successfully, but its dosing rate is influenced by line pressure, pressure differential, water flow, suction lift, concentrate viscosity and the condition of the non-return valve or foot filter. If any of these variables change, the draw rate can change with them.
For a simple application where an operator can monitor the system and minor variation is acceptable, this may be entirely suitable. For example, a small irrigation zone applying a non-critical fertiliser blend may operate well with a properly sized venturi and a stable pump setup.
Where the dose needs to remain proportional to water volume, a water-powered injector is usually the stronger option. If irrigation flow increases, the injector increases concentrate delivery accordingly. This is particularly useful for fertigation where nutrient concentration needs to remain consistent from the first irrigation cycle to the last.
Electric dosing pumps are often preferred when operators need a fixed chemical output or when a controller, flow meter or pH/EC system is managing the process. In water treatment, for instance, a metering pump can be configured to dose in response to a measured flow signal, residual reading or programmed schedule.
Pressure and flow conditions determine venturi performance
The main limitation of a venturi is not its simplicity. It is the hydraulic conditions it requires. A venturi needs adequate pressure differential between its inlet and outlet to generate suction. Creating that differential consumes pressure that would otherwise be available to sprinklers, drippers, filters or downstream equipment.
On a system already working near its pressure limit, this can be a problem. A venturi may draw poorly during peak demand, then draw too strongly when other zones shut down and line conditions change. Operators sometimes compensate by adjusting valves, but that adjustment can alter irrigation performance at the same time.
A dosing pump also has operating limits, including maximum backpressure, flow capacity and chemical compatibility. The difference is that its performance is generally easier to specify against known site conditions. An electric pump can be selected to overcome the expected discharge pressure. A water-powered injector can be selected for the actual operating flow range and required injection ratio.
Before choosing either option, confirm the minimum and maximum water flow, operating pressure at the injection point, expected backpressure downstream and the likely variation between zones. These figures are more useful than selecting solely by pipe size.
Chemical compatibility and maintenance
Venturis are often made from chemical-resistant plastics, but the injection line, seals, check valve and foot filter must also suit the chemical being handled. Acidic products, chlorine-based sanitisers, concentrated fertilisers and livestock treatments can quickly expose an unsuitable material choice.
Dosing pumps introduce more wetted components, so compatibility becomes even more important. Diaphragms, seals, hoses and valve assemblies need to match the product concentration and temperature. Seal materials such as EPDM, Viton and other specialist elastomers are not interchangeable. A pump that handles water reliably may not be suitable for an aggressive acid or solvent-based product.
Maintenance also differs. A venturi should be kept clear of scale, sediment and crystallised fertiliser, with regular inspection of the check valve and suction assembly. It is simple to service, but a blocked or worn component can reduce draw rate without being immediately obvious.
A dosing pump requires routine checks of diaphragms, injection valves, tubing and calibration. Water-powered injectors need clean water, appropriate filtration and periodic seal servicing. In return, the operator gains a more repeatable process and, in many cases, easier verification of dose settings.
Where each option makes sense
A venturi is often a good fit for low-cost injection where water pressure is available to spare, the flow remains relatively stable and dose variation is acceptable. It can suit small irrigation installations, batch filling and occasional chemical addition where an operator is present to confirm operation.
A water-powered proportional injector is well suited to livestock medication, greenhouse fertigation, hydroponics and irrigation systems where the dose must track water use. Because it operates from water flow, it does not require mains power at the injection point. It is particularly useful on remote sites and for applications where every litre of treated water should receive the intended concentration.
An electric dosing pump is generally the better choice where injection must occur against higher pressure, at very low or precisely controlled rates, or in response to automation. Water treatment skids, wash-down systems, pH correction and industrial process lines commonly benefit from this approach.
There are exceptions. A well-designed venturi on a stable bypass can provide dependable service, while a poorly sized dosing pump can be just as troublesome. Selection should start with duty conditions rather than a preference for one technology.
A practical selection process
Start by defining the treatment target. Is the requirement a set concentration in irrigation water, a fixed number of litres per hour, or a chemical dose triggered by a controller? This immediately narrows the suitable equipment type.
Next, establish the water flow range, not only the nominal flow. If a system runs from 2,000 L/hr on one zone to 15,000 L/hr with multiple zones open, the injection equipment must perform across that range. A proportional injector that is oversized may not activate accurately at low flow, while an undersized unit can restrict supply at high flow.
Then assess the chemical itself. Record its concentration, viscosity, temperature, likely crystallisation behaviour and material safety requirements. The correct ratio, pump head and seal material are all dependent on this information.
Finally, consider how the system will be operated. A manually supervised setup can tolerate more adjustment than an unattended farm, poultry shed or treatment plant. If a dosing failure could affect animal health, crop quality, compliance or production, the value of accurate equipment and reliable local spare parts becomes clear.
Do not overlook verification
Regardless of the equipment selected, verify actual performance during commissioning. Measure the volume of concentrate drawn over a known period or water volume, then compare it with the intended dose. Repeat the check at different flows and pressures where relevant.
For fertigation and hydroponics, monitoring EC and pH provides a useful operational check, but it does not replace confirming the injector or pump setting. For livestock medication and sanitation, use the product label, treatment protocol and measured water consumption to confirm the system is delivering the required concentration.
The right choice is the one that keeps dosing consistent under your real operating conditions. If pressure, flow and chemical requirements are well defined, AgriDosing can help match the appropriate venturi, proportional injector or dosing pump to the job before it becomes an expensive trial on site.
