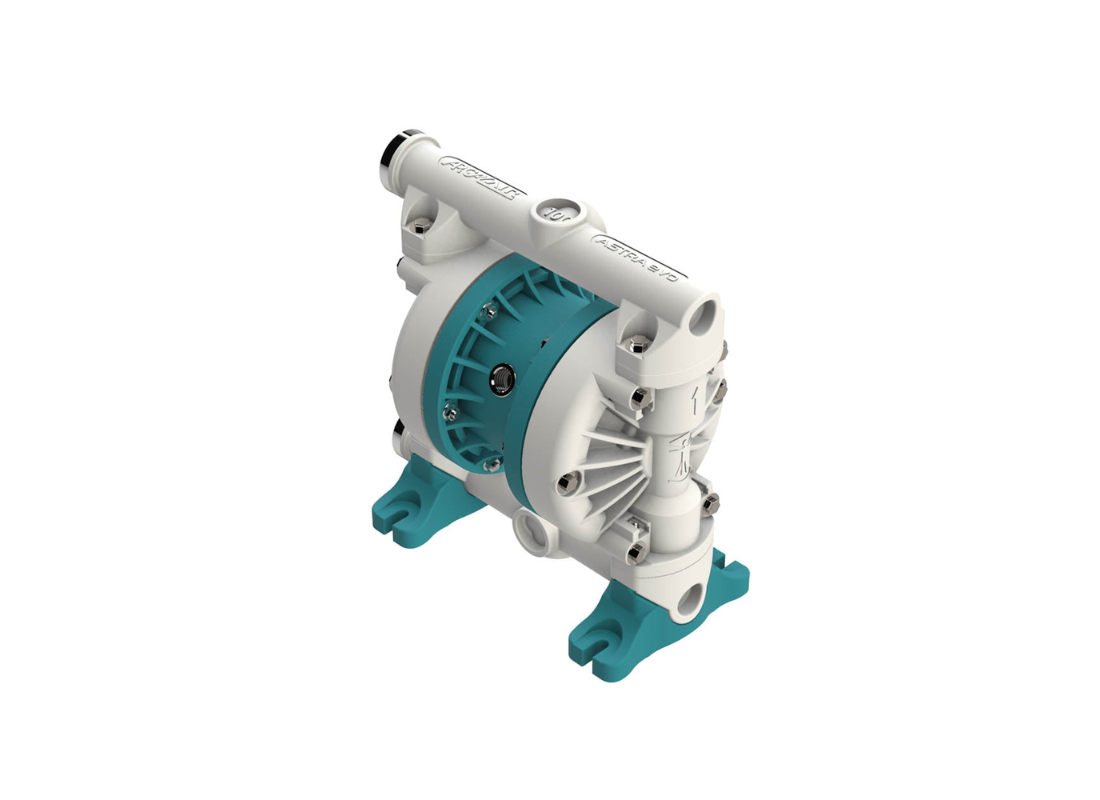

Argal Astra Evo AODD DDE 160 WRN Y TPT GLL Polypropylene Casing Air Operated Double Diaphragm Pump

High capacity air operated diaphragm pump, polypropylene AODD pump, industrial chemical transfer pump, corrosion-resistant fluid handling solution

The Argal Astra Evo DDE 160 WRN is a high-capacity air operated double diaphragm (AODD) pump engineered for demanding industrial applications involving aggressive and corrosive fluids. Constructed with a polypropylene (PP) glass-reinforced casing, it offers excellent chemical resistance while maintaining strength and durability.

Operating on a 1:1 pressure ratio, the pump is powered by compressed air, ensuring reliable and safe performance without electrical components. This makes it ideal for hazardous and ATEX-rated environments.

Designed for heavy-duty applications, the DDE 160 WRN is capable of handling solids up to 6 mm and provides a suction lift of up to 4.5 meters. Its large displacement per cycle and high flow capacity make it suitable for continuous operation in industrial processes.

This configuration features TPV + PTFE diaphragm combination, offering enhanced chemical resistance along with improved mechanical durability for aggressive fluid handling.

Key Features

• Air operated double diaphragm (AODD) pump

• Polypropylene glass-reinforced casing for chemical resistance

• 1:1 pressure ratio for consistent operation

• TPV + PTFE diaphragms for enhanced chemical resistance

• Very high flow capacity for industrial applications

• Handles solids up to 6 mm

• Maximum suction lift up to 4.5 m

• Large volume per cycle for efficient transfer

• Low noise operation (80 dB)

• Suitable for hazardous and ATEX environments

Applications

• Chemical transfer and dosing

• Acids, alkalis, and corrosive fluids

• Industrial processing systems

• Water and wastewater treatment

• Paints, coatings, and solvents

• Heavy-duty industrial fluid transfer

Technical Specifications

• Model: DDE 160 WRN
• Pump Type: Air Operated Double Diaphragm Pump
• Ratio: 1:1
• Max Fluid Pressure: 8 Bar
• Air Pressure Range: 2 – 8 Bar
• Flow Rate: Up to 175 L/min
• Max Solid Size: 6 mm
• Suction Lift: Up to 4.5 m
• Connection Type: BSP/NPT
• Connection Size: 1"
• Air Inlet Size: 3/8" BSP/NPT
• Volume per Cycle: 440 cc
• Noise Level: 80 dB(A)
• Weight: 6.4 kg
• Casing Material: Polypropylene (Glass Reinforced)
• Diaphragm Material: TPV + PTFE
