Argal Astra Evo AODD DDE 160 WRN Y TPT GLL Polypropylene Casing Air...
Argal Astra Evo AODD DDE 160 WRN Y TPT GLL Polypropylene Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Description
Description
High capacity air operated diaphragm pump, polypropylene AODD pump, industrial chemical transfer pump, corrosion-resistant fluid handling solution

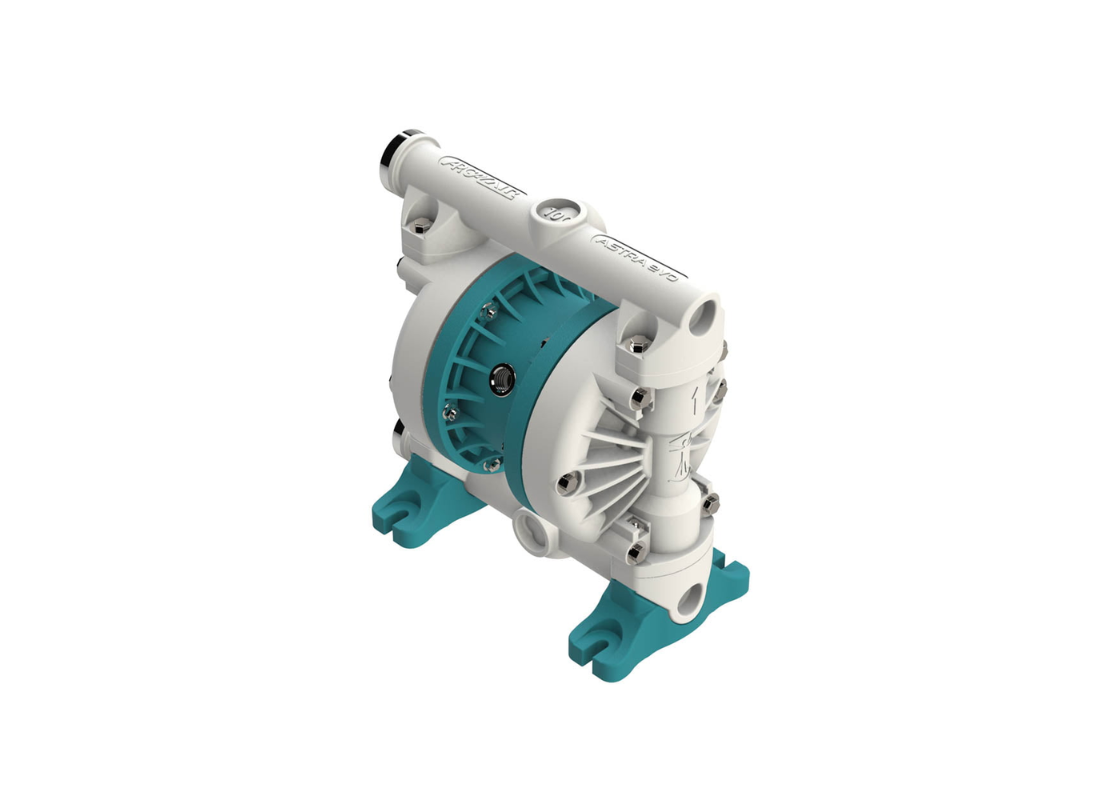

The Argal Astra Evo DDE 160 WRN is a high-capacity air operated double diaphragm (AODD) pump engineered for demanding industrial applications involving aggressive and corrosive fluids. Constructed with a polypropylene (PP) glass-reinforced casing, it offers excellent chemical resistance while maintaining strength and durability.
Operating on a 1:1 pressure ratio, the pump is powered by compressed air, ensuring reliable and safe performance without electrical components. This makes it ideal for hazardous and ATEX-rated environments.
Designed for heavy-duty applications, the DDE 160 WRN is capable of handling solids up to 6 mm and provides a suction lift of up to 4.5 meters. Its large displacement per cycle and high flow capacity make it suitable for continuous operation in industrial processes.
This configuration features TPV + PTFE diaphragm combination, offering enhanced chemical resistance along with improved mechanical durability for aggressive fluid handling.
Key Features
- Air operated double diaphragm (AODD) pump
- Polypropylene glass-reinforced casing for chemical resistance
- 1:1 pressure ratio for consistent operation
- TPV + PTFE diaphragms for enhanced chemical resistance
- Very high flow capacity for industrial applications
- Handles solids up to 6 mm
- Maximum suction lift up to 4.5 m
- Large volume per cycle for efficient transfer
- Low noise operation (80 dB)
- Suitable for hazardous and ATEX environments
Applications
- Chemical transfer and dosing
- Acids, alkalis, and corrosive fluids
- Industrial processing systems
- Water and wastewater treatment
- Paints, coatings, and solvents
- Heavy-duty industrial fluid transfer
Technical Specifications
- Model: DDE 160 WRN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 175 L/min
- Max Solid Size: 6 mm
- Suction Lift: Up to 4.5 m
- Connection Type: BSP/NPT
- Connection Size: 1"
- Air Inlet Size: 3/8" BSP/NPT
- Volume per Cycle: 440 cc
- Noise Level: 80 dB(A)
- Weight: 6.4 kg
- Casing Material: Polypropylene (Glass Reinforced)
- Diaphragm Material: TPV + PTFE
