Dosatron D9WL5 Water Powered Dosing Pumps

The Dosatron D9WL5 Series is a high-capacity range of water powered dosing pumps designed for accurate proportional injection of liquid concentrates, including chemicals, nutrients, fertilisers and treatment solutions, directly into water systems.

Operating entirely from water pressure, the D9WL5 dosing pumps require no electricity or external power source. As water passes through the unit, the concentrate is automatically injected in proportion to the water flow, ensuring consistent and reliable dosing even when system flow conditions change.

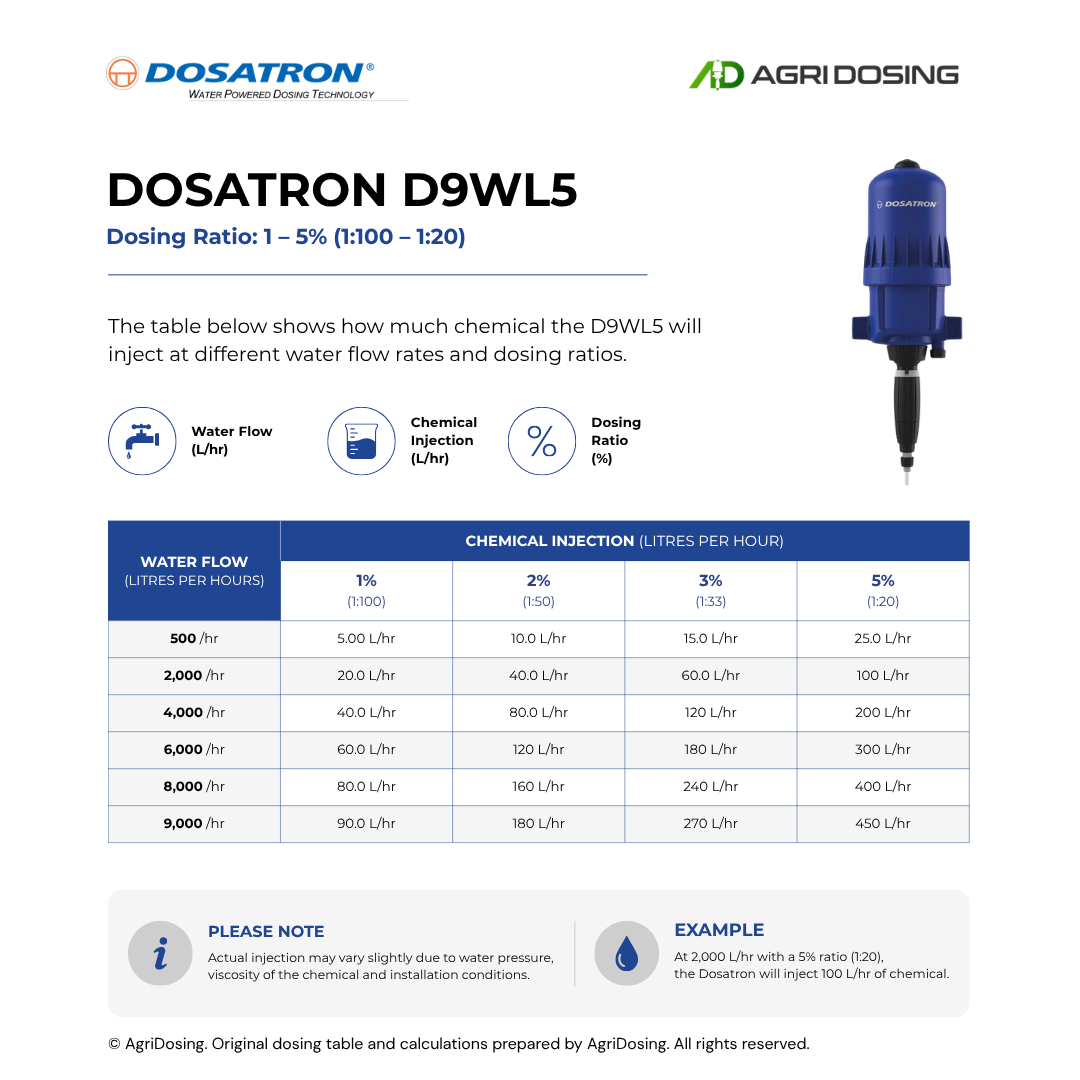

With an adjustable dosing range of 1–5% (1:100 to 1:20), the D9WL5 is designed for medium to higher concentration dosing applications. With a water flow range of 500–9,000 L/hr, these dosing pumps are suitable for large-scale fertigation, agriculture, irrigation, water treatment, industrial chemical injection, cleaning systems and specialised dosing applications.

The D9WL5 combines Dosatron’s proven proportional dosing technology with high-flow capability and robust construction, providing an efficient solution where accurate concentrate mixing, reliable performance and operation without electrical power are required.
