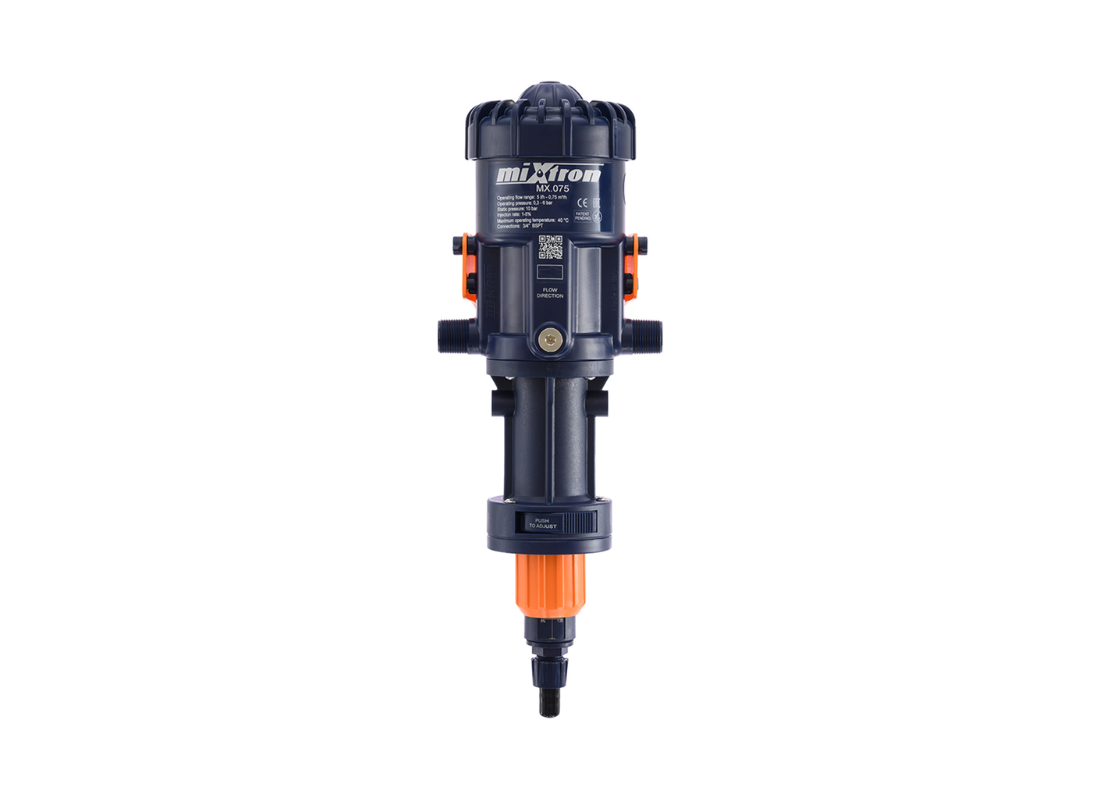

Mixtron MX075-VF 1–5% Water Powered Dosing Pump
Mixtron MX075-VF 1–5% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Mixtron MX075-VF 1–5% Water Powered Dosing Pump
Mixtron MX075-VF 1–5% Water Powered Dosing Pump is backordered and will ship as soon as it is back in stock.
Description
Description
Water-powered dosing pump, 1–5% dosing ratio, up to 750 l/hr flow, high chemical resistance materials, no electricity required
The Mixtron MX075-VF is a water-powered dosing pump designed for precise proportional chemical injection without the need for electrical power. Operating using water flow as its driving force, it provides a reliable and efficient solution for chemical dosing in remote and utility-free environments.
With an adjustable dosing ratio from 1% to 5% (1:100 to 1:20), this model is ideal for medium to high concentration dosing applications. It supports a maximum water flow rate of up to 750 L/h, ensuring stable and consistent performance across varying operating conditions.
Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to chemicals and wear. The VF Viton (Acidic) seals ensure compatibility with acidic chemicals, providing long-lasting durability.
The MX075-VF delivers consistent dosing accuracy of ±5% and repeatability of ±3%, ensuring reliable and precise chemical injection with minimal maintenance.

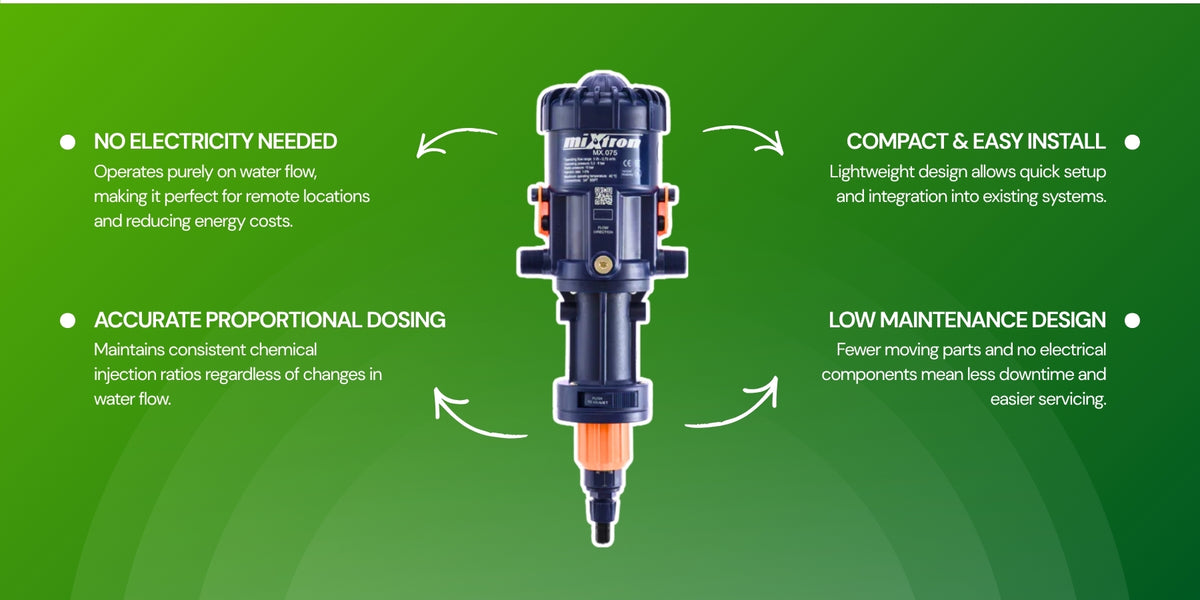

Key Features
- Water-powered operation (no electricity required)
- Adjustable dosing ratio: 1% – 5%
- Max flow rate: 750 L/h
- VF Viton (Acidic) seals for acidic compatibility
- High chemical resistance materials (POM, PP, HDPE, PA12)
- Accurate proportional dosing (±5% accuracy)
- Compact and durable design
- 3/4” BSPT connection for easy installation
Applications
- Water treatment systems
- Agriculture & fertigation
- Car wash systems
- Chemical dosing and injection
- Cleaning and sanitation systems
- Industrial processing
Technical Specifications
- Model: MX075-VF
- Dosing Ratio: 1% – 5% (1:100 – 1:20)
- Max Flow Rate: 750 L/hr
- Min Flow Rate: 5 L/hr
- Operating Pressure: 0.3 – 6 Bar
- Max Static Pressure: 10 Bar
- Operating Temperature: 5 – 40°C
- Seal Material: VF Viton (Acidic)
- Plastic Materials: POM, PP, HDPE, PA12
- Metal Components: AISI 316, Duplex
- Connection Size: 3/4” BSPT
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Mixtron MX075 Water Powered Dosing Pumps
The Mixtron MX075 Water Powered Dosing Pumps are compact, highly efficient systems designed to inject precise amounts of fertilisers, chemicals, and additives directly into water lines—without the need for electricity. Powered entirely by water flow, these pumps automatically deliver proportional dosing, adjusting in real time as flow rates change to maintain accuracy.
Ideal for small to medium-scale applications, the MX075 range is widely used in irrigation, greenhouses, livestock systems, and light industrial processes. Its key advantage is its simplicity and reliability: a water-driven mechanism that reduces operational costs, eliminates electrical dependency, and ensures consistent performance even in remote or off-grid environments.
What Is This Pump Used For
-

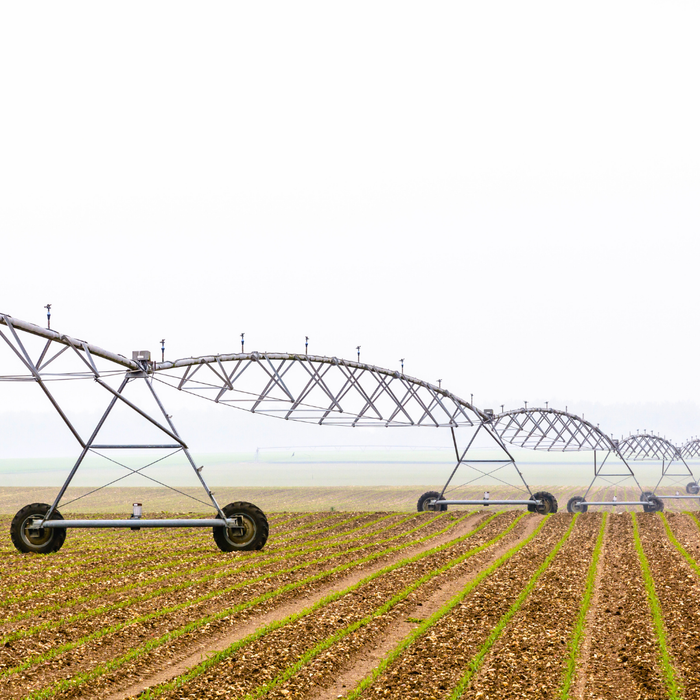

Fertigation Systems
Injects nutrients into irrigation lines for consistent plant feeding.
-
Greenhouse Growing
Supports precise dosing for controlled environments and improved crop quality.
-

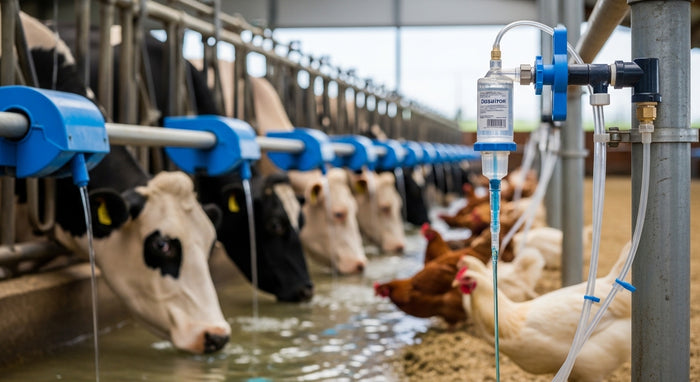

Livestock Water Medication
Delivers accurate dosing of supplements or treatments through drinking water.
-
Small Irrigation Networks
Ideal for farms and gardens requiring reliable, low-flow dosing solutions.

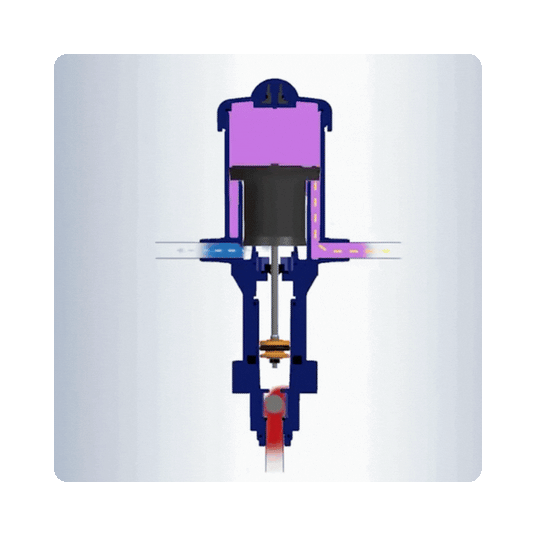

How a Mixtron Water Powered Dosing Pump Works
A Mixtron water powered dosing pump operates using the energy of flowing water to drive a proportional injection mechanism — no electricity, no external power source required.
As water flows through the pump body, it drives an internal piston that simultaneously draws liquid concentrate from a connected supply tank. The concentrate is then injected directly into the water stream in a fixed ratio relative to the water flow — so the more water that flows, the more concentrate is dosed, always maintaining the same ratio.
The dosing ratio is set manually by adjusting the control dial on the pump body, allowing the user to select the desired concentration from within the pump's rated range. Once set, the ratio remains consistent regardless of fluctuations in water pressure or flow rate, making it a reliable hands-free solution for fertiliser injection, chemical dosing, and nutrient delivery in low flow systems.
Compare the MX075 Series Range
Compare the full Mixtron MX075 range to find the right water powered dosing pump for your required dosing ratio, flow rate, application, and chemical compatibility.
| Facet | |||||
|---|---|---|---|---|---|
| By | |||||
| By | Mixtron | Mixtron | Mixtron | Mixtron | Mixtron |
| Model Code | |||||
| Model Code | |||||
| Price | |||||
| Price |
Regular price
$955.00 AUD
Unit price
|
Regular price
$930.00 AUD
Unit price
|
Regular price
$995.00 AUD
Unit price
|
Regular price
$1,320.00 AUD
Unit price
|
Regular price
$1,260.00 AUD
Unit price
|
| Flow Range | |||||
| Flow Range | |||||
| Dosing Ratio | |||||
| Dosing Ratio | |||||
| Pressure Range | |||||
| Pressure Range | |||||
| Seal Type | |||||
| Seal Type | |||||
| pH Range | |||||
| pH Range | |||||
| Connection Size | |||||
| Connection Size | |||||
| Body Material | |||||
| Body Material | |||||
