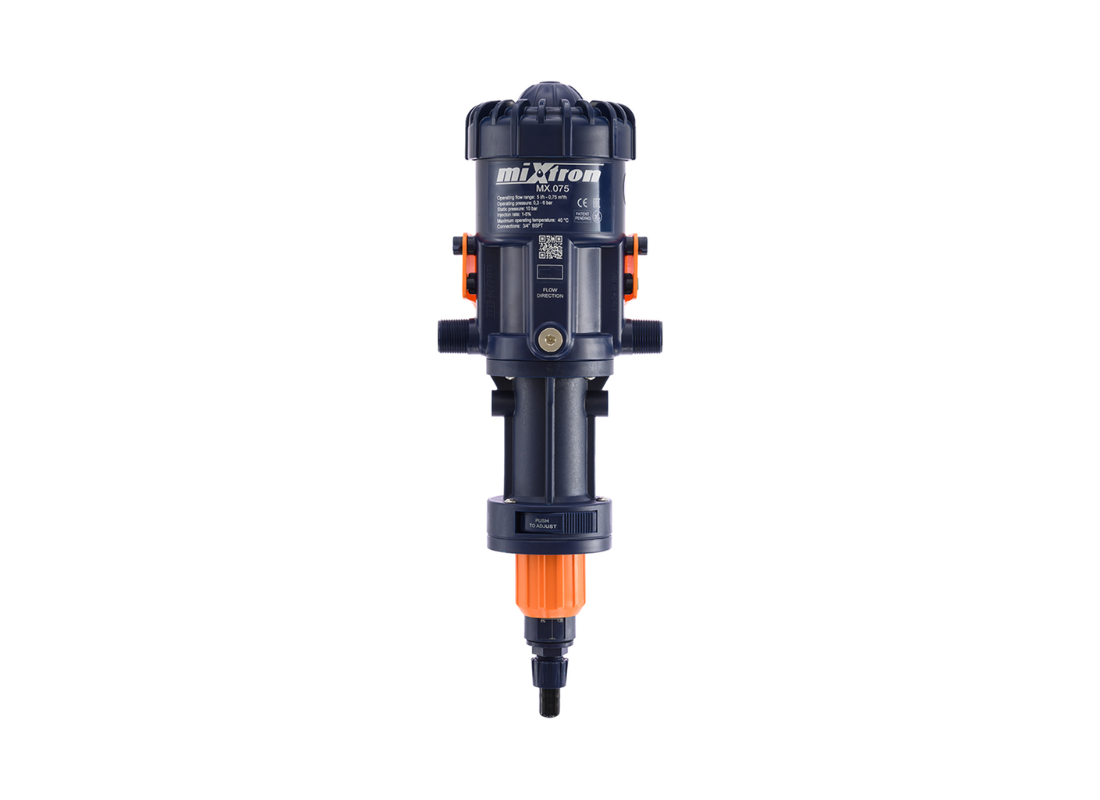

Mixtron MX075.P150-VF 1–5% Water Powered Dosing Pump

Water-powered dosing pump, 1–5% dosing ratio, up to 750 l/hr flow, high chemical resistance materials, no electricity required

The Mixtron MX075-VF is a water-powered dosing pump designed for precise proportional chemical injection without the need for electrical power. Operating using water flow as its driving force, it provides a reliable and efficient solution for chemical dosing in remote and utility-free environments.

With an adjustable dosing ratio from 1% to 5% (1:100 to 1:20), this model is ideal for medium to high concentration dosing applications. It supports a maximum water flow rate of up to 750 L/h, ensuring stable and consistent performance across varying operating conditions.

Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump offers excellent resistance to chemicals and wear. The VF Viton (Acidic) seals ensure compatibility with acidic chemicals, providing long-lasting durability.

The MX075-VF delivers consistent dosing accuracy of ±5% and repeatability of ±3%, ensuring reliable and precise chemical injection with minimal maintenance.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 1% – 5%

• Max flow rate: 750 L/h

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Compact and durable design

• 3/4” BSPT connection for easy installation

Applications

• Water treatment systems

• Agriculture & fertigation

• Car wash systems

• Chemical dosing and injection

• Cleaning and sanitation systems

• Industrial processing

Technical Specifications

• Model: MX075-VF

• Dosing Ratio: 1% – 5% (1:100 – 1:20)

• Max Flow Rate: 750 L/hr

• Min Flow Rate: 5 L/hr

• Operating Pressure: 0.3 – 6 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 3/4” BSPT
