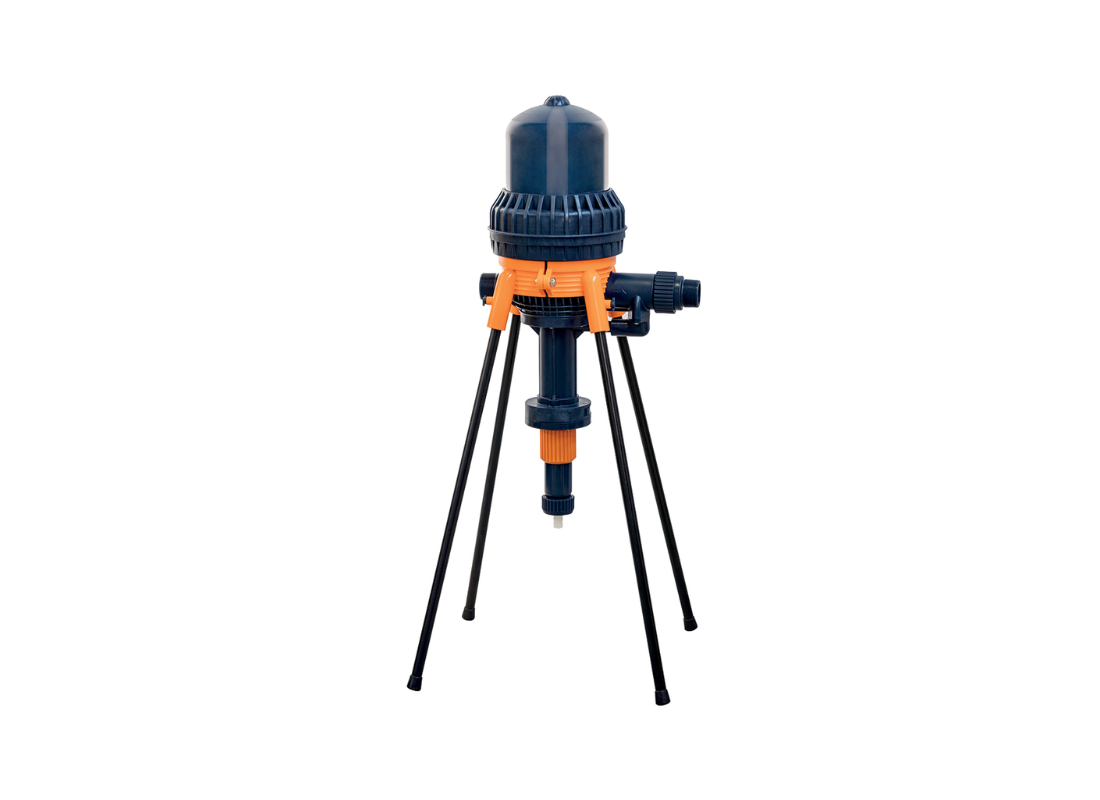

Mixtron MX1100-VF 0.5–5% Water Powered Dosing Pump with Built-In Bypass
Mixtron MX1100-VF 0.5–5% Water Powered Dosing Pump with Built-In Bypass is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Mixtron MX1100-VF 0.5–5% Water Powered Dosing Pump with Built-In By...
Mixtron MX1100-VF 0.5–5% Water Powered Dosing Pump with Built-In Bypass is backordered and will ship as soon as it is back in stock.
Description
Description
Water-powered dosing pump, 0.5–5% dosing ratio, up to 11,000 l/hr flow, built-in bypass system, no electricity required
The Mixtron MX1100-VF is a high-capacity water-powered dosing pump designed for proportional chemical injection without the need for electrical power. Engineered for industrial-scale applications, it operates using water flow, making it ideal for large systems and environments where electricity is unavailable or impractical.
With an adjustable dosing ratio from 0.5% to 5% (1:200 to 1:20), this model is well-suited for medium to high concentration chemical dosing. It supports a maximum water flow rate of up to 11,000 L/h, ensuring reliable performance in high-demand operations.
This version features a built-in bypass system, allowing dosing even at lower flow rates and improving operational flexibility and system stability. Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump delivers excellent chemical resistance and long service life.
Equipped with VF Viton (Acidic) seals, the MX1100-VF is ideal for acidic chemical dosing applications. It provides consistent dosing accuracy (±5%) and repeatability (±3%), ensuring dependable and precise chemical injection.
Key Features
- Water-powered operation (no electricity required)
- Adjustable dosing ratio: 0.5% – 5%
- Max flow rate: 11,000 L/h
- Built-in bypass system for low-flow operation
- VF Viton (Acidic) seals for acidic compatibility
- High chemical resistance materials (POM, PP, HDPE, PA12)
- Accurate proportional dosing (±5% accuracy)
- Heavy-duty industrial design
- 2” BSPT connection
Applications
- Large-scale water treatment systems
- Agriculture & fertigation
- Industrial chemical dosing
- Car wash systems
- Cleaning and sanitation
- Process industries
Technical Specifications
- Model: MX1100-VF
- Dosing Ratio: 0.5% – 5% (1:200 – 1:20)
- Max Flow Rate: 11,000 L/hr
- Min Flow Rate: 1,000 L/hr
- Operating Pressure: 0.3 – 8 Bar
- Max Static Pressure: 10 Bar
- Operating Temperature: 5 – 40°C
- Seal Material: VF Viton (Acidic)
- Plastic Materials: POM, PP, HDPE, PA12
- Metal Components: AISI 316, Duplex
- Connection Size: 2” BSPT
