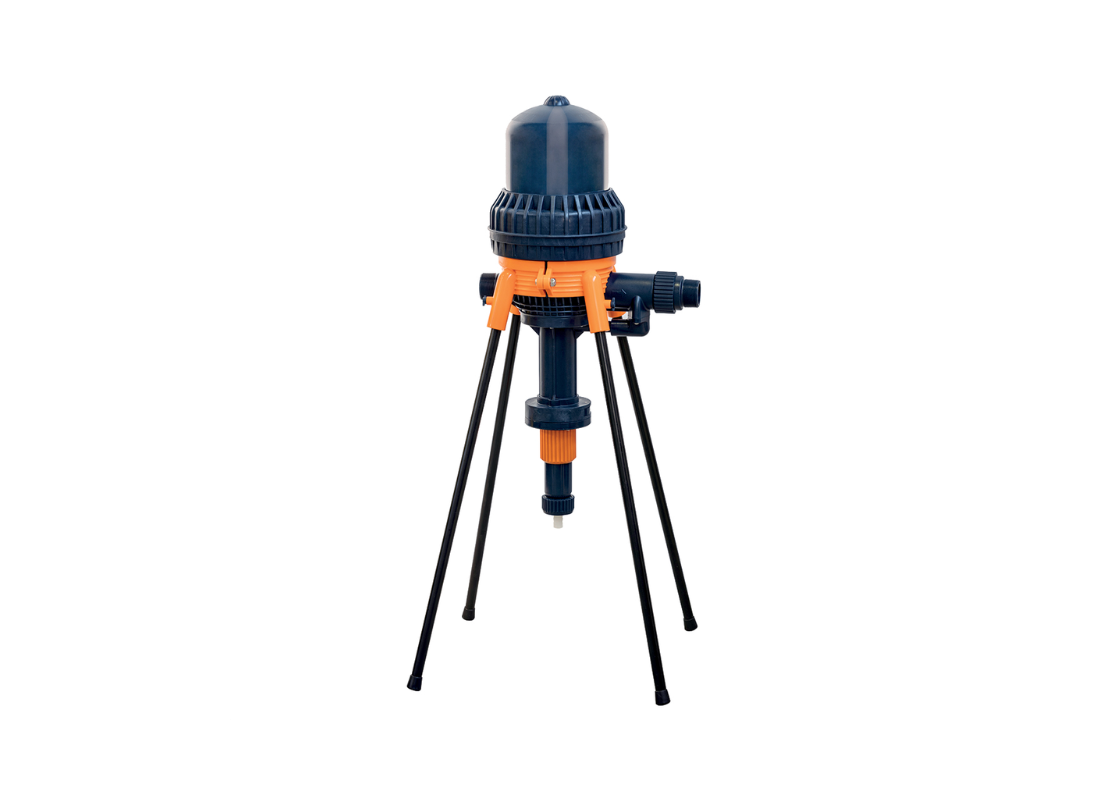

Mixtron MX1100.P055-VF 0.5–5% Water Powered Dosing Pump with Built-In Bypass

Water-powered dosing pump, 0.5–5% dosing ratio, up to 11,000 l/hr flow, built-in bypass system, no electricity required

The Mixtron MX1100-VF is a high-capacity water-powered dosing pump designed for proportional chemical injection without the need for electrical power. Engineered for industrial-scale applications, it operates using water flow, making it ideal for large systems and environments where electricity is unavailable or impractical.

With an adjustable dosing ratio from 0.5% to 5% (1:200 to 1:20), this model is well-suited for medium to high concentration chemical dosing. It supports a maximum water flow rate of up to 11,000 L/h, ensuring reliable performance in high-demand operations.

This version features a built-in bypass system, allowing dosing even at lower flow rates and improving operational flexibility and system stability. Constructed from durable materials including POM, PP, HDPE, and PA12, along with AISI 316 and Duplex stainless steel components, the pump delivers excellent chemical resistance and long service life.

Equipped with VF Viton (Acidic) seals, the MX1100-VF is ideal for acidic chemical dosing applications. It provides consistent dosing accuracy (±5%) and repeatability (±3%), ensuring dependable and precise chemical injection.

Key Features

• Water-powered operation (no electricity required)

• Adjustable dosing ratio: 0.5% – 5%

• Max flow rate: 11,000 L/h

• Built-in bypass system for low-flow operation

• VF Viton (Acidic) seals for acidic compatibility

• High chemical resistance materials (POM, PP, HDPE, PA12)

• Accurate proportional dosing (±5% accuracy)

• Heavy-duty industrial design

• 2” BSPT connection

Applications

• Large-scale water treatment systems

• Agriculture & fertigation

• Industrial chemical dosing

• Car wash systems

• Cleaning and sanitation

• Process industries

Technical Specifications

• Model: MX1100-VF

• Dosing Ratio: 0.5% – 5% (1:200 – 1:20)

• Max Flow Rate: 11,000 L/hr

• Min Flow Rate: 1,000 L/hr

• Operating Pressure: 0.3 – 8 Bar

• Max Static Pressure: 10 Bar

• Operating Temperature: 5 – 40°C

• Seal Material: VF Viton (Acidic)

• Plastic Materials: POM, PP, HDPE, PA12

• Metal Components: AISI 316, Duplex

• Connection Size: 2” BSPT
