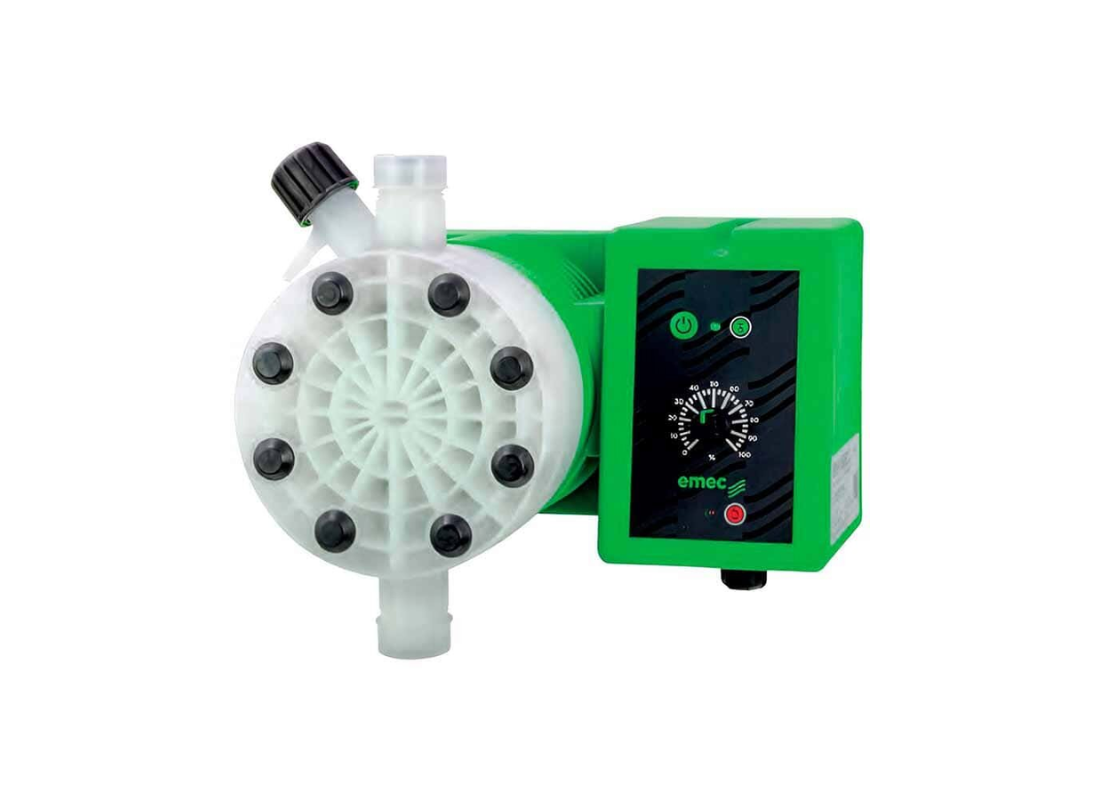

EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump
EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic...
EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, wall mount, 35 l/hr @ 1 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, fixed stroke length, adjustable speed, includes installation kit
The EMEC TACO 01-35-VF is an entry-level electronic dosing pump from the T Series, designed for reliable and straightforward chemical injection in water treatment and industrial applications. It is ideal for systems requiring higher flow rates at low pressure with simple and dependable operation.

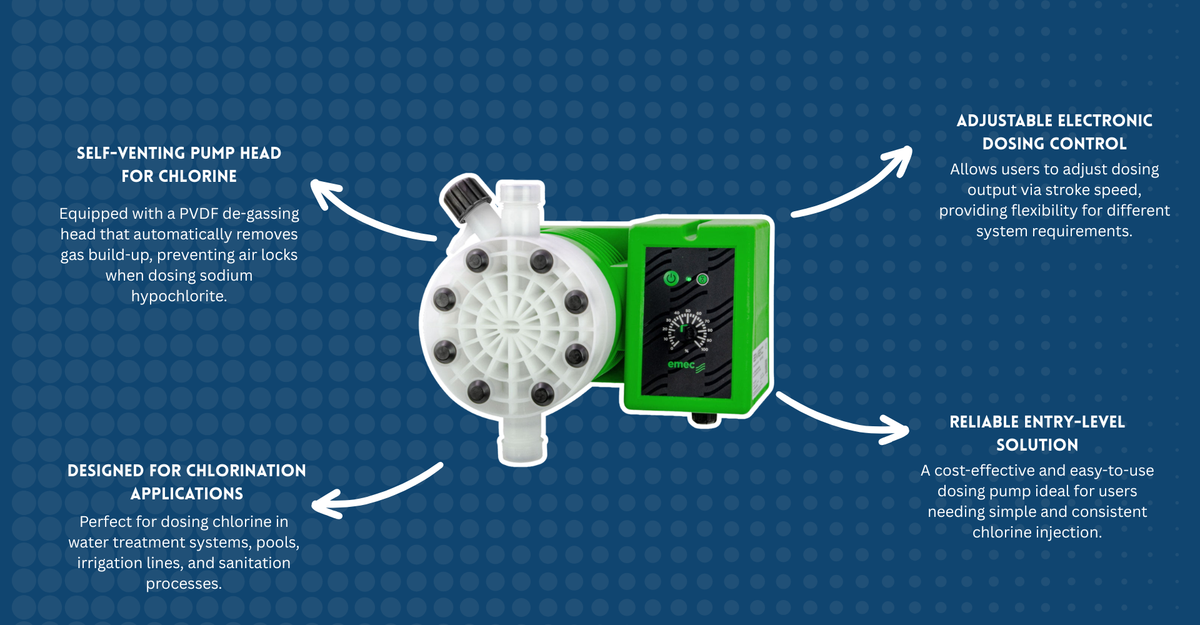

This model features a self-venting (de-gassing) PVDF pump head, making it particularly suitable for chemicals that release gas, such as sodium hypochlorite. This design prevents air locking, ensuring consistent dosing accuracy and smooth pump operation.
The VF (Viton/FKM) seal configuration provides excellent resistance to acidic and aggressive chemicals, making it suitable for a wide range of dosing applications. Built with a high-resistance diaphragm, the pump ensures durability and long service life with minimal maintenance.
Designed as a constant dosing pump, the TACO series offers simple manual control, making it a cost-effective and practical solution for standard dosing requirements. Its wall-mounted design allows easy installation and integration into dosing systems.
Key Features
- Entry-level constant dosing pump
- Self-venting (de-gassing) pump head for gas-releasing chemicals
- PVDF pump head for strong chemical resistance
- VF (FKM/Viton) seals for acidic and aggressive chemicals
- High flow rate up to 35 L/hr
- High-resistance diaphragm for durability
- Simple manual control operation
- Wall-mounted compact design
Applications
- Chlorine dosing systems
- Water treatment & disinfection
- Chemical dosing systems
- Cooling towers
- Industrial process dosing
- Swimming pools & sanitation
Technical Specifications
- Model: TACO 01-35-VF
- Max Flow Rate: 35 L/hr
- Max Pressure: 1 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Constant dosing (manual)
- Pump Head Material: PVDF (Self-venting)
- Seal Material: VF (FKM/Viton)
- Diaphragm: High-resistance diaphragm
- Mounting: Wall mounted
- Venting: Self-venting (de-gassing)
- Power Supply: 230V AC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC TACO Series Electronic Chlorine Dosing Pumps
The EMEC TACO Series is an entry-level range of electronic solenoid dosing pumps with self-venting pump heads, specifically designed for accurate and reliable chlorine injection. Featuring a PVDF self-venting (de-gassing) head, the TACO range automatically removes gas build-up caused by sodium hypochlorite, ensuring consistent dosing performance and preventing air lock issues.
These pumps are ideal for chlorination systems, water treatment, pools, irrigation disinfection, and sanitation applications where stable chlorine dosing is critical. With simple controls, adjustable dosing output, and robust construction, the TACO Series provides a cost-effective and dependable solution for low to medium flow chlorine dosing systems.
Compare the TACO Series Range
Compare the full EMEC TACO range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet |
EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump View details |
EMEC TACO 03-20-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump View details |
|---|---|---|
| By | ||
| By | EMEC | EMEC |
| Model Code | ||
| Model Code | ||
| Price | ||
| Price |
Regular price
$1,950.00 AUD
Unit price
|
Regular price
$1,950.00 AUD
Unit price
|
| Flow Range | ||
| Flow Range | ||
| Dosing Ratio | ||
| Dosing Ratio | ||
| Pressure Range | ||
| Pressure Range | ||
| Seal Type | ||
| Seal Type | ||
| pH Range | ||
| pH Range | ||
| Connection Size | ||
| Connection Size | ||
| Body Material | ||
| Body Material | ||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
