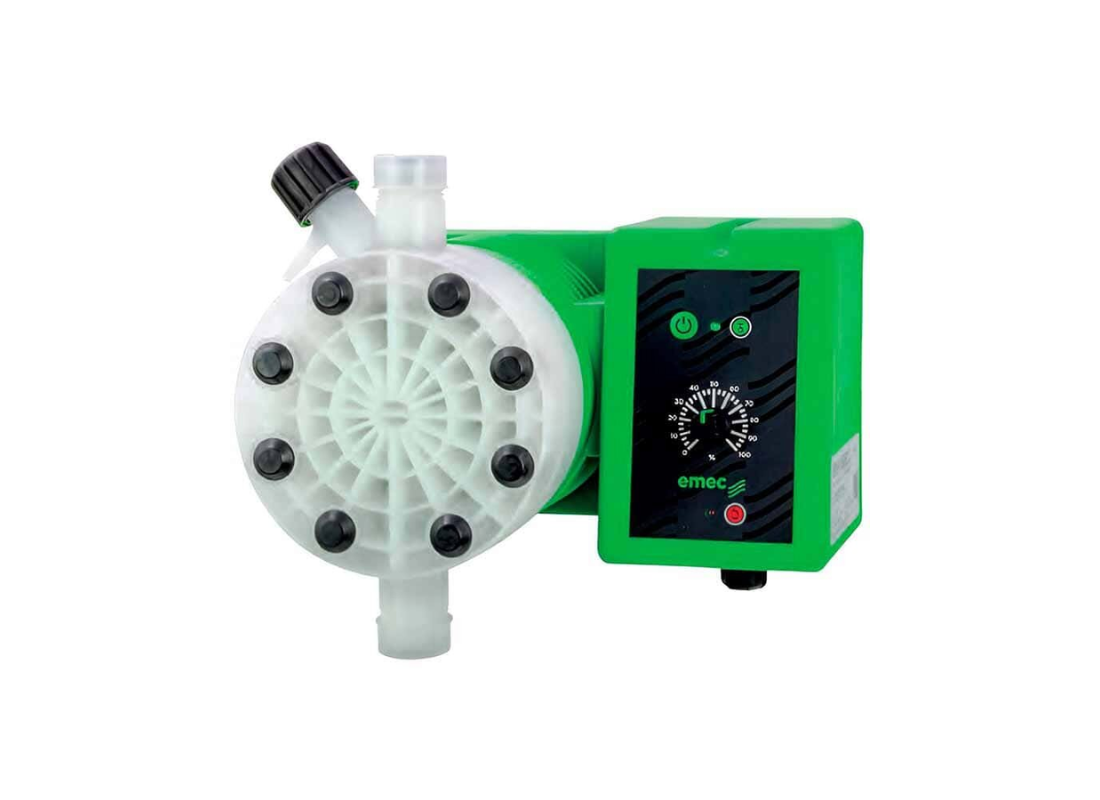

EMEC TACO 01-35-VF Entry-Level Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 35 l/hr @ 1 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, fixed stroke length, adjustable speed, includes installation kit

The EMEC TACO 01-35-VF is an entry-level electronic dosing pump from the T Series, designed for reliable and straightforward chemical injection in water treatment and industrial applications. It is ideal for systems requiring higher flow rates at low pressure with simple and dependable operation.

This model features a self-venting (de-gassing) PVDF pump head, making it particularly suitable for chemicals that release gas, such as sodium hypochlorite. This design prevents air locking, ensuring consistent dosing accuracy and smooth pump operation.

The VF (Viton/FKM) seal configuration provides excellent resistance to acidic and aggressive chemicals, making it suitable for a wide range of dosing applications. Built with a high-resistance diaphragm, the pump ensures durability and long service life with minimal maintenance.

Designed as a constant dosing pump, the TACO series offers simple manual control, making it a cost-effective and practical solution for standard dosing requirements. Its wall-mounted design allows easy installation and integration into dosing systems.

Key Features

• Entry-level constant dosing pump

• Self-venting (de-gassing) pump head for gas-releasing chemicals

• PVDF pump head for strong chemical resistance

• VF (FKM/Viton) seals for acidic and aggressive chemicals

• High flow rate up to 35 L/hr

• High-resistance diaphragm for durability

• Simple manual control operation

• Wall-mounted compact design

Applications

• Chlorine dosing systems

• Water treatment & disinfection

• Chemical dosing systems

• Cooling towers

• Industrial process dosing

• Swimming pools & sanitation

Technical Specifications

• Model: TACO 01-35-VF

• Max Flow Rate: 35 L/hr

• Max Pressure: 1 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual)

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF (FKM/Viton)

• Diaphragm: High-resistance diaphragm

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 230V AC

• Protection Rating: IP65
