EMEC TCO 03-30-VF Entry-Level Wall Mounted Electronic Chemical Dosing Pump
EMEC TCO 03-30-VF Entry-Level Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC TCO 03-30-VF Entry-Level Wall Mounted Electronic Chemical Dosi...
EMEC TCO 03-30-VF Entry-Level Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description

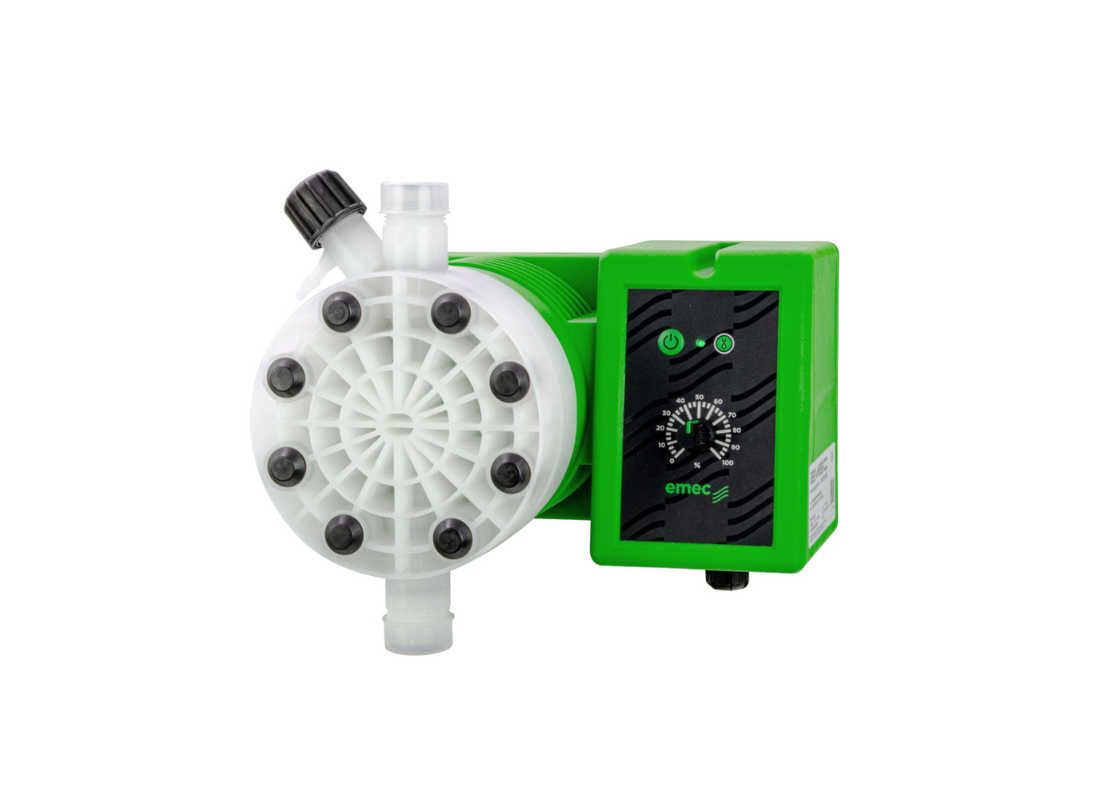

Metering pump, wall mount, 30 l/hr @ 3 bar, PVDF head with Viton seals for chlorine and acidic chemicals, fixed stroke length, manual adjustment via potentiometer, includes installation kit
The EMEC TCO 03-30-VF is an entry-level electronic chemical dosing pump designed for simple, reliable, and cost-effective chemical injection in low-pressure applications. Part of the EMEC T Series, this model is ideal for basic dosing tasks where consistent flow and ease of use are key.
Operating at up to 30 L/hr with a maximum pressure of 3 bar, the TCO model is suited for applications such as water treatment, agriculture, and general chemical dosing where high pressure is not required. Its constant dosing functionality ensures steady chemical delivery, controlled via a front-mounted potentiometer for easy manual adjustment.
Built with a durable PVDF pump head and Viton (VF) seals, the pump offers strong resistance to aggressive chemicals such as chlorine and acids. The high-resistance diaphragm and solenoid-driven mechanism ensure dependable performance and long service life.
Designed for wall-mounted installation, the TCO series provides a compact and practical solution for straightforward dosing requirements.
Key Features
- Simple constant dosing operation (entry-level model)
- Manual adjustment via front potentiometer
- Flow rate up to 30 L/hr
- Low-pressure operation (up to 3 bar)
- PVDF pump head for chemical resistance
- Viton (VF) seals suitable for acidic chemicals
- High-resistance diaphragm for durability
- Wall-mounted compact design
- Reliable solenoid-driven mechanism
Applications
- Chlorine dosing systems
- Water treatment & disinfection
- Agriculture & fertigation
- Cooling towers
- Car wash systems
- General low-pressure chemical dosing
Technical Specifications
- Model: TCO 03-30-VF
- Max Flow Rate: 30 L/hr
- Max Pressure: 3 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Constant dosing (manual via potentiometer)
- Pump Head Material: PVDF
- Seal Material: Viton (VF)
- Diaphragm: High-resistance diaphragm
- Mounting: Wall mounted
- Venting: Manual (standard, optional configurations available)
- Power Supply: 230V AC (typical)
- Protection Rating: IP65 (typical for EMEC pumps)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC TCO Electronic Chemical Dosing Pumps
The EMEC TCO Series is a range of electronic solenoid-driven dosing pumps designed for precise and reliable chemical injection in water treatment, agriculture, and industrial applications. Unlike water-powered injectors, the TCO range uses an electric motor and adjustable stroke/speed control to accurately dose chemicals, making it ideal for systems requiring consistent dosing regardless of water flow.
The TCO Series is commonly used in chlorination systems, water treatment plants, pools, irrigation dosing, and industrial processes where controlled chemical injection is critical. With durable construction, simple adjustment, and consistent performance, EMEC TCO pumps provide a dependable solution for accurate dosing in both continuous and controlled environments.
Compare the TCO Series Range
Compare the full EMEC TCO range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | ||
|---|---|---|
| By | ||
| By | EMEC | EMEC |
| Model Code | ||
| Model Code | ||
| Price | ||
| Price |
Regular price
$1,950.00 AUD
Unit price
|
Regular price
$1,535.00 AUD
Unit price
|
| Flow Range | ||
| Flow Range | ||
| Dosing Ratio | ||
| Dosing Ratio | ||
| Pressure Range | ||
| Pressure Range | ||
| Seal Type | ||
| Seal Type | ||
| pH Range | ||
| pH Range | ||
| Connection Size | ||
| Connection Size | ||
| Body Material | ||
| Body Material | ||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
