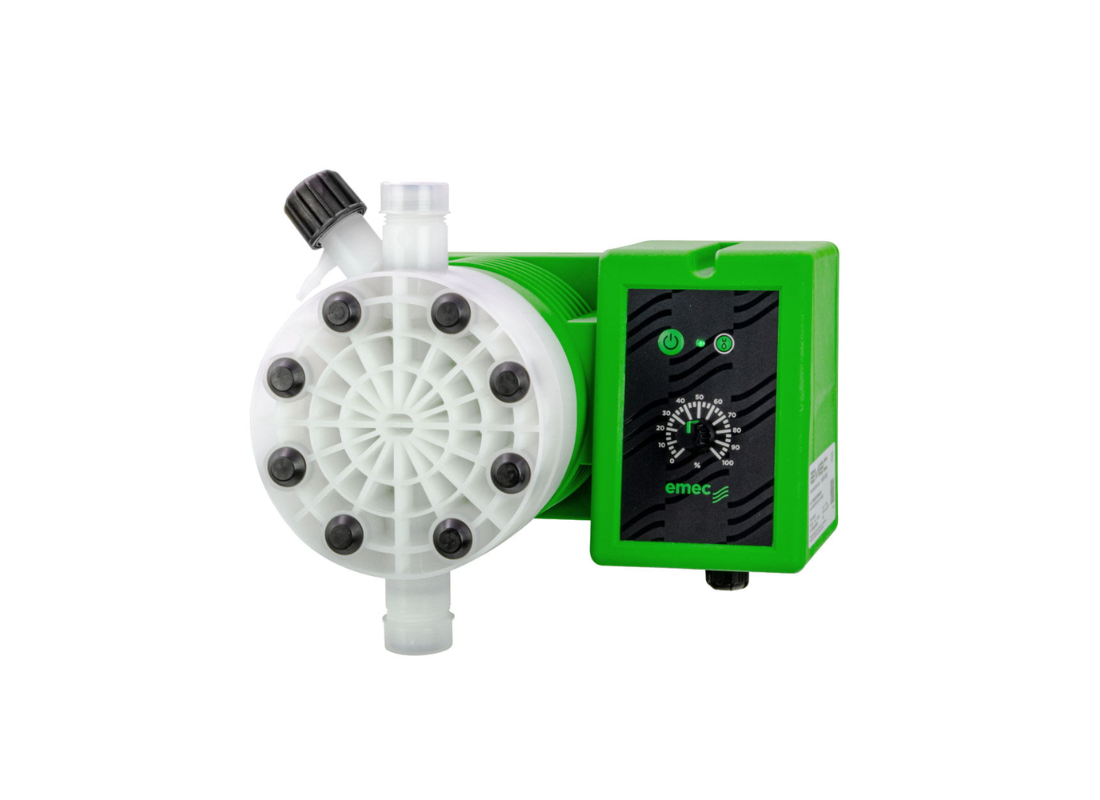

EMEC TCO 03-30-VF Entry-Level Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 30 l/hr @ 3 bar, PVDF head with Viton seals for chlorine and acidic chemicals, fixed stroke length, manual adjustment via potentiometer, includes installation kit

The EMEC TCO 03-30-VF is an entry-level electronic chemical dosing pump designed for simple, reliable, and cost-effective chemical injection in low-pressure applications. Part of the EMEC T Series, this model is ideal for basic dosing tasks where consistent flow and ease of use are key.

Operating at up to 30 L/hr with a maximum pressure of 3 bar, the TCO model is suited for applications such as water treatment, agriculture, and general chemical dosing where high pressure is not required. Its constant dosing functionality ensures steady chemical delivery, controlled via a front-mounted potentiometer for easy manual adjustment.

Built with a durable PVDF pump head and Viton (VF) seals, the pump offers strong resistance to aggressive chemicals such as chlorine and acids. The high-resistance diaphragm and solenoid-driven mechanism ensure dependable performance and long service life.

Designed for wall-mounted installation, the TCO series provides a compact and practical solution for straightforward dosing requirements.

Key Features

• Simple constant dosing operation (entry-level model)

• Manual adjustment via front potentiometer

• Flow rate up to 30 L/hr

• Low-pressure operation (up to 3 bar)

• PVDF pump head for chemical resistance

• Viton (VF) seals suitable for acidic chemicals

• High-resistance diaphragm for durability

• Wall-mounted compact design

• Reliable solenoid-driven mechanism

Applications

• Chlorine dosing systems

• Water treatment & disinfection

• Agriculture & fertigation

• Cooling towers

• Car wash systems

• General low-pressure chemical dosing

Technical Specifications

• Model: TCO 03-30-VF

• Max Flow Rate: 30 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Constant dosing (manual via potentiometer)

• Pump Head Material: PVDF

• Seal Material: Viton (VF)

• Diaphragm: High-resistance diaphragm

• Mounting: Wall mounted

• Venting: Manual (standard, optional configurations available)

• Power Supply: 230V AC (typical)

• Protection Rating: IP65 (typical for EMEC pumps)
