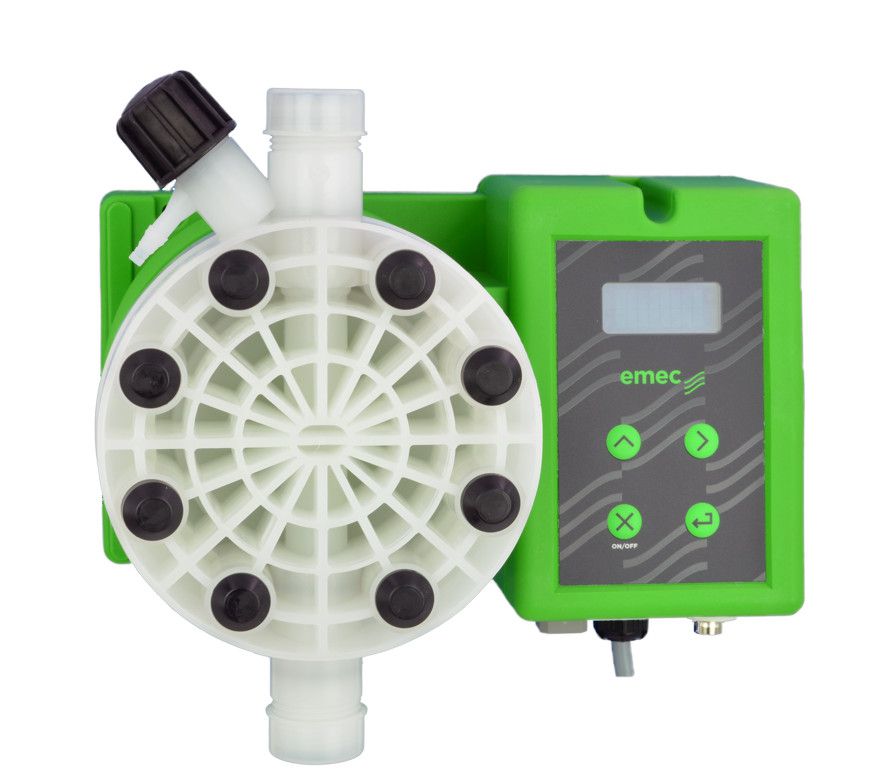

EMEC TMSMF-VF 03-30 Digital Wall Mounted Electronic Chemical Dosing Pump
EMEC TMSMF-VF 03-30 Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC TMSMF-VF 03-30 Digital Wall Mounted Electronic Chemical Dosing...
EMEC TMSMF-VF 03-30 Digital Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, wall mount, 30 l/hr @ 3 bar, PVDF pump head for chemical dosing, multifunction digital control, includes installation kit
The EMEC TMSMF-VF 03-30 is a high-performance digital dosing pump from the T Series, designed for precise chemical injection in water treatment, agriculture, and industrial applications. It is ideal for systems requiring higher flow rates at moderate pressure with advanced dosing control.
As part of the multifunction (MF) digital range, this model offers enhanced control capabilities including proportional dosing, external signal input, and programmable operation. This allows for accurate and responsive chemical dosing based on system requirements.
The pump features a PVDF pump head, providing excellent resistance to aggressive and corrosive chemicals. The VF (Viton/FKM) seal configuration ensures compatibility with acidic chemicals and demanding chemical environments.
Built with a high-strength diaphragm, the unit ensures long service life and reliable operation with minimal maintenance. Its digital interface allows precise adjustment of dosing parameters, while the wall-mounted design enables easy installation and integration into existing systems.
Key Features
- Multifunction digital dosing control (MF version)
- High flow rate up to 30 L/hr
- PVDF pump head for superior chemical resistance
- VF (FKM/Viton) seals for acidic and aggressive chemicals
- Proportional dosing capability with external input options
- Programmable operation for flexible dosing control
- High-strength diaphragm for durability
- Manual or automatic venting options
- Wall-mounted compact design
Applications
- Water treatment & disinfection
- Chemical processing
- Acid dosing systems
- Cooling towers
- Agriculture & fertigation
- Industrial dosing systems
- Swimming pools & sanitation
Technical Specifications
- Model: TMSMF-VF 03-30
- Max Flow Rate: 30 L/hr
- Max Pressure: 3 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Multifunction digital (MF)
- Pump Head Material: PVDF
- Seal Material: VF (FKM/Viton)
- Diaphragm: High-resistance diaphragm
- Mounting: Wall mounted
- Venting: Manual / Automatic
- Power Supply: 230V AC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC TMSMF Series Digital Advanced Chemical Dosing Pumps

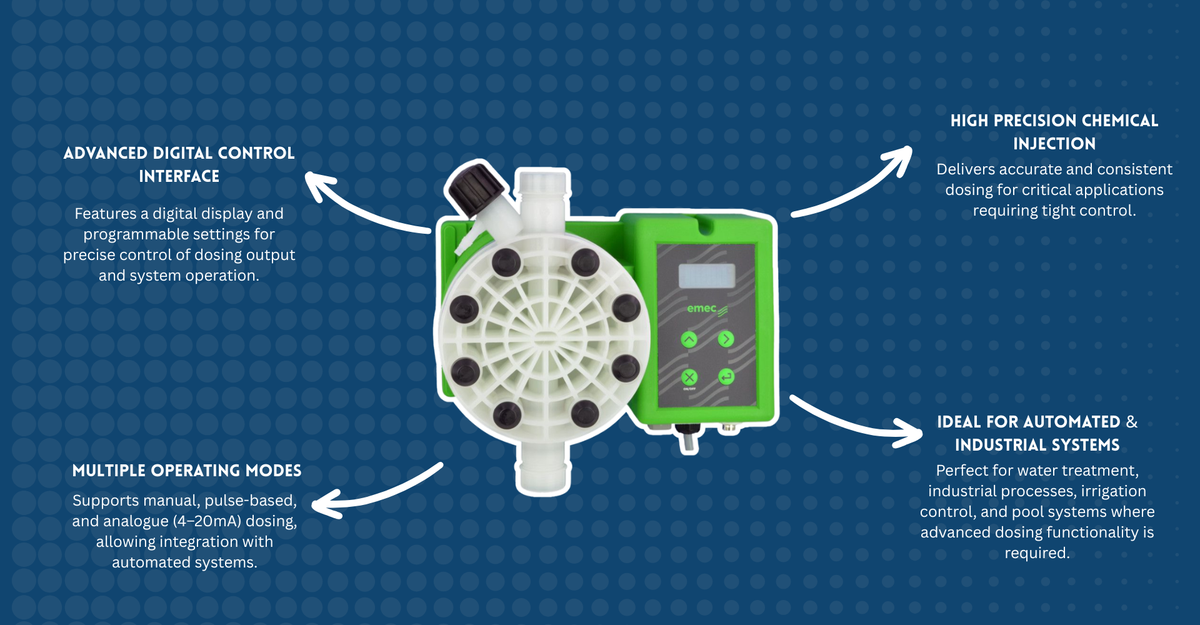

The EMEC TMSMF Series is an advanced range of digital solenoid-driven dosing pumps designed for high-precision chemical injection and full system control. Featuring a digital interface, the TMSMF allows for accurate adjustment of dosing parameters and supports multiple operating modes, making it ideal for applications where precision and flexibility are critical.
The TMSMF Series is commonly used in water treatment plants, industrial processes, irrigation systems, pools, and sanitation applications where automated or signal-based dosing is required. With options for external control inputs such as pulse (water meter), analogue (4–20mA), and level sensors, the TMSMF provides a highly adaptable solution for complex dosing systems.
Compare the TACO Series Range
Compare the full EMEC TACO range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | |
|---|---|
| By | |
| By | EMEC |
| Model Code | |
| Model Code | |
| Price | |
| Price |
Regular price
$2,525.00 AUD
Unit price
|
| Flow Range | |
| Flow Range | |
| Dosing Ratio | |
| Dosing Ratio | |
| Pressure Range | |
| Pressure Range | |
| Seal Type | |
| Seal Type | |
| pH Range | |
| pH Range | |
| Connection Size | |
| Connection Size | |
| Body Material | |
| Body Material |
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
