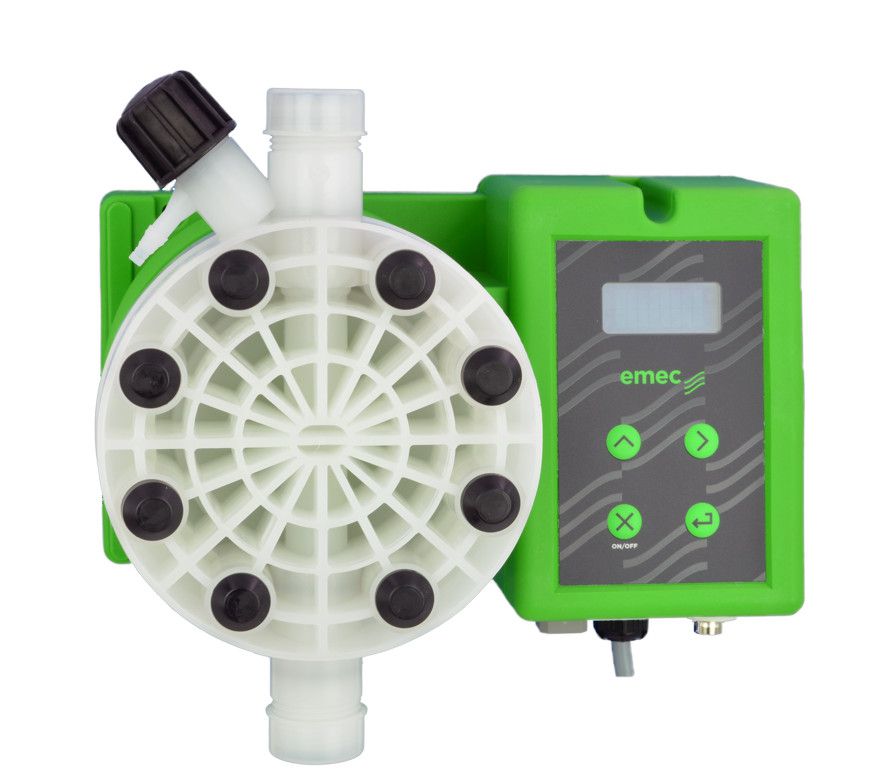

EMEC TMSMF-VF 03-30 Digital Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 30 l/hr @ 3 bar, PVDF pump head for chemical dosing, multifunction digital control, includes installation kit

The EMEC TMSMF-VF 03-30 is a high-performance digital dosing pump from the T Series, designed for precise chemical injection in water treatment, agriculture, and industrial applications. It is ideal for systems requiring higher flow rates at moderate pressure with advanced dosing control.

As part of the multifunction (MF) digital range, this model offers enhanced control capabilities including proportional dosing, external signal input, and programmable operation. This allows for accurate and responsive chemical dosing based on system requirements.

The pump features a PVDF pump head, providing excellent resistance to aggressive and corrosive chemicals. The VF (Viton/FKM) seal configuration ensures compatibility with acidic chemicals and demanding chemical environments.

Built with a high-strength diaphragm, the unit ensures long service life and reliable operation with minimal maintenance. Its digital interface allows precise adjustment of dosing parameters, while the wall-mounted design enables easy installation and integration into existing systems.

Key Features

• Multifunction digital dosing control (MF version)

• High flow rate up to 30 L/hr

• PVDF pump head for superior chemical resistance

• VF (FKM/Viton) seals for acidic and aggressive chemicals

• Proportional dosing capability with external input options

• Programmable operation for flexible dosing control

• High-strength diaphragm for durability

• Manual or automatic venting options

• Wall-mounted compact design

Applications

• Water treatment & disinfection

• Chemical processing

• Acid dosing systems

• Cooling towers

• Agriculture & fertigation

• Industrial dosing systems

• Swimming pools & sanitation

Technical Specifications

• Model: TMSMF-VF 03-30

• Max Flow Rate: 30 L/hr

• Max Pressure: 3 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Multifunction digital (MF)

• Pump Head Material: PVDF

• Seal Material: VF (FKM/Viton)

• Diaphragm: High-resistance diaphragm

• Mounting: Wall mounted

• Venting: Manual / Automatic

• Power Supply: 230V AC

• Protection Rating: IP65
