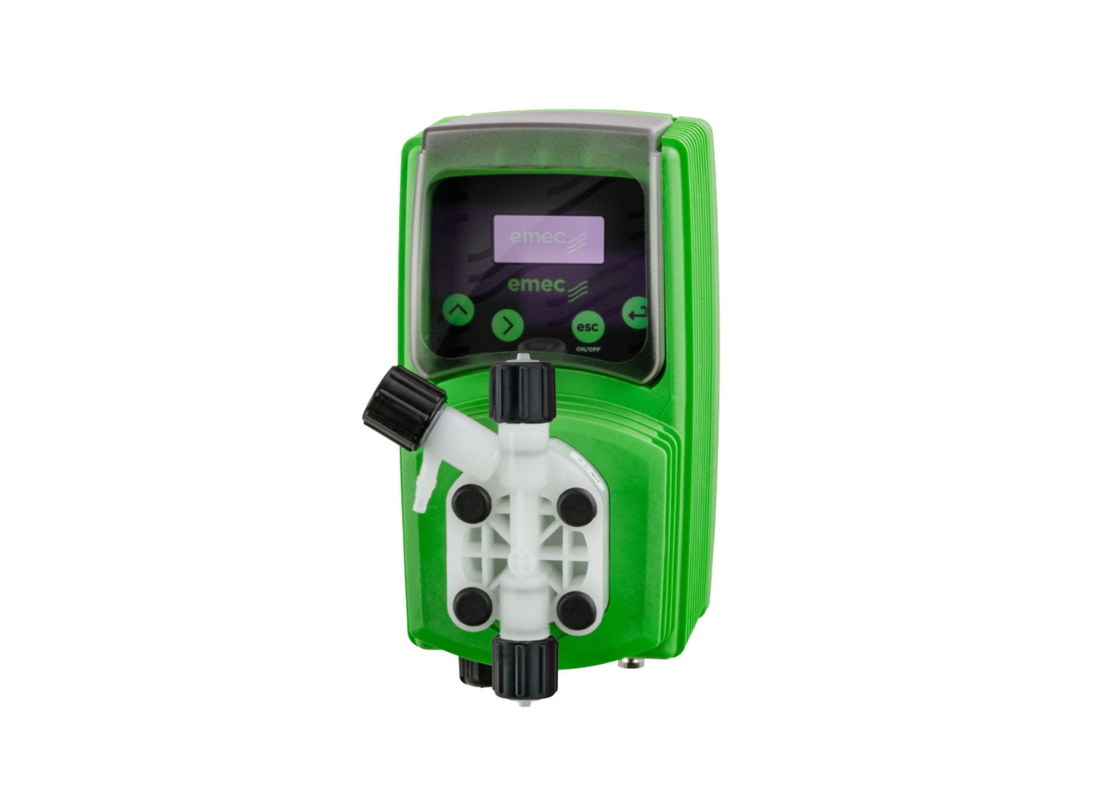

EMEC VAMF 07-04-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump
EMEC VAMF 07-04-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
EMEC dosing pumps and control instruments are covered by a 5-year manufacturer’s warranty from the date of purchase for manufacturing defects only. PRIUS pumps are covered by a 2-year manufacturer’s warranty.
To claim warranty, the product must be returned to the manufacturer, authorised distributor or nominated assessment location with proof of purchase. The unit will be inspected and repaired or replaced if a manufacturing defect is confirmed.
CONDITONS
- Product must be installed, operated and maintained as per manufacturer instructions.
- Product must be accessible for inspection, servicing or removal.
- Proof of purchase is required for all warranty claims.
- Warranty repairs or replacements do not extend the full original warranty period, except where required under the manufacturer’s warranty terms.
- Periodic maintenance is required to ensure correct operation.
NOT COVERED
- Incorrect installation, misuse or operation outside specifications
- Lack of maintenance or unauthorised servicing
- Damage caused by transport, external factors or environmental conditions
- Wear parts, removable parts or consumable components
- Damage caused by chemical incompatibility or incorrect chemical use
- Damage caused by water impurities, debris, scale or poor water quality
- Any damage caused by failure to follow the product instructions
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
EMEC VAMF 07-04-VF Digital Self-Venting Wall Mounted Electronic Che...
EMEC VAMF 07-04-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump is backordered and will ship as soon as it is back in stock.
Specifications
Specifications
-
Model Code
-
Flow Range
-
Dosing Ratio
-
Pressure Range
-
Seal Type
-
pH Range
-
Connection Size
-
Body Material
-
Applications
Description
Description
Metering pump, wall mount, 4 l/hr @ 7 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, multifunction digital control, includes installation kit
The EMEC VAMF 07-04-VF is a high-performance digital multifunction dosing pump from the V Series, designed for precise chemical injection in demanding water treatment, industrial, and process applications. It delivers reliable and accurate dosing with advanced electronic control and robust solenoid-driven technology.
This model is equipped with a self-venting (de-gassing) PVDF pump head, specifically engineered for chemicals that release gas such as sodium hypochlorite. The self-venting system eliminates air lock issues, ensuring consistent dosing accuracy and uninterrupted operation.
The VF Viton (Acidic) seal configuration offers excellent resistance to aggressive and acidic chemicals, ensuring long service life and dependable performance in harsh environments. The digital multifunction controller enables flexible dosing modes including proportional, pulse-based, and manual control, providing full adaptability to system requirements.
Constructed with a durable PTFE diaphragm, the pump ensures long operational life with minimal maintenance. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.
Key Features
- Digital multifunction dosing control
- Self-venting (de-gassing) pump head for gas-forming chemicals
- PVDF pump head for superior chemical resistance
- VF Viton (Acidic) seals for aggressive chemicals
- Programmable and adjustable dosing modes
- High-strength PTFE diaphragm
- Reliable solenoid-driven operation
- Compact wall-mounted design
Applications
- Water treatment & disinfection
- Chlorine dosing systems
- Industrial chemical dosing
- Cooling towers
- Agriculture & fertigation
- Swimming pools & sanitation
Technical Specifications
- Model: VAMF 07-04-VF
- Max Flow Rate: 4 L/hr
- Max Pressure: 7 Bar
- Pump Type: Solenoid-driven electronic dosing pump
- Control Type: Digital multifunction
- Pump Head Material: PVDF (Self-venting)
- Seal Material: VF Viton (Acidic)
- Diaphragm: PTFE
- Mounting: Wall mounted
- Venting: Self-venting (de-gassing)
- Power Supply: 100–240V AC
- Protection Rating: IP65
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
EMEC VAMF Series Digital Self-Venting Chlorine Dosing Pumps

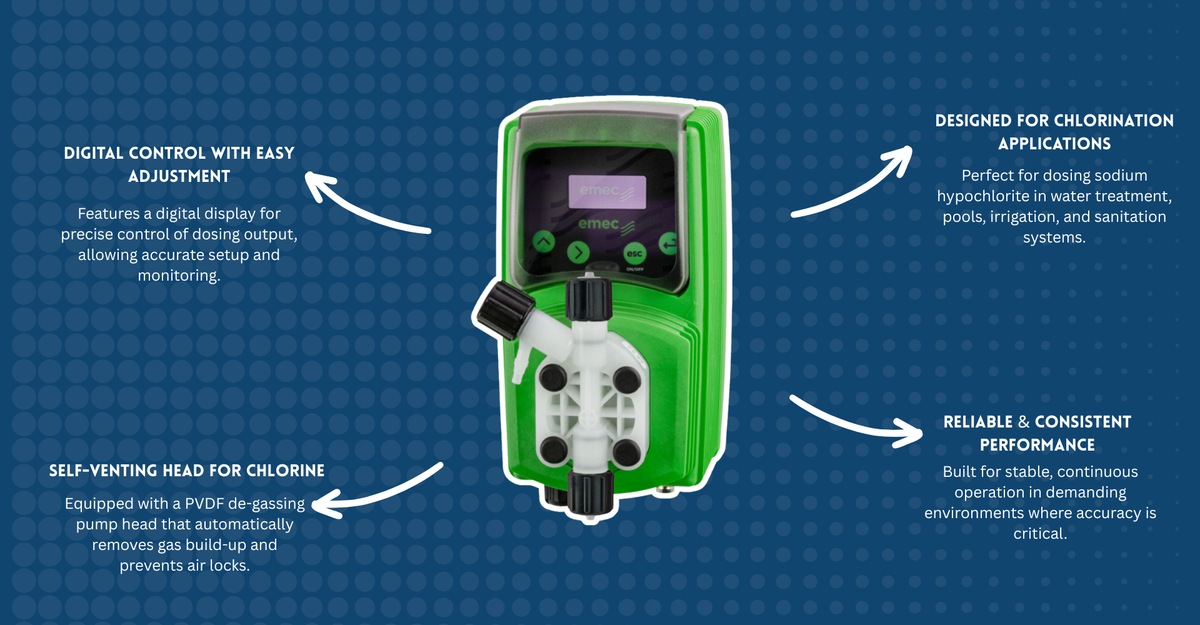

The EMEC VAMF Series is a range of digital solenoid-driven dosing pumps with self-venting (de-gassing) pump heads, specifically designed for accurate and reliable chlorine injection. Combining a digital control interface with a PVDF self-venting head, the VAMF range automatically removes gas build-up caused by sodium hypochlorite, ensuring consistent dosing performance and eliminating air lock issues.
The VAMF Series is ideal for water treatment systems, pools, irrigation disinfection, and sanitation applications where precise and stable chlorine dosing is essential. With digital adjustment of dosing output, robust construction, and dependable performance, the VAMF range offers a more advanced solution compared to standard manual or non-vented models.
Compare the VAMF Series Range
Compare the full EMEC VAMF range to find the right dosing pump for your required flow rate, dosing ratio, application, and chemical compatibility.
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | EMEC | EMEC | EMEC | EMEC |
| Model Code | ||||
| Model Code | ||||
| Price | ||||
| Price |
Regular price
$1,595.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
Regular price
$1,310.00 AUD
Unit price
|
| Flow Range | ||||
| Flow Range | ||||
| Dosing Ratio | ||||
| Dosing Ratio | ||||
| Pressure Range | ||||
| Pressure Range | ||||
| Seal Type | ||||
| Seal Type | ||||
| pH Range | ||||
| pH Range | ||||
| Connection Size | ||||
| Connection Size | ||||
| Body Material | ||||
| Body Material | ||||
How an EMEC Solenoid Pump Works
An EMEC solenoid dosing pump works by using an electromagnetic coil (solenoid) to drive a piston or diaphragm back and forth in rapid strokes.
When the solenoid is energised, it pulls the diaphragm inward, creating suction that draws chemical into the pump head through an inlet check valve. When the coil de-energises, a spring pushes the diaphragm outward, forcing the chemical through an outlet check valve and into the dosing line.
The dosing rate is controlled by adjusting the stroke frequency and/or stroke length, allowing precise and consistent chemical injection regardless of changes in water flow or pressure.
