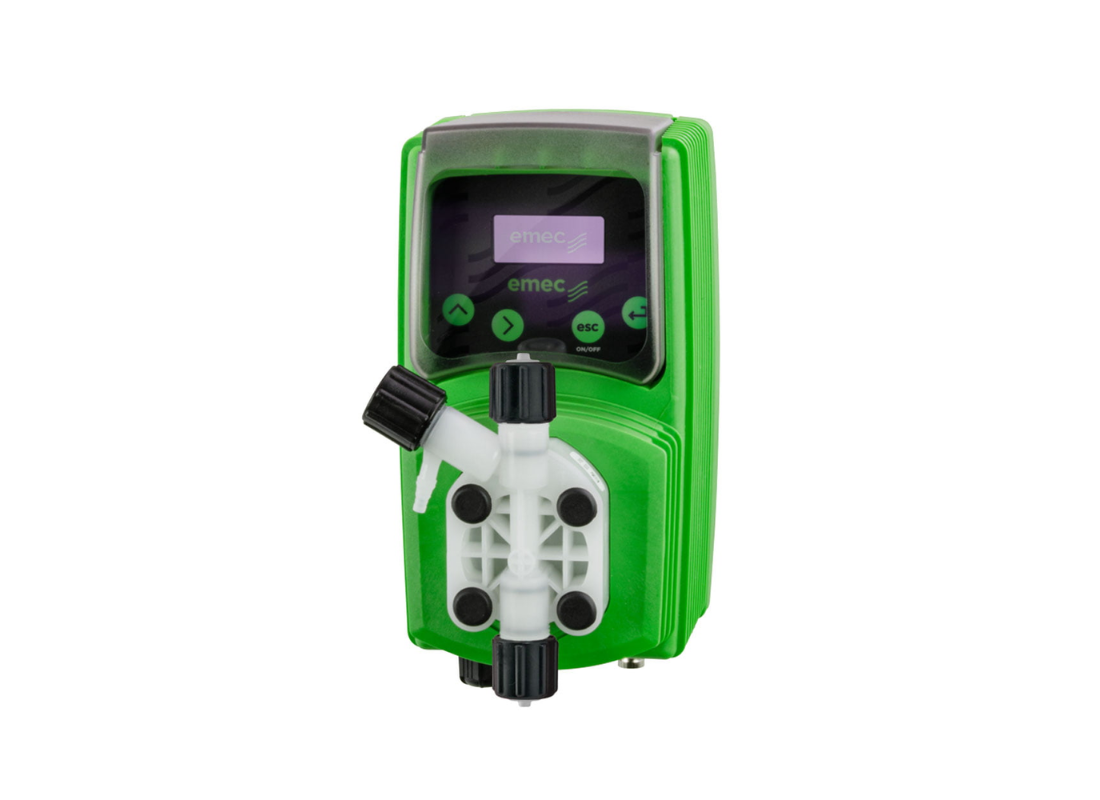

EMEC VAMF 07-04-VF Digital Self-Venting Wall Mounted Electronic Chemical Dosing Pump

Metering pump, wall mount, 4 l/hr @ 7 bar, PVDF self-venting (de-gassing) pump head for chemical dosing, multifunction digital control, includes installation kit

The EMEC VAMF 07-04-VF is a high-performance digital multifunction dosing pump from the V Series, designed for precise chemical injection in demanding water treatment, industrial, and process applications. It delivers reliable and accurate dosing with advanced electronic control and robust solenoid-driven technology.

This model is equipped with a self-venting (de-gassing) PVDF pump head, specifically engineered for chemicals that release gas such as sodium hypochlorite. The self-venting system eliminates air lock issues, ensuring consistent dosing accuracy and uninterrupted operation.

The VF Viton (Acidic) seal configuration offers excellent resistance to aggressive and acidic chemicals, ensuring long service life and dependable performance in harsh environments. The digital multifunction controller enables flexible dosing modes including proportional, pulse-based, and manual control, providing full adaptability to system requirements.

Constructed with a durable PTFE diaphragm, the pump ensures long operational life with minimal maintenance. Its compact wall-mounted design allows easy installation and seamless integration into dosing systems.

Key Features

• Digital multifunction dosing control

• Self-venting (de-gassing) pump head for gas-forming chemicals

• PVDF pump head for superior chemical resistance

• VF Viton (Acidic) seals for aggressive chemicals

• Programmable and adjustable dosing modes

• High-strength PTFE diaphragm

• Reliable solenoid-driven operation

• Compact wall-mounted design

Applications

• Water treatment & disinfection

• Chlorine dosing systems

• Industrial chemical dosing

• Cooling towers

• Agriculture & fertigation

• Swimming pools & sanitation

Technical Specifications

• Model: VAMF 07-04-VF

• Max Flow Rate: 4 L/hr

• Max Pressure: 7 Bar

• Pump Type: Solenoid-driven electronic dosing pump

• Control Type: Digital multifunction

• Pump Head Material: PVDF (Self-venting)

• Seal Material: VF Viton (Acidic)
• Diaphragm: PTFE

• Mounting: Wall mounted

• Venting: Self-venting (de-gassing)

• Power Supply: 100–240V AC

• Protection Rating: IP65
