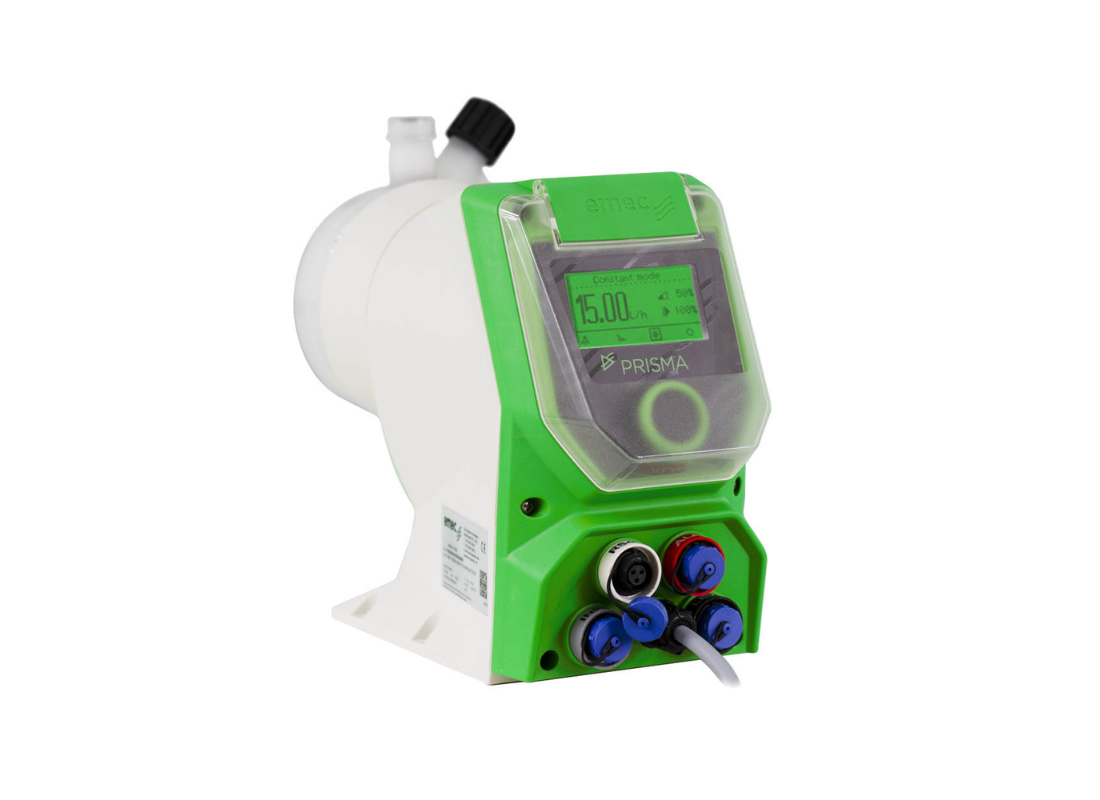

EMEC PRISMA 05-28-VF LPV Viscous Liquid Digital Stepper Motor Chemical Dosing Pump

Stepper motor dosing pump for viscous liquids, 28 l/hr @ 5 bar, PVDF pump head, digital control, PTFE diaphragm, VF Viton seals

The EMEC PRISMA 05-28-VF LPV is a high-precision digital stepper motor dosing pump specifically engineered for viscous liquid and high-accuracy chemical dosing applications. Featuring advanced microprocessor-controlled stepper motor technology, the PRISMA series delivers smooth low-pulsation dosing with exceptional repeatability and highly precise flow regulation.

Delivering a dosing capacity of 28 L/h at 5 bar, this model is optimized for handling viscous chemicals and demanding dosing applications requiring stable and homogeneous chemical injection. The integrated LPV Slow Mode functionality allows the suction stroke speed to be reduced from 100% to 1%, significantly improving venting performance and dosing reliability for viscous media.

The PVDF pump head provides superior resistance to aggressive chemicals, while VF Viton seals ensure excellent compatibility with acidic and corrosive solutions. Its intelligent digital interface includes a large color display with encoder navigation for easy setup, monitoring, and precise dosing adjustment.

With multiple operating modes including constant dosing, proportional dosing, ppm mode, percentage mode, weekly timer, and external input control, the PRISMA LPV series provides flexible and highly accurate dosing management across a wide range of industrial and water treatment applications.

Key Features

• Digital stepper motor dosing technology
• Designed for viscous liquid dosing applications
• 28 L/h flow capacity at 5 bar
• LPV Slow Mode for enhanced viscous chemical handling
• PVDF pump head for aggressive chemical resistance
• VF Viton seals for acidic chemical compatibility
• Turndown ratio up to 1:4800
• Color display with encoder navigation
• PTFE diaphragm for extended durability
• Bluetooth connectivity for remote control
• RS485 / Modbus RTU communication support
• Low pulsation and high dosing precision
• IP65 protection rating

Applications

• Viscous chemical dosing
• Water treatment systems
• Industrial processing
• Acid dosing applications
• Chemical injection systems
• Cooling towers
• Sanitation systems
• Disinfection systems
• pH correction

Technical Specifications

• Model: PRISMA 05-28-VF LPV
• Max Flow Rate: 28 L/hr
• Max Pressure: 5 Bar
• Pump Type: Stepper motor diaphragm dosing pump
• Control Type: Digital
• Pump Head Material: PVDF
• Seal Material: VF Viton (Acidic)
• Diaphragm Material: PTFE
• Turndown Ratio: 1:4800
• Slow Mode: 100% to 1%
• Communication: RS485 / Modbus RTU / Bluetooth
• Power Supply: 110 - 240 VAC, 50/60 Hz | 9 - 36 VDC
• Protection Rating: IP65
• Pump Housing: PP reinforced with glass fiber
• Operating Temperature: 1 - 45°C
• Environment Temperature: 10 - 45°C
• Energy Consumption: 30W
• Repeatability: ±1%
