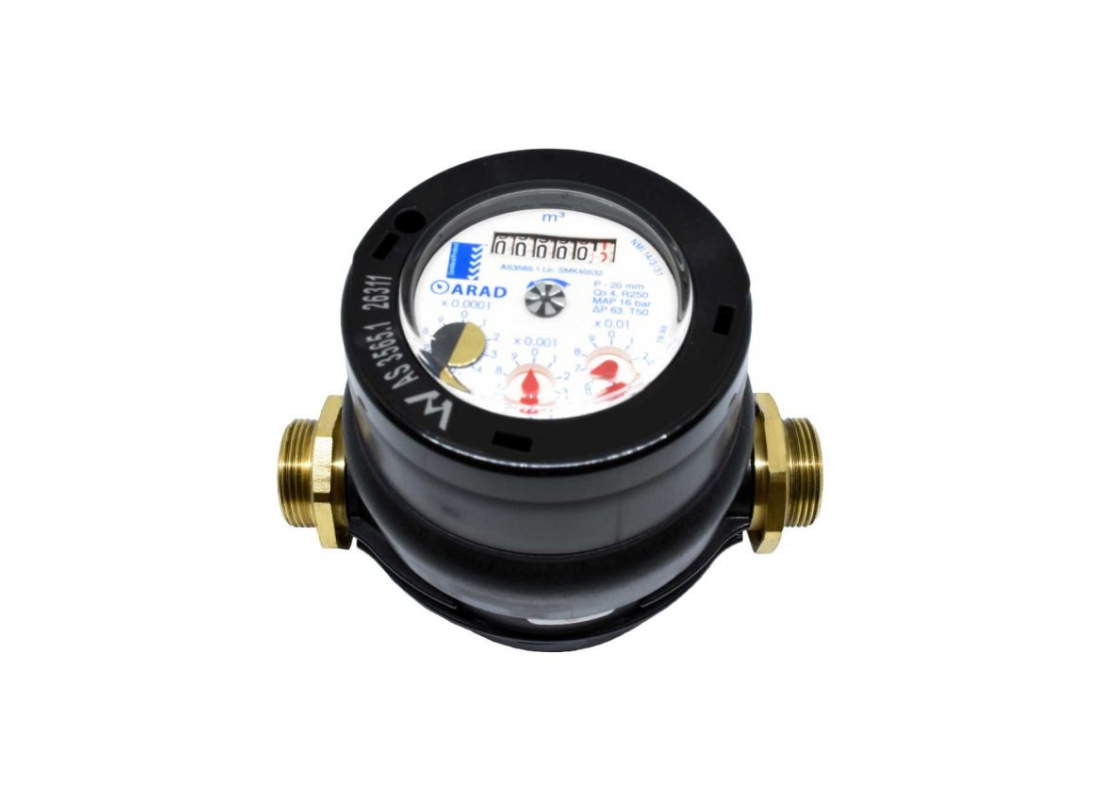

Arad Gladiator 15mm BSP Polymer Positive Displacement Water Meter
Free Shipping
Australia Wide
30-Day Returns
Easy Returns
Tax Invoice
For Business Buyers
Expert Advice
1300 107 451
Product Overview
The Arad Gladiator 15mm BSP Polymer Positive Displacement Water Meter is a lightweight, high-accuracy domestic water meter designed for residential water supply, sub-metering and light commercial applications. Manufactured with a reinforced polymer body, it provides reliable long-term water measurement while offering excellent resistance to corrosion and environmental conditions.
Using a positive displacement measuring principle, the Gladiator accurately measures water consumption across a wide flow range, including very low flow rates. The sealed super-dry register features a hermetically sealed counter with hardened glass to maintain clear readings while protecting the internal mechanism from moisture and contaminants.
The meter is supplied with 15mm BSP threaded brass connectors, dual check valves and a continuity strip for straightforward installation. Its IP68-rated register allows installation in horizontal, vertical or inclined positions, making it suitable for a wide range of domestic water metering applications.
Key Features
- Positive displacement measuring technology
- 15mm BSP threaded connection
- Reinforced polymer body
- High accuracy across a wide measuring range
- Lightweight corrosion-resistant construction
- Sealed super-dry IP68 register
- Hermetically sealed hardened glass counter
- Dual check valves
- Brass connectors
- Continuity strip
- Suitable for horizontal, vertical and inclined installation
Technical Specifications
- Model: Gladiator WM151PD
- Nominal Size: 15mm
- Connection Type: BSP Thread
- Measurement Principle: Positive Displacement
- Maximum Working Pressure: 1600kPa
- Maximum Liquid Temperature: 50°C
- Nominal Flow Rate (Q3): 2.5m³/h
- Maximum Flow Rate (Q4): 3.125m³/h
- Transitional Flow Rate (Q2): 10L/h
- Minimum Flow Rate (Q1): 6.25L/h
- R Value: 400
- Register: Super-Dry IP68
- Body Material: Reinforced Composite Polymer
- Installation Orientation: Horizontal, Vertical or Inclined
Applications
Frequently Asked Questions
What is the Arad Gladiator 15mm water meter used for?
The Arad Gladiator 15mm is a positive displacement water meter designed for accurate water measurement in residential, domestic and light commercial water supply applications.
How does the Gladiator measure water flow?
The Gladiator uses a positive displacement measuring chamber that accurately records water passing through the meter, providing reliable performance across a wide measuring range, including low flow conditions.
What is the maximum working pressure?
The maximum working pressure is 1600kPa (16 bar).
What liquid temperature can the Gladiator handle?
The Gladiator is suitable for water temperatures up to 50°C.
Can the Gladiator be installed in different orientations?
Yes. The meter can be installed in horizontal, vertical or inclined positions while maintaining accurate performance.
Is the register waterproof?
Yes. The Gladiator features a sealed super-dry IP68 register with a hermetically sealed hardened glass counter to protect the measuring mechanism from moisture and contaminants.
What connection does this meter use?
This model is supplied with 15mm BSP threaded connections and brass connectors for straightforward installation.
Is the Gladiator suitable for domestic applications?
Yes. It is specifically designed for residential water supply, domestic metering and sub-metering applications.
What is the nominal flow rate?
The nominal flow rate (Q3) is 2.5m³/h, with a maximum flow rate (Q4) of 3.125m³/h.
Does the meter include check valves?
Yes. The Gladiator includes dual check valves and a continuity strip as standard.
What approvals does the Gladiator comply with?
The Gladiator complies with NMI R49 and AS3565.1 requirements for water metering applications.
How should the meter be installed?
The meter should be installed in accordance with the Plumbing Code of Australia, AS/NZS 3500.1 and the manufacturer's installation instructions.
