Product Overview
Stainless steel diaphragm pump, hygienic AODD pump, 316L chemical transfer pump, air operated industrial pump

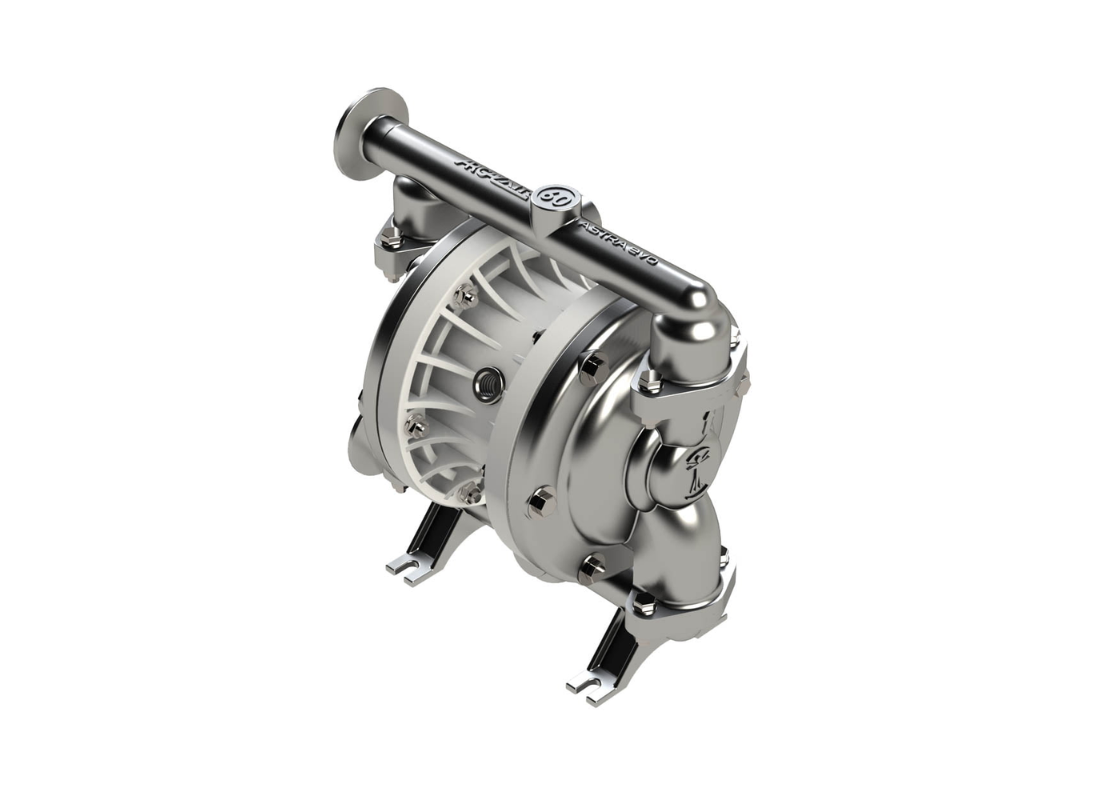

The Argal Astra Evo DDE 060 SPN is a high-capacity air operated double diaphragm (AODD) pump designed for demanding industrial and hygienic fluid transfer applications. Featuring an electropolished AISI 316L stainless steel casing, it delivers exceptional corrosion resistance and is ideal for use in pharmaceutical, food, and aggressive chemical environments.
Powered by compressed air, the pump operates on a 1:1 pressure ratio, ensuring consistent and safe performance without electrical components. This makes it suitable for hazardous and ATEX-rated environments.
Designed with hygienic clamp (tri-clover) connections, the pump allows for easy installation, maintenance, and cleaning. It is capable of handling solids up to 3.8 mm and provides a suction lift of up to 4 meters, making it versatile across a wide range of applications.
Equipped with TPE + PTFE diaphragms, the pump offers excellent chemical resistance and durability, particularly in aggressive and high-purity fluid handling applications.
Key Features
- Air operated double diaphragm (AODD) pump
- AISI 316L electropolished stainless steel casing
- Hygienic clamp (tri-clover) connections
- 1:1 pressure ratio for consistent operation
- TPE + PTFE diaphragms for superior chemical resistance
- Handles solids up to 3.8 mm
- Maximum suction lift up to 4 m
- High capacity for industrial applications
- Low noise operation (75 dB)
- Suitable for ATEX and hazardous environments
Applications
- Pharmaceutical and hygienic processing
- Food and beverage production
- Chemical transfer and dosing
- Corrosive and aggressive fluids
- Water and wastewater treatment
- High purity and sanitary systems
Technical Specifications
- Model: DDE 060 SPN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 76 L/min
- Max Solid Size: 3.8 mm
- Suction Lift: Up to 4 m
- Connection Type: Clamp (Tri-Clamp)
- Connection Size: 1"
- Air Inlet Size: 1/4" BSP/NPT
- Volume per Cycle: 160 cc
- Noise Level: 75 dB(A)
- Weight: 5.5 kg
- Casing Material: AISI 316L Stainless Steel (Electropolished)
- Diaphragm Material: TPE + PTFE
Applications
Frequently Asked Questions
What is the Argal Astra Evo DDE 060 SPN pump used for?
The Argal Astra Evo DDE 060 SPN is designed for transferring chemicals, industrial fluids and hygienic process liquids.
Does this pump require electricity?
No. The pump is air operated and requires a compressed air supply for operation.
What is the maximum working pressure?
The maximum fluid working pressure is 8 bar.
What is the maximum flow rate?
The maximum flow rate is approximately 80 L/min.
What casing material is used?
This model features an electropolished AISI 316L stainless steel casing.
What diaphragm material does this model use?
This version is fitted with TPE (Keyflex®) + PTFE diaphragms.
What connection size does the pump have?
The fluid inlet and outlet connections are 1″ Clamp connections.
Can the pump handle solids?
Yes. It can handle solids up to 3.8 mm in size.
Is the pump suitable for hazardous areas?
Yes. The SPN version is ATEX rated II 3/3 GD c IIB T4 for Zone 2 applications.
What is the pump weight?
The pump weighs approximately 5.5 kg.
