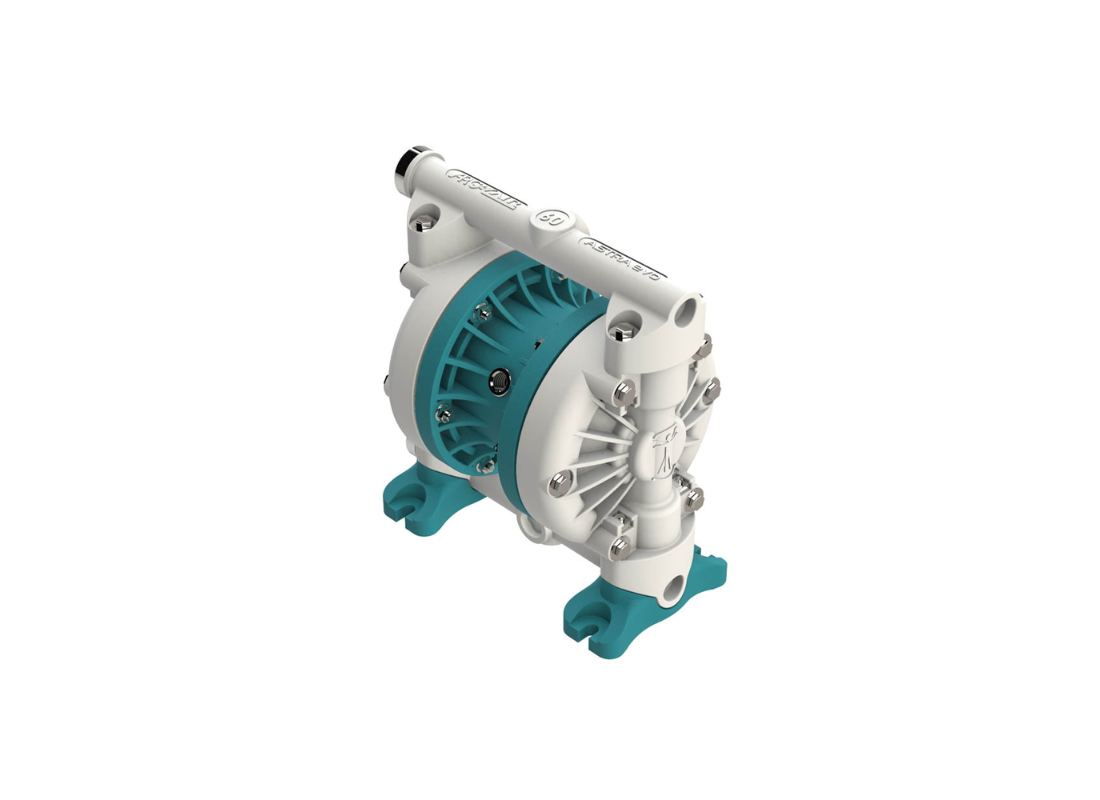

Argal Astra Evo AODD DDE 060 WRN Y TPD GLL Polypropylene Casing Air Operated Double Diaphragm Pump

Air operated diaphragm pump, polypropylene casing, high flow chemical transfer pump, corrosion-resistant AODD pump

The Argal Astra Evo DDE 060 WRN is a high-capacity air operated double diaphragm (AODD) pump designed for efficient transfer of aggressive and corrosive fluids in industrial environments. Constructed with a polypropylene (PP) glass-reinforced casing, it provides excellent chemical resistance while maintaining a lightweight yet durable structure.

Powered by compressed air, the pump operates on a 1:1 pressure ratio, ensuring stable and reliable performance without the need for electrical power. This makes it ideal for hazardous and ATEX-rated environments where safety is critical.

Designed for higher flow applications, the DDE 060 WRN is capable of handling solids up to 3.2 mm and provides a suction lift of up to 4 meters. Its robust construction, combined with low noise operation, ensures long-lasting performance across a wide range of industrial applications.

This variant is equipped with TPV (Santoprene) diaphragms, offering strong chemical compatibility and durability for general-purpose fluid transfer.

Key Features

• Air operated double diaphragm (AODD) pump

• Polypropylene glass-reinforced casing for chemical resistance

• 1:1 pressure ratio for reliable operation

• TPV (Santoprene) diaphragms for durability

• High flow capacity for industrial applications

• Handles solids up to 3.2 mm

• Maximum suction lift up to 4 m

• Low noise operation (75 dB)

• Suitable for hazardous and ATEX environments

• Maintenance-friendly construction

Applications

• Chemical transfer and dosing

• Acids, alkalis, and corrosive fluids

• Industrial processing systems

• Water and wastewater treatment

• Paints, coatings, and solvents

• General industrial fluid transfer

Technical Specifications

• Model: DDE 060 WRN
• Pump Type: Air Operated Double Diaphragm Pump
• Ratio: 1:1
• Max Fluid Pressure: 8 Bar
• Air Pressure Range: 2 – 8 Bar
• Flow Rate: Up to 76 L/min
• Max Solid Size: 3.2 mm
• Suction Lift: Up to 4 m
• Connection Type: BSP/NPT
• Connection Size: 1/2"
• Air Inlet Size: 1/4" BSP/NPT
• Volume per Cycle: 160 cc
• Noise Level: 75 dB(A)
• Weight: 3.5 kg
• Casing Material: Polypropylene (Glass Reinforced)
• Diaphragm Material: TPV (Santoprene)
