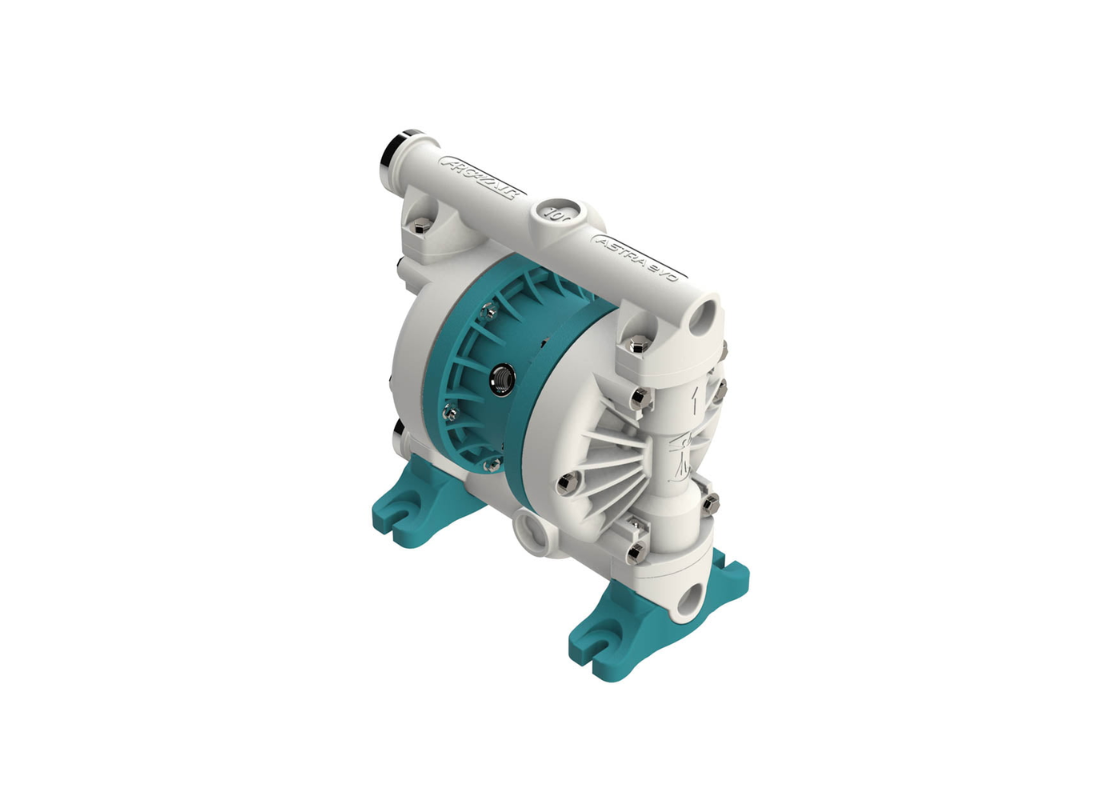

Argal Astra Evo AODD DDE 100 FCN L TKV GLL PVDF Casing Air Operated Double Diaphragm Pump
Argal Astra Evo AODD DDE 100 FCN L TKV GLL PVDF Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Argal Astra Evo AODD DDE 100 FCN L TKV GLL PVDF Casing Air Operated...
Argal Astra Evo AODD DDE 100 FCN L TKV GLL PVDF Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Description
Description
Air operated diaphragm pump, PVDF casing, high capacity chemical transfer pump, corrosion-resistant AODD pump
The Argal Astra Evo DDE 100 FCN is a high-capacity air operated double diaphragm (AODD) pump engineered for handling aggressive and corrosive fluids in demanding industrial environments. Featuring a PVDF (polyvinylidene fluoride) reinforced carbon fibre casing, it delivers superior chemical resistance and long-term durability in highly corrosive applications.
Operating on a 1:1 pressure ratio, the pump is powered by compressed air, ensuring reliable and safe operation without electrical components. This makes it ideal for hazardous and ATEX-rated environments.
Designed for high flow performance, the DDE 100 FCN is capable of handling solids up to 5.5 mm and provides a suction lift of up to 4 meters. Its robust construction and efficient design make it suitable for heavy-duty industrial applications requiring continuous fluid transfer.
This configuration supports advanced diaphragm material combinations, providing flexibility for compatibility with a wide range of chemicals and process conditions.
Key Features
- Air operated double diaphragm (AODD) pump
- PVDF reinforced carbon fibre casing for maximum chemical resistance
- 1:1 pressure ratio for stable performance
- High flow capacity for industrial applications
- Handles solids up to 5.5 mm
- Maximum suction lift up to 4 m
- Robust construction for demanding environments
- Low noise operation (80 dB)
- Suitable for hazardous and ATEX environments
- Wide diaphragm material compatibility
Applications
- Chemical transfer and dosing
- Highly corrosive and aggressive fluids
- Industrial processing systems
- Water and wastewater treatment
- Acids, solvents, and specialty chemicals
- Heavy-duty fluid handling applications
Technical Specifications
- Model: DDE 100 FCN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 130 L/min
- Max Solid Size: 5.5 mm
- Suction Lift: Up to 4 m
- Connection Type: BSP/NPT
- Connection Size: 1"
- Air Inlet Size: 3/8" BSP/NPT
- Volume per Cycle: 240 cc
- Noise Level: 80 dB(A)
- Weight: 5.5 kg
- Casing Material: PVDF (Carbon Reinforced)
