Argal Astra Evo AODD DDE 160 SPN Y TST CLL 316L Casing Air Operated Double Diaphragm Pump
Argal Astra Evo AODD DDE 160 SPN Y TST CLL 316L Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Product Warranty
Product Warranty
Dosatron products are covered by a 12-month warranty from the date of purchase for manufacturing defects only.
To claim warranty, the product must be returned to the manufacturer or authorised distributor with proof of purchase. The unit will be inspected and repaired or replaced if the defect is confirmed.
CONDITIONS
- Product must be rinsed and free of chemicals before return.
- Return postage is paid by the customer.
- Warranty repairs do not extend the original warranty period.
NOT COVERED
- Incorrect installation or misuse
- Lack of maintenance
- Environmental damage or corrosion
- Seal wear (consumable parts)
- Damage caused by water impurities such as sand
REQUIREMENTS
A filter (approx. 60 micron / 250 mesh) must be installed upstream of the Dosatron for the warranty to remain valid.
Delivery and Shipping
Delivery and Shipping
Orders are dispatched from our Sydney warehouse the next business day. A tracking number will be sent within 48 hours of placing your order.
Shipping times vary across Australia but typically range between 2–8 business days depending on your location.
If any items are on backorder, our team will contact you as soon as possible with an update.
Argal Astra Evo AODD DDE 160 SPN Y TST CLL 316L Casing Air Operated...
Argal Astra Evo AODD DDE 160 SPN Y TST CLL 316L Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Description
Description
High capacity stainless steel diaphragm pump, hygienic AODD pump, 316L industrial transfer pump, air operated fluid handling system

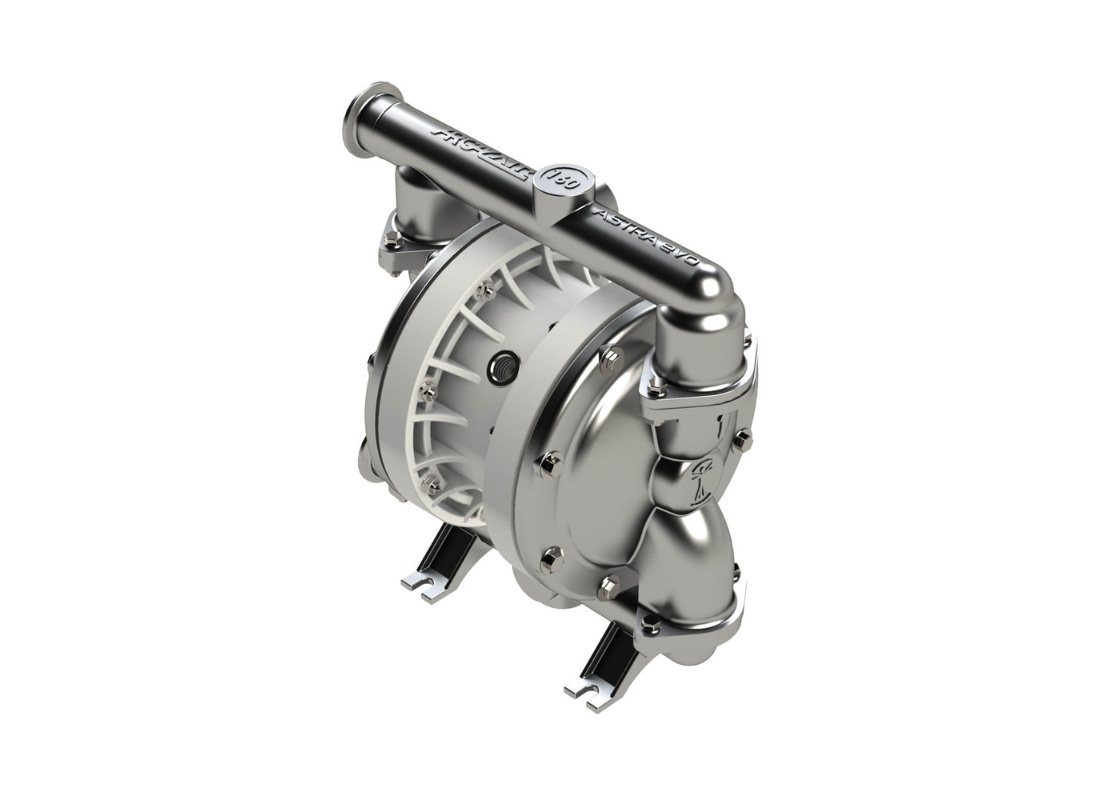

The Argal Astra Evo DDE 160 SPN is a high-capacity air operated double diaphragm (AODD) pump engineered for demanding hygienic and industrial applications. Featuring an electropolished AISI 316L stainless steel casing, it provides exceptional corrosion resistance and is ideal for pharmaceutical, food, and aggressive chemical environments.
Powered by compressed air, the pump operates on a 1:1 pressure ratio, ensuring reliable and safe performance without the need for electrical components. This makes it suitable for hazardous and ATEX-rated environments.
Designed with hygienic clamp (tri-clover) connections, the pump enables easy installation, maintenance, and cleaning. It is capable of handling solids up to 6 mm and provides a suction lift of up to 4.5 meters, making it suitable for high-demand fluid transfer applications.
Equipped with TPE + PTFE diaphragms, the pump delivers excellent chemical resistance and durability, especially in applications involving aggressive and high-purity fluids.
Key Features
- Air operated double diaphragm (AODD) pump
- AISI 316L electropolished stainless steel casing
- Hygienic clamp (tri-clover) connections
- 1:1 pressure ratio for stable operation
- TPE + PTFE diaphragms for superior chemical resistance
- Very high flow capacity for industrial applications
- Handles solids up to 6 mm
- Maximum suction lift up to 4.5 m
- Low noise operation (80 dB)
- Suitable for ATEX and hazardous environments
Applications
- Pharmaceutical and hygienic processing
- Food and beverage production
- Chemical transfer and dosing
- Corrosive and aggressive fluids
- Water and wastewater treatment
- High purity and sanitary systems
Technical Specifications
- Model: DDE 160 SPN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 170 L/min
- Max Solid Size: 6 mm
- Suction Lift: Up to 4.5 m
- Connection Type: Clamp (Tri-Clamp)
- Connection Size: 1 1/2"
- Air Inlet Size: 3/8" BSP/NPT
- Volume per Cycle: 440 cc
- Noise Level: 80 dB(A)
- Casing Material: AISI 316L Stainless Steel (Electropolished)
- Diaphragm Material: TPE + PTFE
