Description
Description
Ultra high capacity air operated diaphragm pump, polypropylene AODD pump, industrial chemical transfer pump, corrosion-resistant fluid handling solution

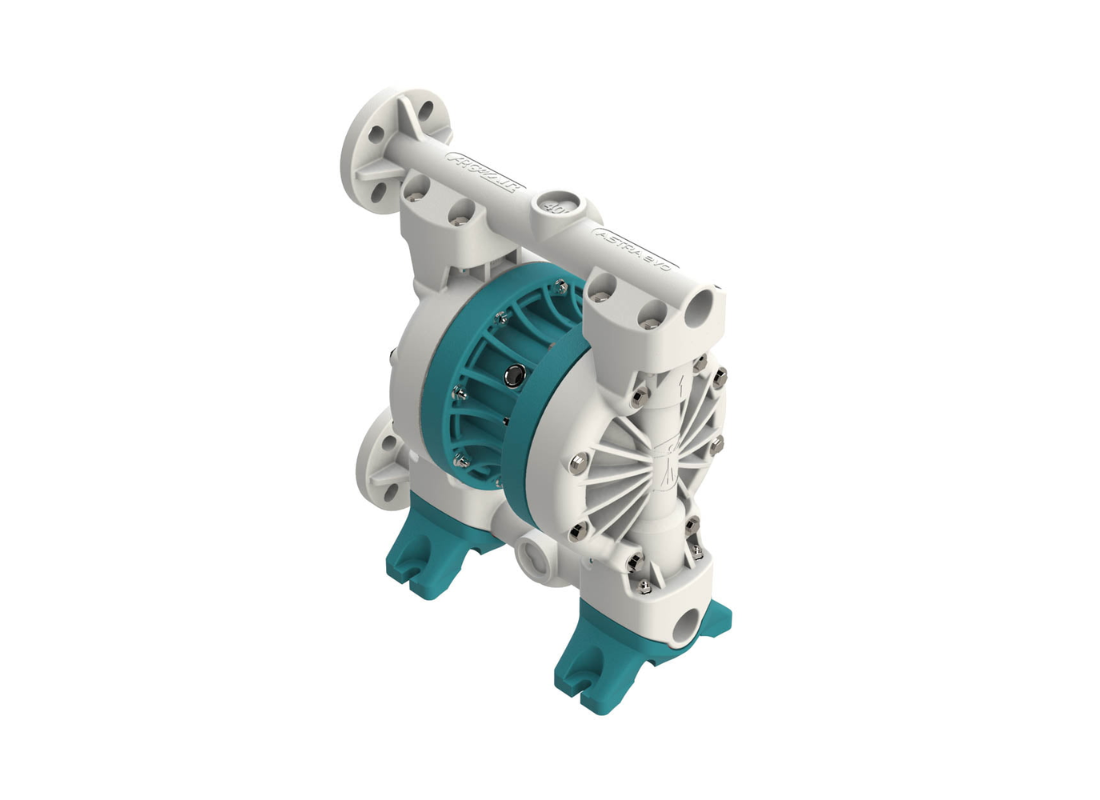

The Argal Astra Evo DDE 400 WRN is an ultra high-capacity air operated double diaphragm (AODD) pump engineered for heavy-duty industrial applications involving aggressive and corrosive fluids. Built with a polypropylene (PP) glass-reinforced casing, it delivers excellent chemical resistance while maintaining strength and durability in demanding environments.
Operating on a 1:1 pressure ratio, the pump is powered entirely by compressed air, ensuring reliable and safe performance without electrical components. This makes it ideal for hazardous and ATEX-rated installations.
Designed for large-scale fluid transfer, the DDE 400 WRN is capable of handling solids up to 7 mm and provides a suction lift of up to 4.5 meters. Its large volume per cycle and high flow capacity make it suitable for continuous, high-demand industrial processes.
This configuration features TPV + PTFE diaphragm combination, providing enhanced chemical resistance and improved durability when handling aggressive fluids.
Key Features
- Air operated double diaphragm (AODD) pump
- Polypropylene glass-reinforced casing for chemical resistance
- 1:1 pressure ratio for stable operation
- TPV + PTFE diaphragms for enhanced chemical resistance
- Ultra high flow capacity for industrial applications
- Handles solids up to 7 mm
- Maximum suction lift up to 4.5 m
- Large displacement per cycle for efficient transfer
- Robust construction for heavy-duty use
- Suitable for hazardous and ATEX environments
Applications
- Chemical transfer and dosing
- Acids, alkalis, and corrosive fluids
- Industrial processing systems
- Water and wastewater treatment
- Paints, coatings, and solvents
- Bulk and heavy-duty fluid transfer
Technical Specifications
- Model: DDE 400 WRN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 375 L/min
- Max Solid Size: 7 mm
- Suction Lift: Up to 4.5 m
- Connection Type: BSP/NPT
- Connection Size: 1 1/2"
- Air Inlet Size: 1/2" BSP/NPT
- Volume per Cycle: 1340 cc
- Noise Level: 80 dB(A)
- Weight: 18 kg
- Casing Material: Polypropylene (Glass Reinforced)
- Diaphragm Material: TPV + PTFE
