Description
Description
Ultra high capacity air operated diaphragm pump, aluminium AODD pump, heavy-duty industrial fluid transfer pump, high flow chemical handling solution

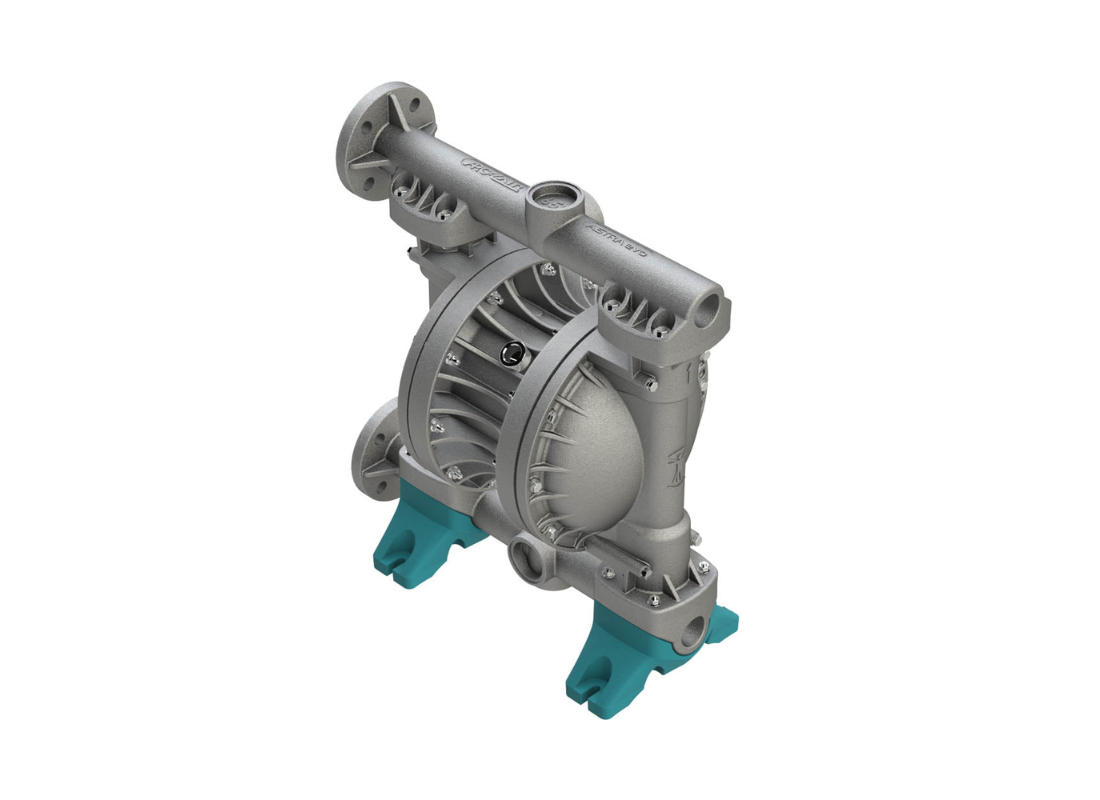

The Argal Astra Evo DDE 650 ALN is an ultra high-capacity air operated double diaphragm (AODD) pump engineered for large-scale industrial fluid transfer applications. Constructed with a robust aluminium casing, it provides excellent mechanical strength and durability for handling high volumes of fluids in demanding environments.
Operating on a 1:1 pressure ratio, the pump is powered entirely by compressed air, ensuring safe and reliable performance without electrical components. This makes it ideal for hazardous and ATEX-rated installations.
Designed for extreme flow applications, the DDE 650 ALN is capable of handling solids up to 9 mm and offers a suction lift of up to 4.5 meters. Its very large displacement per cycle and high throughput make it suitable for bulk transfer and heavy-duty industrial processes.
This configuration supports multiple diaphragm material options, allowing flexibility for compatibility with a wide range of chemicals and applications.
Key Features
- Air operated double diaphragm (AODD) pump
- Heavy-duty aluminium casing for durability
- 1:1 pressure ratio for stable performance
- Ultra high flow capacity for industrial applications
- Handles solids up to 9 mm
- Maximum suction lift up to 4.5 m
- Very large volume per cycle for efficient transfer
- Flanged and threaded connection compatibility
- Robust design for continuous heavy-duty operation
- Suitable for hazardous and ATEX environments
Applications
- Bulk chemical transfer
- Industrial fluid handling
- Slurries and viscous fluids
- Water and wastewater treatment
- Mining and heavy industries
- High volume transfer systems
Technical Specifications
- Model: DDE 650 ALN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 715 L/min
- Max Solid Size: 9 mm
- Suction Lift: Up to 4.5 m
- Connection Type: Flange + BSP/NPT
- Connection Size: 2" (DN50)
- Air Inlet Size: 3/4" BSP/NPT
- Volume per Cycle: 3820 cc
- Noise Level: 80 dB(A)
- Casing Material: Aluminium
