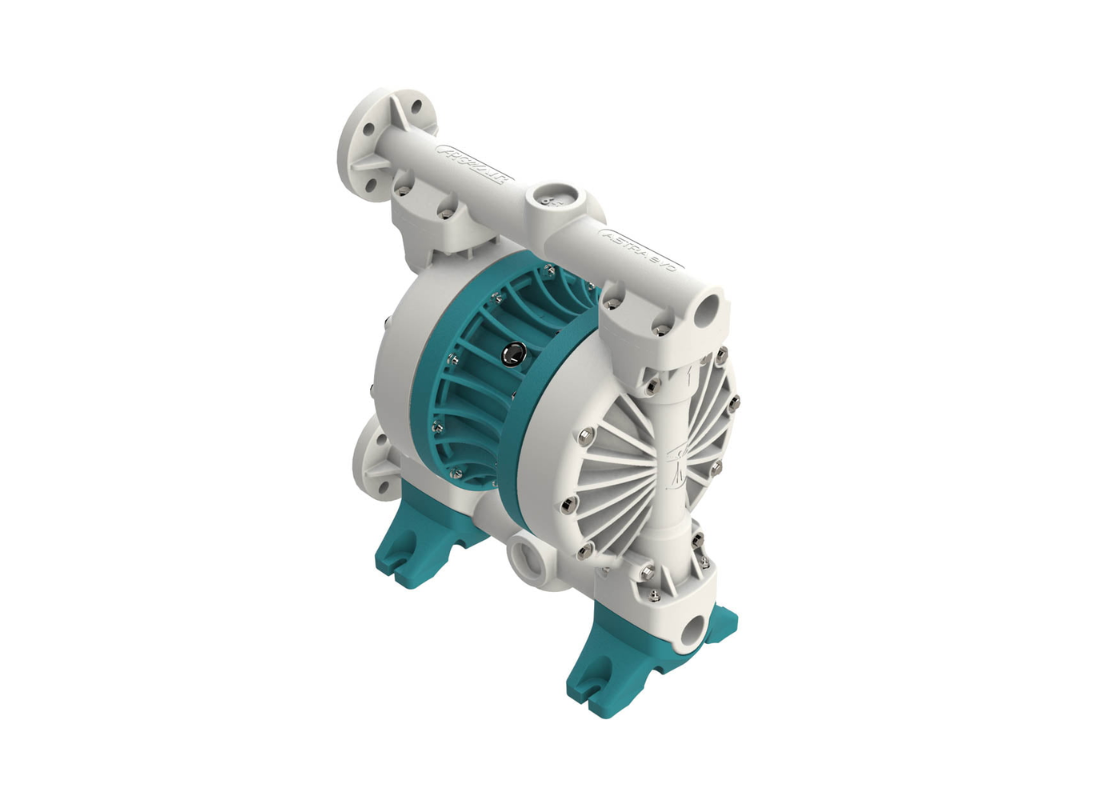

Argal Astra Evo AODD DDE 650 WRN M DPD GLL Polypropylene Casing Air Operated Double Diaphragm Pump

Ultra high capacity air operated diaphragm pump, polypropylene AODD pump, industrial chemical transfer pump, heavy-duty fluid handling solution

The Argal Astra Evo DDE 650 WRN is an ultra high-capacity air operated double diaphragm (AODD) pump designed for large-scale industrial fluid transfer applications. Constructed with a polypropylene (PP) glass-reinforced casing, it offers excellent chemical resistance while maintaining strength and durability in harsh operating environments.

Operating on a 1:1 pressure ratio, the pump is powered entirely by compressed air, ensuring safe and reliable performance without electrical components. This makes it suitable for hazardous and ATEX-rated environments.

Designed for heavy-duty operation, the DDE 650 WRN is capable of handling solids up to 9 mm and provides a suction lift of up to 4.5 meters. Its very large displacement per cycle and high flow capability make it ideal for bulk transfer and continuous industrial processes.

This configuration features a TPV diaphragm setup, delivering strong chemical compatibility and durability across a wide range of fluid handling applications.

Key Features

• Air operated double diaphragm (AODD) pump

• Polypropylene glass-reinforced casing for chemical resistance

• 1:1 pressure ratio for stable performance

• TPV diaphragm configuration for durability

• Ultra high flow capacity for industrial applications

• Handles solids up to 9 mm

• Maximum suction lift up to 4.5 m

• Large displacement per cycle for efficient transfer

• Robust construction for heavy-duty use

• Suitable for hazardous and ATEX environments

Applications

• Bulk chemical transfer

• Industrial fluid handling

• Acids, alkalis, and corrosive fluids

• Water and wastewater treatment

• Slurry and viscous fluid transfer

• Heavy-duty industrial processes

Technical Specifications

• Model: DDE 650 WRN
• Pump Type: Air Operated Double Diaphragm Pump
• Ratio: 1:1
• Max Fluid Pressure: 8 Bar
• Air Pressure Range: 2 – 8 Bar
• Flow Rate: Up to 715 L/min
• Max Solid Size: 9 mm
• Suction Lift: Up to 4.5 m
• Connection Type: BSP/NPT
• Connection Size: 2"
• Air Inlet Size: 3/4" BSP/NPT
• Volume per Cycle: 3820 cc
• Noise Level: 80 dB(A)
• Weight: 31 kg
• Casing Material: Polypropylene (Glass Reinforced)
• Diaphragm Material: TPV (Santoprene)
