Argal Astra Evo AODD DDE 650 WRN M DZD ALL Polypropylene Casing Air...
Argal Astra Evo AODD DDE 650 WRN M DZD ALL Polypropylene Casing Air Operated Double Diaphragm Pump is backordered and will ship as soon as it is back in stock.
Description
Description
Ultra high capacity air operated diaphragm pump, polypropylene AODD pump, industrial chemical transfer pump, heavy-duty fluid handling solution

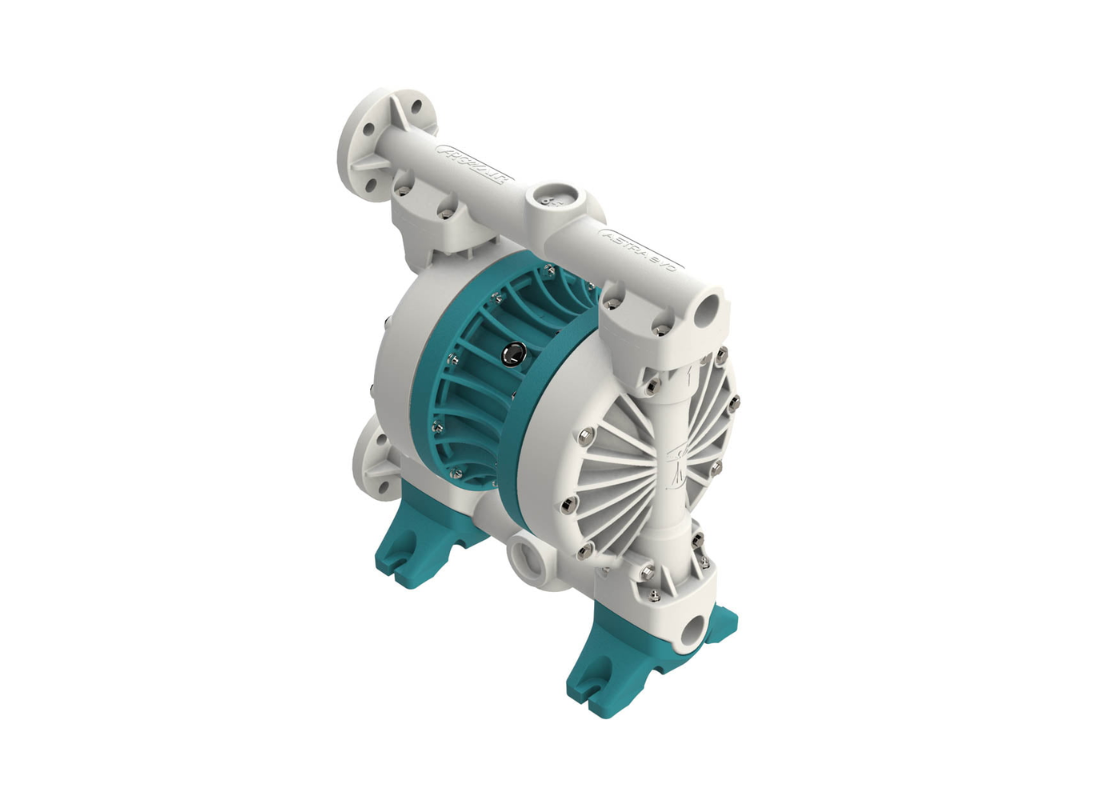

The Argal Astra Evo DDE 650 WRN is an ultra high-capacity air operated double diaphragm (AODD) pump designed for large-scale industrial fluid transfer applications. Built with a polypropylene (PP) glass-reinforced casing, it provides excellent chemical resistance while maintaining durability in aggressive operating environments.
Operating on a 1:1 pressure ratio, the pump is powered entirely by compressed air, ensuring safe and reliable operation without electrical components. This makes it suitable for hazardous and ATEX-rated installations.
Engineered for heavy-duty performance, the DDE 650 WRN can handle solids up to 9 mm and offers a suction lift of up to 4.5 meters. Its very large displacement per cycle ensures efficient high-volume transfer, making it ideal for continuous industrial processes.
This configuration supports advanced diaphragm material combinations, enabling compatibility across a wide range of chemicals and fluid handling requirements.
Key Features
- Air operated double diaphragm (AODD) pump
- Polypropylene glass-reinforced casing for chemical resistance
- 1:1 pressure ratio for stable operation
- Ultra high flow capacity for industrial applications
- Handles solids up to 9 mm
- Maximum suction lift up to 4.5 m
- Large displacement per cycle for efficient transfer
- Robust construction for heavy-duty environments
- Suitable for hazardous and ATEX environments
- Wide diaphragm material compatibility
Applications
- Bulk chemical transfer
- Industrial fluid handling
- Acids, alkalis, and corrosive fluids
- Water and wastewater treatment
- Slurry and viscous fluid transfer
- Heavy-duty industrial processes
Technical Specifications
- Model: DDE 650 WRN
- Pump Type: Air Operated Double Diaphragm Pump
- Ratio: 1:1
- Max Fluid Pressure: 8 Bar
- Air Pressure Range: 2 – 8 Bar
- Flow Rate: Up to 715 L/min
- Max Solid Size: 9 mm
- Suction Lift: Up to 4.5 m
- Connection Type: BSP/NPT
- Connection Size: 2"
- Air Inlet Size: 3/4" BSP/NPT
- Volume per Cycle: 3820 cc
- Noise Level: 80 dB(A)
- Weight: 31 kg
- Casing Material: Polypropylene (Glass Reinforced)
