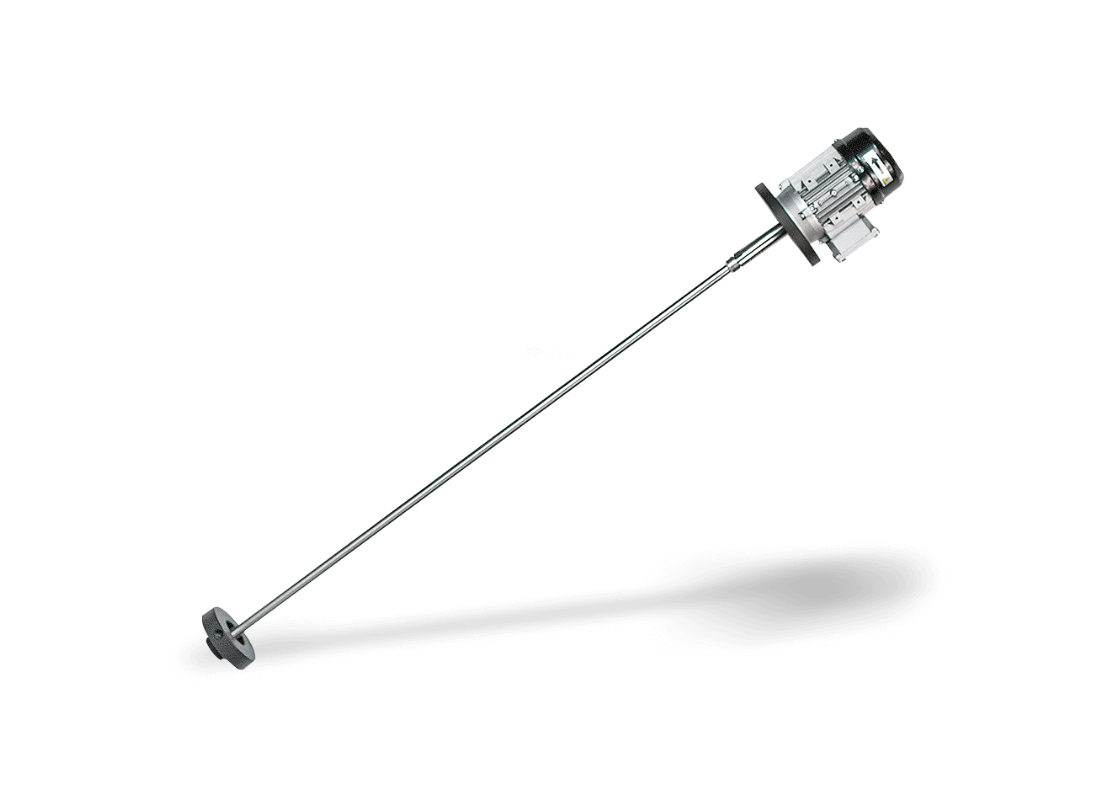

Dositec 60AG-370/3 370W 3 Phase Turbine Agitator – 1.3m Shaft, Up to 3,000L
Free Shipping
Australia Wide
30-Day Returns
Easy Returns
Tax Invoice
For Business Buyers
Expert Advice
1300 107 451
Product Overview
The Dositec 60AG-370/3 Turbine Agitator is a heavy-duty mixing solution designed for chemical dosing tanks, water treatment systems and industrial process applications up to 3,000 litres. Powered by a 370W three-phase motor, it operates at approximately 1,400 rpm and uses a high-efficiency polypropylene turbine to provide consistent liquid circulation throughout the tank.
The agitator is engineered to produce continuous, reliable mixing that helps maintain a homogeneous solution while reducing the risk of sediment settling at the bottom of the tank. Its robust design makes it ideal for mixing water-soluble chemicals, fertilisers and process liquids in demanding industrial and agricultural environments.
Supplied with a 1.3-metre AISI 304 stainless steel shaft, 150mm polypropylene turbine and polypropylene flange mounting assembly, the agitator offers excellent corrosion resistance and long service life. The flange-mounted design provides secure installation and dependable operation for larger chemical storage and process tanks.
Suitable for mixing water-soluble liquids and soluble solids in applications such as fertiliser preparation, chemical dosing, irrigation, water treatment and industrial process tanks.
Key Features
- 370W three-phase electric motor
- 230–430V, 50Hz operation
- Approximately 1,400 rpm
- Suitable for tanks up to 3,000 litres
- Recommended maximum tank diameter of 1.5m
- 1.3m AISI 304 stainless steel shaft
- 20mm shaft diameter
- 150mm polypropylene turbine
- Approximate agitation flow of 6.5m³/h
- Flange-mounted installation
- IP55 motor protection
- Class F motor insulation
- AISI 304 stainless steel fasteners
- Polypropylene flange and turbine
- 12-month manufacturer warranty
Applications
Frequently Asked Questions
What is the Dositec 60AG-370/3 used for?
The Dositec 60AG-370/3 is designed to mix liquid chemicals and water-soluble products in chemical dosing, irrigation, water treatment and industrial process tanks. Its turbine provides consistent circulation to maintain a homogeneous solution and minimise product settling.
What tank size is this agitator suitable for?
This model is suitable for tanks up to approximately 3,000 litres, with a recommended maximum tank diameter of around 1.5 metres.
Does the agitator require three-phase power?
Yes. The 60AG-370/3 uses a 370W three-phase motor designed for 230–430V, 50Hz operation. Electrical installation should be completed by a qualified electrician.
What is the shaft length?
The agitator is supplied with a 1.3-metre AISI 304 stainless steel shaft for larger tank installations.
What materials are used in the wetted components?
The agitator uses an AISI 304 stainless steel shaft, a polypropylene turbine, a polypropylene flange and AISI 304 stainless steel fasteners. These materials are suitable for many common chemical dosing and agricultural mixing applications.
What is the agitation flow rate?
The agitator delivers an approximate agitation flow of 6.5m³/h, providing effective circulation throughout tanks up to 3,000 litres.
What operating speed does the agitator run at?
The motor operates at approximately 1,400 rpm on 50Hz power, delivering efficient and reliable mixing performance.
Does the motor need overload protection?
Yes. Suitable motor overload protection must be installed according to the motor specifications. The motor must also be correctly earthed and wired by a qualified electrician.
