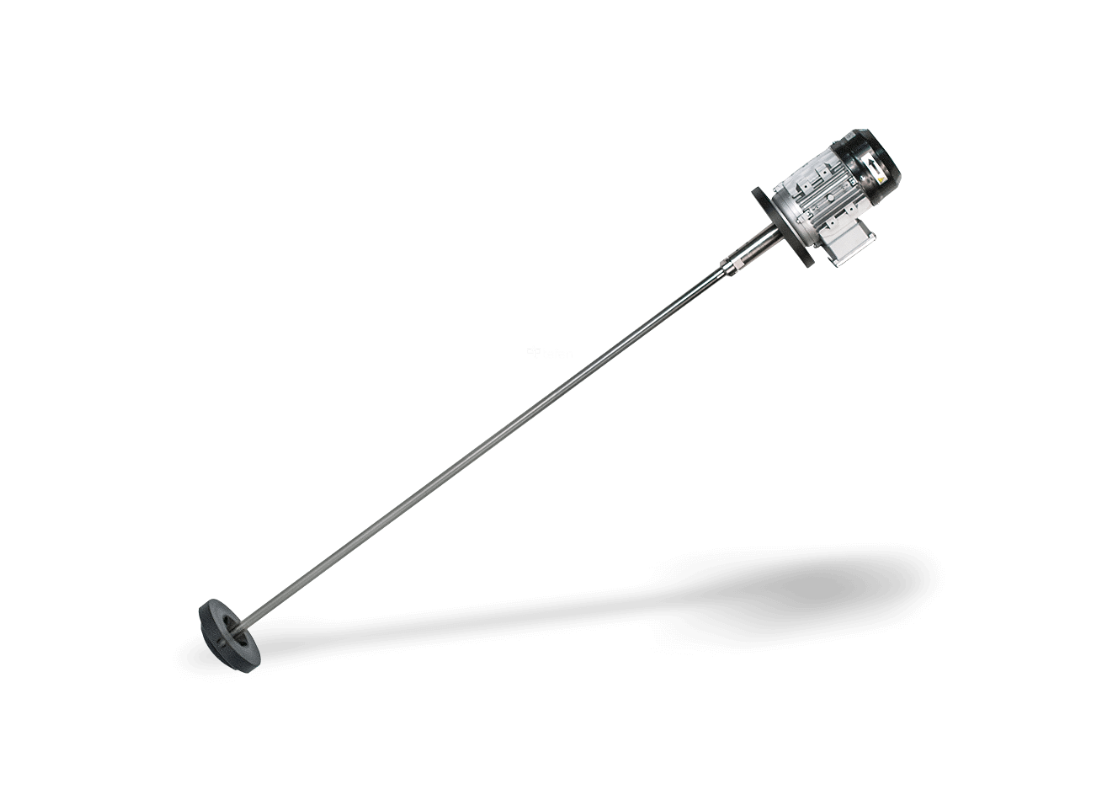

Dositec 60AG-550/1 550W 1 Phase Turbine Agitator – 2.0m Shaft, Up to 7,000L
Free Shipping
Australia Wide
30-Day Returns
Easy Returns
Tax Invoice
For Business Buyers
Expert Advice
1300 107 451
Product Overview

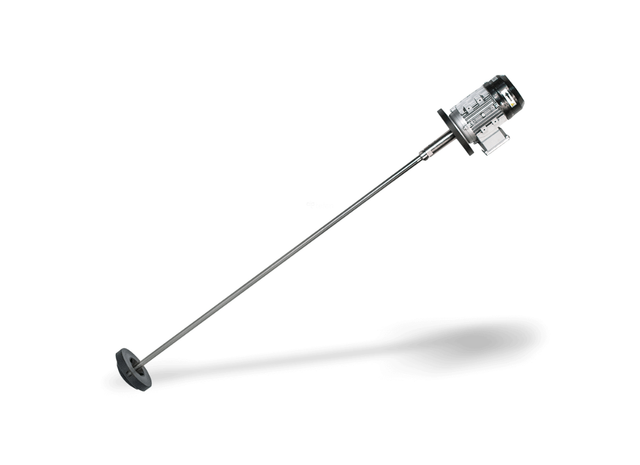

The Dositec 60AG-550/1 Turbine Agitator is a high-capacity mixing solution designed for chemical dosing tanks, water treatment systems and industrial process applications up to 7,000 litres. Powered by a 550W single-phase motor, it uses a large polypropylene turbine to deliver efficient liquid circulation throughout the tank, helping to maintain a consistent mixture in demanding applications.
Designed for larger storage and process vessels, the agitator provides continuous mixing that helps maintain a homogeneous solution while minimising sediment build-up at the base of the tank. Its robust construction makes it ideal for mixing water-soluble chemicals, fertilisers and industrial process liquids where dependable agitation is required.
The agitator is supplied with a 2.0-metre AISI 304 stainless steel shaft, a 180mm polypropylene turbine and a polypropylene flange mounting assembly. AISI 304 stainless steel fasteners provide excellent corrosion resistance, while the heavy-duty flange-mounted design ensures secure installation and reliable long-term operation.
Suitable for mixing water-soluble liquids and soluble solids in applications such as fertiliser preparation, chemical dosing, irrigation, water treatment and industrial process tanks.
Key Features
- 550W single-phase electric motor
- 230V, 50Hz operation
- Approximately 950 rpm
- Suitable for tanks up to 7,000 litres
- Recommended maximum tank diameter of 1.9m
- 2.0m AISI 304 stainless steel shaft
- 25mm shaft diameter
- 180mm polypropylene turbine
- Approximate agitation flow of 8.3m³/h
- Flange-mounted installation
- IP55 motor protection
- Class F motor insulation
- AISI 304 stainless steel fasteners
- Polypropylene flange and turbine
- 12-month manufacturer warranty
Applications
Frequently Asked Questions
What is the Dositec 60AG-550/1 used for?
The Dositec 60AG-550/1 is designed to mix liquid chemicals and water-soluble products in chemical dosing, irrigation, water treatment and industrial process tanks. Its turbine provides powerful circulation to maintain a homogeneous solution and minimise product settling.
What tank size is this agitator suitable for?
This model is suitable for tanks up to approximately 7,000 litres, with a recommended maximum tank diameter of around 1.9 metres.
Does the agitator require single-phase power?
Yes. The 60AG-550/1 uses a 550W single-phase motor designed for 230V, 50Hz operation. Electrical installation should be completed by a qualified electrician.
What is the shaft length?
The agitator is supplied with a 2.0-metre AISI 304 stainless steel shaft for large tank installations.
What materials are used in the wetted components?
The agitator uses an AISI 304 stainless steel shaft, a polypropylene turbine, a polypropylene flange and AISI 304 stainless steel fasteners. These materials are suitable for many common chemical dosing and agricultural mixing applications.
What is the agitation flow rate?
The agitator delivers an approximate agitation flow of 8.3m³/h, providing effective circulation throughout tanks up to 7,000 litres.
What operating speed does the agitator run at?
The motor operates at approximately 950 rpm on 50Hz power, delivering efficient and reliable mixing performance for larger tanks.
Does the motor need overload protection?
Yes. Suitable motor overload protection must be installed according to the motor specifications. The motor must also be correctly earthed and wired by a qualified electrician.
