Product Overview

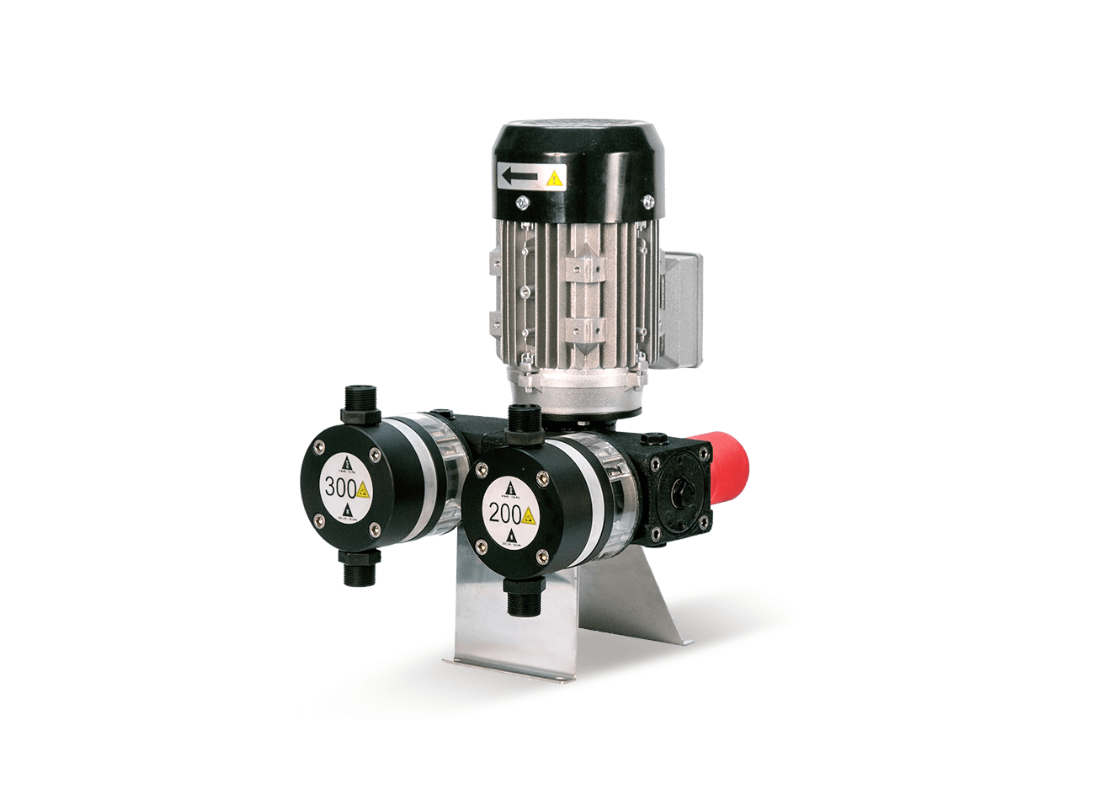

The Dositec MULTIFERTIC® 25 is a modular piston fertiliser injection pump designed for accurate dosing of liquid fertilisers, chemicals and water-soluble nutrient solutions in agricultural irrigation, fertigation and industrial dosing systems. Its modular design allows multiple injection heads to be combined, making it ideal for applications that require flexible dosing capacity and future system expansion.
The pump is powered by an electric motor and uses a precision piston dosing mechanism to deliver accurate and repeatable chemical injection. The modular construction enables one to four injection modules to be assembled on a single drive unit, providing a scalable solution for irrigation systems, greenhouses, horticulture and industrial process applications.
With an injection capacity of up to 25 L/h and a maximum working pressure of 15 bar (217 PSI), the MULTIFERTIC® 25 delivers reliable dosing performance for demanding applications. The pump is available in PP, PVDF and AISI 316 material configurations with FPM seals to provide excellent chemical compatibility and long service life.
Key Features
- Modular piston fertiliser injection pump
- Injection flow up to 25 L/h
- Maximum operating pressure of 15 bar (217 PSI)
- Expandable modular design with up to four injection modules
- Electric motor driven for continuous operation
- Accurate piston dosing technology
- Available in PP, PVDF and AISI 316 material options
- FPM sealing for chemical resistance
- Suitable for liquid fertilisers and chemical dosing
- Designed for fertigation, irrigation and industrial applications
Important Operating Note
The MULTIFERTIC® system is designed as a modular platform that can be configured with one to four injection modules depending on the required dosing capacity. Material selection should be matched to the chemical being dosed to ensure optimum performance and service life.
Applications
Frequently Asked Questions
What is the Dositec MULTIFERTIC® 25 used for?
The Dositec MULTIFERTIC® 25 is a modular piston dosing pump designed for injecting liquid fertilisers, chemicals and nutrient solutions into irrigation and industrial systems.
What is the maximum injection flow of the MULTIFERTIC® 25?
The pump delivers a maximum injection flow of 25 L/h.
What operating pressure can the pump handle?
The MULTIFERTIC® 25 operates at pressures up to 15 bar (217 PSI).
Can additional dosing modules be added?
Yes. The modular design allows one to four dosing modules to be assembled on a single drive unit to increase system capacity.
How does the MULTIFERTIC® 25 operate?
The pump is driven by an electric motor and uses a precision piston dosing mechanism to provide accurate and consistent chemical injection.
What chemicals can be used with the pump?
The pump is suitable for liquid fertilisers, water-soluble nutrients and many industrial chemicals when compatible construction materials are selected.
What materials are available?
The MULTIFERTIC® 25 is available with PP, PVDF and AISI 316 wetted materials along with FPM seals for excellent chemical compatibility.
Is the MULTIFERTIC® 25 suitable for continuous operation?
Yes. It is designed for continuous-duty operation in demanding agricultural and industrial environments.
What connection size does the pump use?
The pump uses 3/4-inch process connections.
Where is the MULTIFERTIC® 25 commonly used?
The MULTIFERTIC® 25 is commonly used in fertigation systems, agricultural irrigation, horticulture, greenhouses and industrial chemical dosing applications.
